Trailer Hitch w/ Brake Control For 11-14 Chevy Silverado GMC Sierra 2500 3500 HD w/ 2" Ball 4" Drop Mount 7-Way Pin Blade RV

Trailer Hitch w/ Brake Control For 11-14 Chevy Silverado GMC Sierra 2500 3500 HD w/ 2" Ball 4" Drop Mount 7-Way Pin Blade RV
Trailer Hitch w/ Brake Control For 11-14 Chevy Silverado GMC Sierra 2500 3500 HD w/ 2" Ball 4" Drop Mount 7-Way Pin Blade RV
$398.28
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75707 74682 53 63847 63845 5535

Applies to this product only

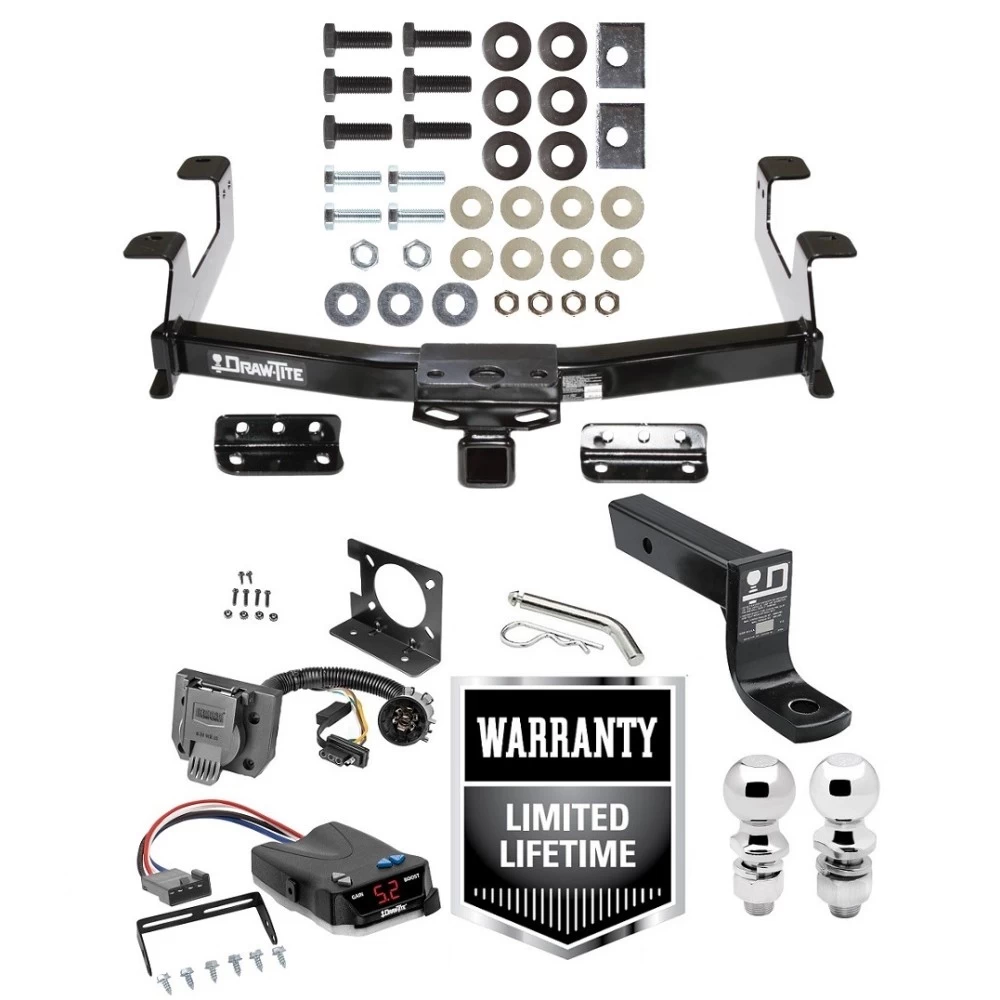

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
4" Drop Ball-Mount w/ Pin/Clip
2" and 2-5/16" Chrome Balls
Installation Hardware
Installation Instructions


Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up

Fits The Following Vehicles

​​2011 - 2014    Chevrolet, Silverado 2500 HD, All Styles
2011 - 2014    Chevrolet, Silverado 3500 HD, All Styles
2011 - 2014    GMC, Sierra 2500 HD, All Styles
2011 - 2014    GMC, Sierra 3500 HD, All Styles

Trailer Hitch Specs:
Part Number 75707
Brand Draw-Tite
Finish Black Powdercoat
Class 4
Receiver size opening 2"
Max gross trailer weight 8,000 lbs
Max GTW w/ weight distribution 12,000 lbs
Max Tongue Weight 800/1,200 lbs
Warranty Lifetime
Installation Instructions




Direct Plug & Play Wiring Kit
Part Number 74682
Brand Reese
Features
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
  • For quick connection to 4-Flat or 7-Way trailer connectors
  • Includes mounting bracket and hardware
  • Easily adapts to existing vehicle 7-Way plug
  • Ability to tow trailers with different style trailer connectors
  • Durable plastic shell
  • Weather tight seal
  • Attractive point-of-purchase packaging
Warranty 1 Year
Installation Instructions

Brake Control Specs:


Part Number 5535
Brand Draw-Tite
Type Proportional
Axles 1 to 4 axle trailers
Warranty Lifetime
Features: Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with “up-front” buttons for easy access to Output and Boost.
  • Boost feature gives the ability to apply more initial trailer braking
  • Reverse battery protection
  • No level adjustment necessary
  • Diagnostics features incorporated in LED Display
  • Plug and Play feature allows for quick and easy connection
Installation Instructions
Warranty Lifetime

Ball Mount Specs:

Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 4" From inside top of hitch opening
Rise 2-3/4" from top of inside of hitch opening
Warranty Lifetime

2" Hitch Ball Specs:



Part Number 63845
Brand Draw-Tite
Size 2" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

2-5/16" Hitch Ball Specs:



Part Number 63847
Brand Draw-Tite
Size 2-5/16" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years: 11 12 13 14 2011 2012 2013 2014
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 8,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 12,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 800 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
