Product Details
- Brand: Reese Towpower
- Model: 44576 118650 23 63816

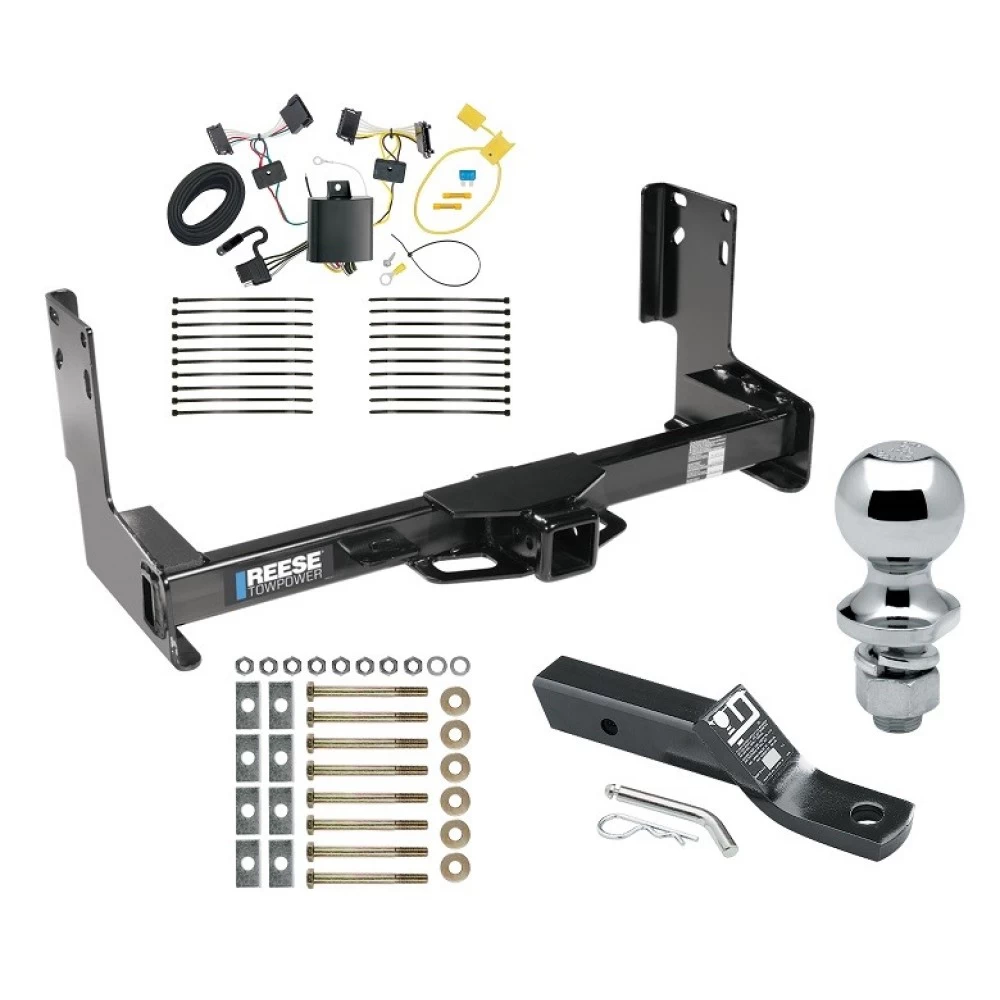

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 07-13 Mercedes-Benz Freightliner Sprinter 07-09 Dodge Sprinter 2500 3500 Complete Package w/ Wiring and 1-7/8" Ball Install Notes

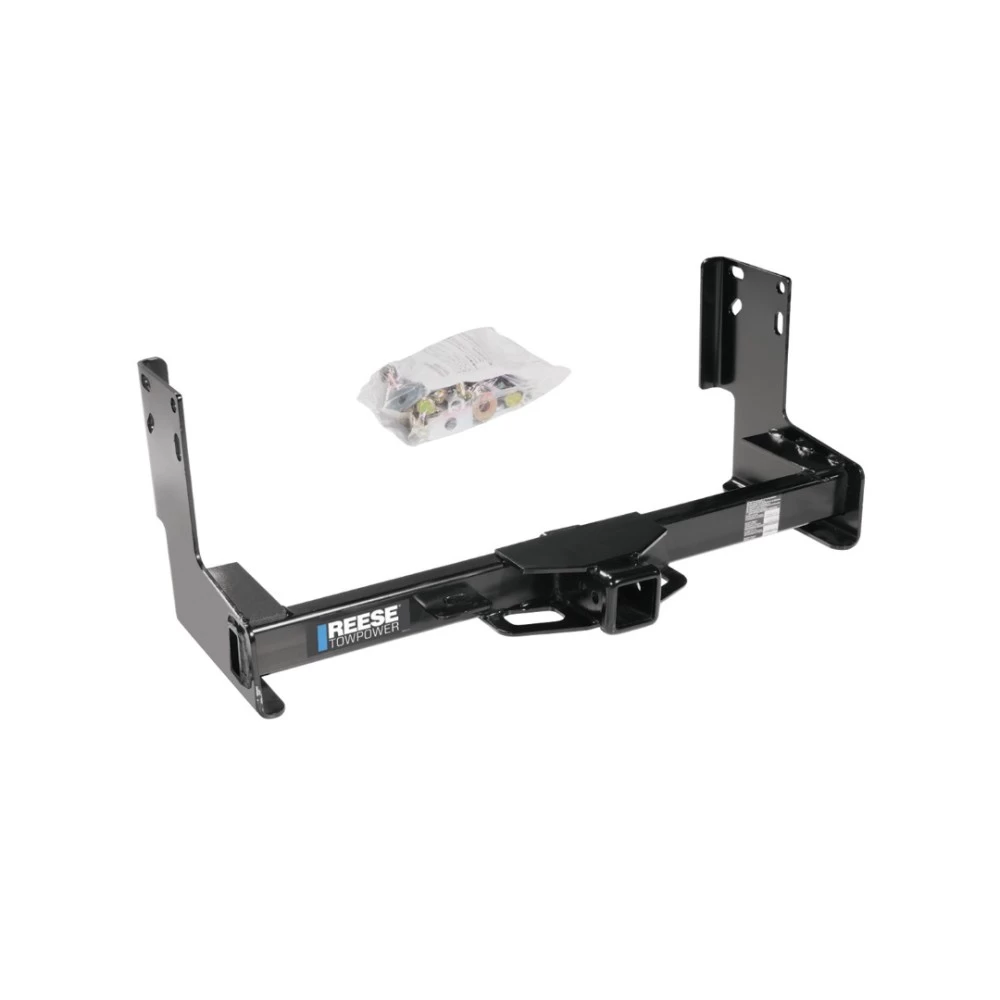

Installation Instructions for Dodge Sprinter, Freightliner Sprinter, and Mercedes Sprinter
(Van and Cab & Chassis Models)
Part Numbers:
- 75549
- 87441
- 44576
- 75239 UH
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
For Sprinter Van Models:
-
Remove Tie-Down Hook:
- Detach the tie-down hook from the passenger side frame rail.
- Return the tie-down hook and fasteners to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position.
- Install the fasteners as shown:
- Insert a hex bolt and lock washer through the round hole in the hitch bracket.
- Insert hex bolts and toothed washers through the oblong slots in the hitch bracket, on both sides.
For Sprinter Cab & Chassis Models:
-
Remove Wheel Chock Bracket (if present):
- Remove the wheel chock bracket from the driver side frame rail and retain it for reinstallation.
- Discard the bolts.
-
Position the Hitch:
- Raise the hitch and the wheel chock bracket into position.
- Install the fasteners as shown:
- Insert a hex bolt and lock washer through the round hole in the hitch bracket.
- Insert hex bolts and toothed washers through the oblong slots in the hitch bracket, on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 x 1.75 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (8) Hex Bolts M12 x 1.75 x 120mm CL8.8
- (8) 1/4” x 1” x 2” Spacer Blocks
- (6) 1/2” Toothed Washers
- (8) Hex Nuts M12 x 1.75
- (2) 1/2” Lock Washers
Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Note:
- This hitch is not compatible with vehicles that have a 30-3/8” wide frame measured outside to outside.
Installation Instructions for T-Connector Adapter for Dodge Sprinter, Mercedes Sprinter and Freightliner Sprinter
Part Numbers:
- 118650
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
- Torx 25 and Torx 30 Drivers
Step-by-Step Instructions:
-
Prepare the Rear Area:
- Open the rear doors and locate the plastic covers at the rear of the taillights on both sides.
- Using a trim panel remover, carefully remove the three plastic covers on each side. The first cover exposes the taillight harness; the two upper covers assist with wire routing.
-
Locate the Taillight Wiring Harness:
- On both the driver’s and passenger’s sides, locate the vehicle's taillight wiring harness.
- Disconnect the connectors carefully to avoid breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Mount the Black Box:
- Find a flat surface near the taillight area inside the vehicle.
- Mount the T-One® T-Connector’s black box module to prevent damage or rattling.
-
Driver-Side T-Connector Installation:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors.
- Ensure the connectors are fully inserted with locking tabs secured.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire through the inner channel to the roof area of the vehicle.
- Follow the existing wiring and route the wire to the passenger side. Secure it using the provided cable ties, concealing the wire behind the plastic covers where possible.
-
Passenger-Side T-Connector Installation:
- Route the wires down through the holes exposed earlier and repeat Step 4 for the passenger side using the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector on the driver’s side.
- Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
- Route the wire through the channel to the roof area and then forward toward the driver’s seat, concealing the wire behind plastic covers where possible. Secure with cable ties.
-
Route the Wire to the Battery:
- Continue routing the wire behind the trim panel next to the driver’s seat and down to the floor of the vehicle.
- Access the vehicle battery beneath the driver’s side floor area by removing the trim threshold, floor covering, and metal battery cover.
-
Battery Connection:
- Disconnect the negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal. Secure it to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the supplied yellow butt connector.
- Reconnect the negative (-) battery cable and install the 15-amp fuse into the fuse holder.
-
Secure Wiring:
- Use the provided cable ties to secure the remainder of the T-One® T-Connector harness, avoiding areas that could pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the plastic covers, battery cover, floor coverings, and all other components removed during installation.
-
Test the Installation:
- Verify functionality using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Always follow safety precautions and wear safety glasses during installation.
Manufacturer Notes:
- Store the 4-flat connector in the rear cargo area when not in use.
- Refer to the vehicle owner’s manual for additional details.
