- Stock: In Stock
- Brand: Reese
- Model: 06946 36061 118658 63810

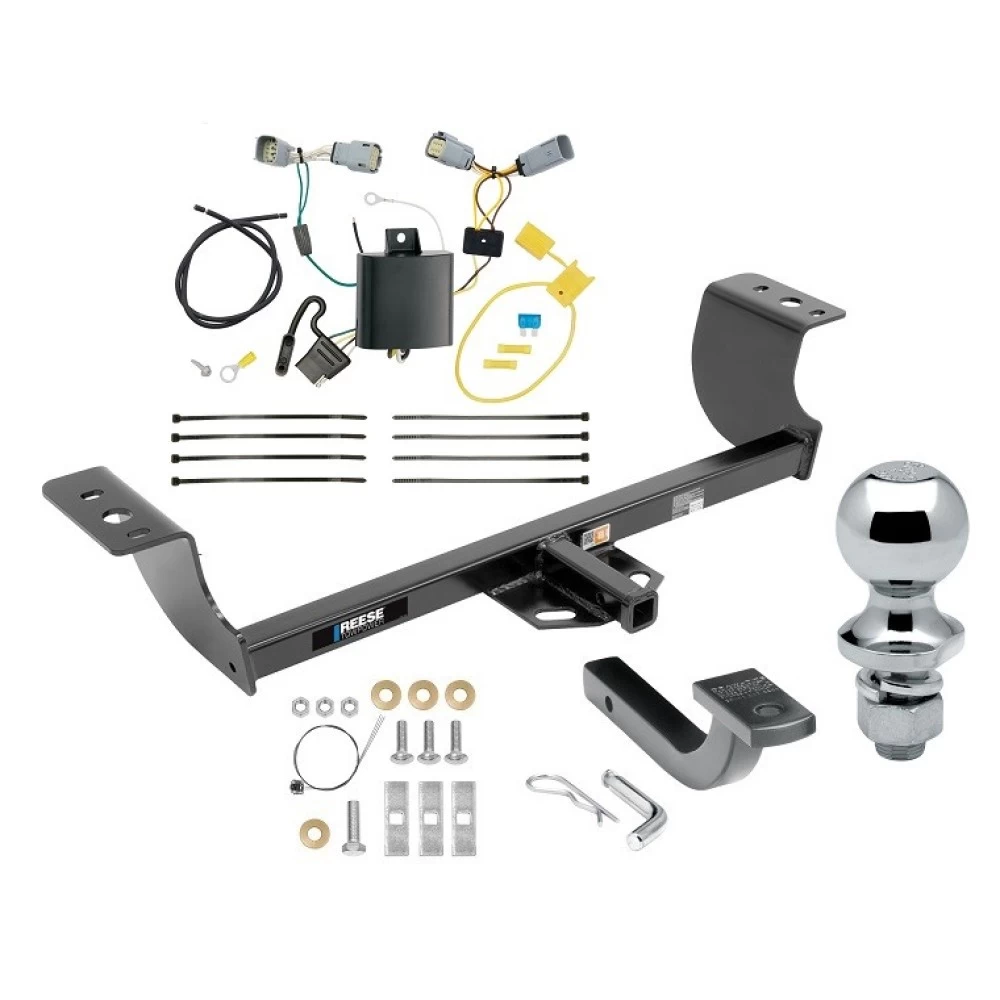

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2015 - 2023 Chrysler, 300, All Styles
Trailer Hitch Specs:
| Part Number | 06946 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

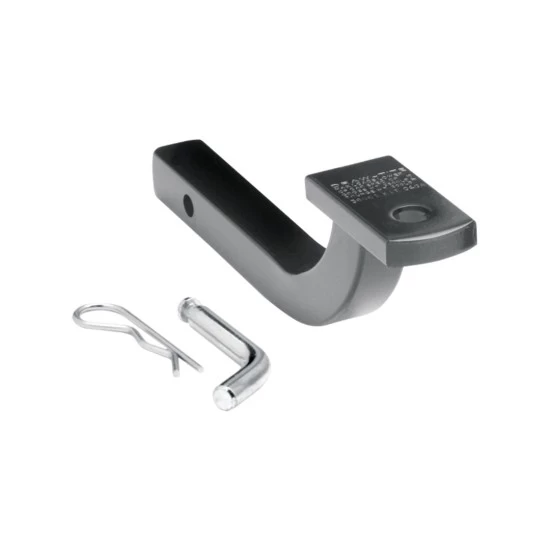

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Rise | 3-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |

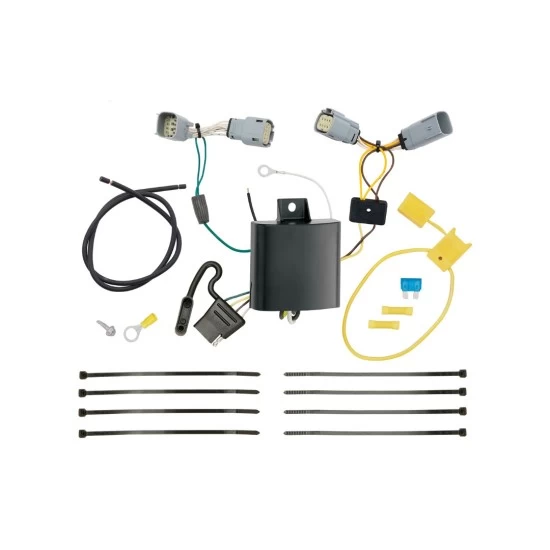

Wiring Kit Specs:
| Part Number | 118658 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 2015 2016 2017 2018 2019 2020 2021 2022 2023
