Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 18-21 Chevrolet Equinox Premier, Except Models w/1.6L Diesel Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
$341.63
  • Stock: In Stock
  • Brand: Reese
  • Model: 06180 36051 118759 63820 63810 580407 2211

Applies to this product only

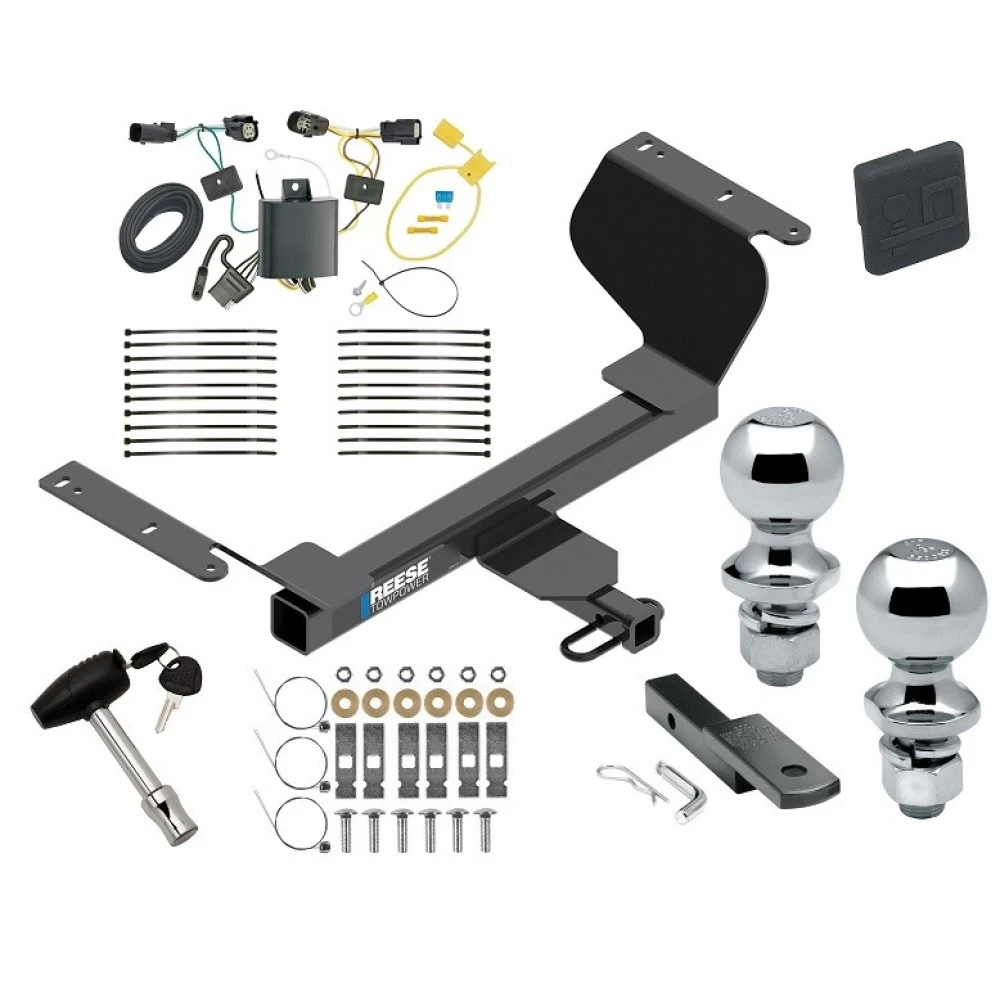

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
  Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions



Fits The Following Vehicles:


2018 - 2021  Chevrolet, Equinox, Premier, Except Models w/1.6L Diesel

Trailer Hitch Specs:
Part Number 06180
Brand Reese
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 350 lbs
Warranty Lifetime
Installation Instructions



Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)


Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 7" From Center of Pin Hole to Center of Ball Hole
Rise 5/8" From inside top of hitch opening
Towing Capacity in Rise Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Drop 1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime



Wiring Kit Specs:

Part Number 118759
Brand Tekonsha
Warranty 1 Year
Installation Instructions


Hitch Ball Specs:

Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime


Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Questions or Comments? Call 702-374-8999


Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 18 19 20 21 2018 2019 2020 2021

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 350 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
