Trailer Hitch w/ Wiring For 96‑99 Chevy Express GMC Savana 1500 2500 3500 Class 5 2" Tow Receiver Reese Tekonsha

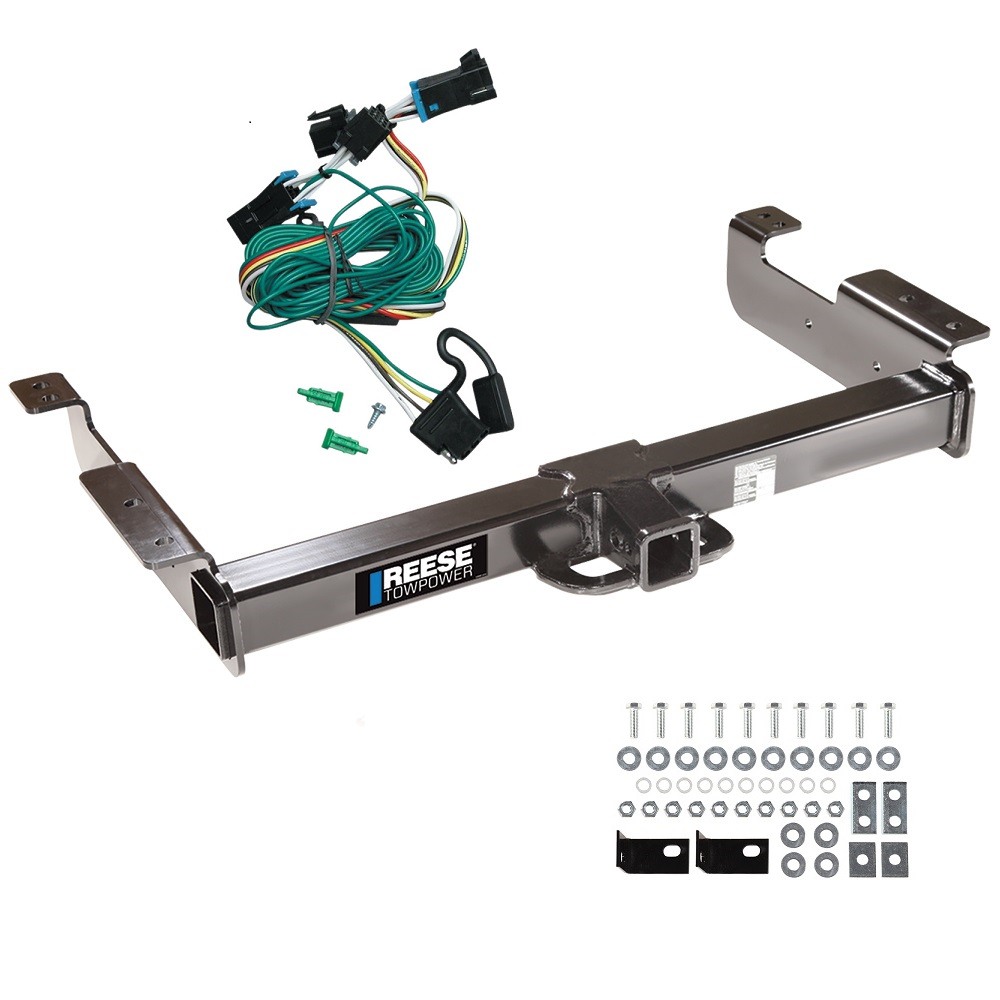

Model: 96946 118335Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996-1999 Chevrolet, Express 1500, All Styles
1996-1999 Chevrolet, Express 2500, All Styles
1996-1999 Chevrolet, Express 3500, All Styles
1996-1999 GMC, Savana 1500, All Styles
1996-1999 GMC, Savana 2500, All Styles
1996-1999 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 96946 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,500/1,300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118335 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
