Trailer Hitch Wiring Harness Kit For 16‑24 Subaru Crosstrek 13‑15 XV Except Hybrid 09‑25 Forester 10‑25 Outback Wagon Plug & Play

Name: Subaru Trailer Wiring Harness | Tekonsha 118467
Brand: Tekonsha
Price: 43.73 USD
Availability: InStock

Model: 118467

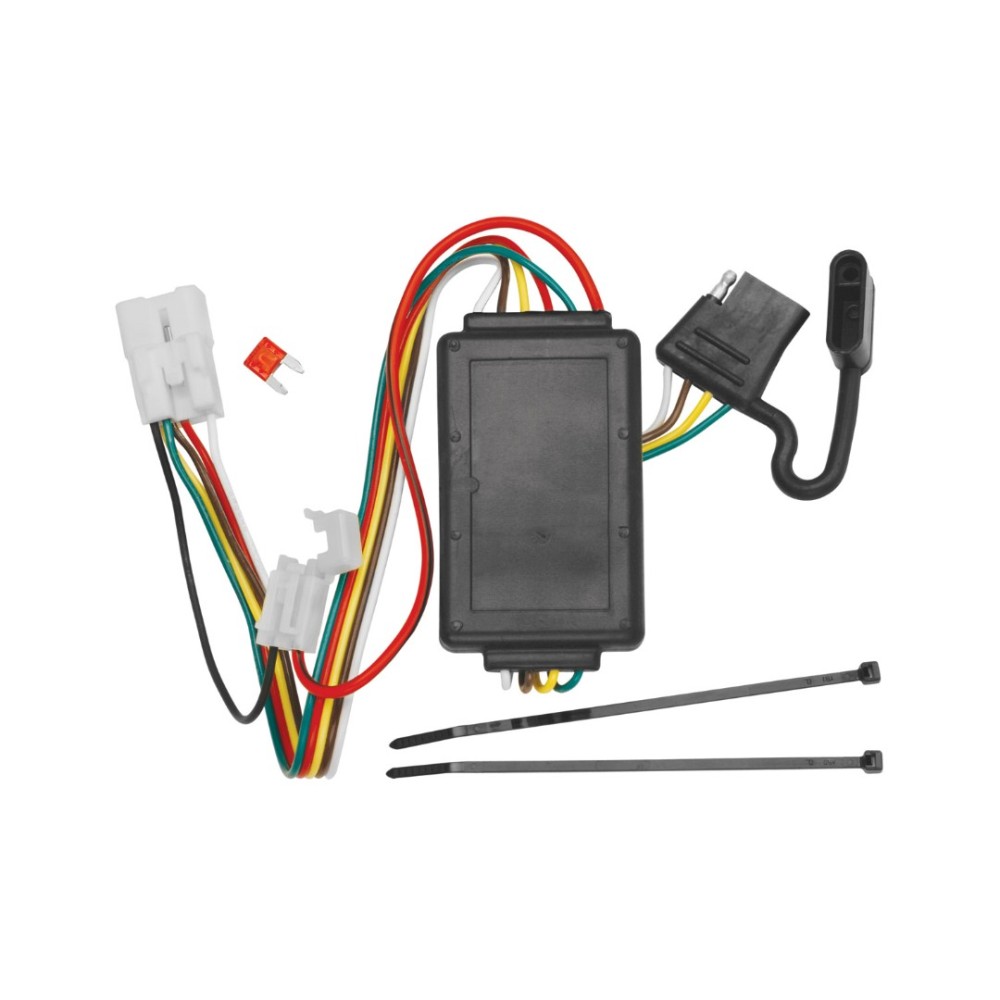

Includes Everything Pictured:
Wiring Harness (Plug & Play)
Installation Instructions

Fits The Following Vehicles:

2016 - 2024 Subaru, Crosstrek, Except Hybrid
2009 - 2025 Subaru, Forester, All Styles
2010 - 2025 Subaru, Outback, Wagon, Except Sport
2013 - 2015 Subaru, XV Crosstrek, Except Hybrid

Wiring Kit Specs:

Part Number	118467
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:
09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2023 2025

See Full Description

$43 ⁷³ $53.60 18% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$53.60 $43 ⁷³

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $10.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118467
UPC: 016118071948
Includes: T-One T-Connector Custom Harness

Compatibility Chart

Specification
Circuit Protected	Yes
Hardware Included	Yes
Harness Type	4-Way Flat (Vehicle Side)
Terminal Quantity	4
Universal Or Specific Fit	Specific Fit
Wire Colors	Brown, Green, Yellow, White
Wire Quantity	4 Wires

Be the first to ask a question.

File	Size
Trailer Hitch Wiring Instructions	2.69MB	Download

Description

Wiring Kit Specs:

Part Number	118467
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Tags: 118467 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024 , 2025 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , Subaru , Crosstrek , Except , Hybrid , Tekonsha , Trailer , Wiring , Harness

Get Expert Help

Trailer Hitch Wiring Harness Kit For 16-24 Subaru Crosstrek 13-15 XV Except Hybrid 09-25 Forester 10-25 Outback Wagon Plug & Play Install Notes

Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)

Part Numbers:

118467

Tools Required:

Trim Panel Remover
Test Probe

Step-by-Step Instructions:

Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the cargo nets and cargo floor hatch to access the spare tire area.
Locate the Tow Plug Housing:
- 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
- 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
- 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
- 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
- Ensure the connectors are fully inserted with the locking tabs engaged.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
Note:
- Store the 4-flat connector in the spare tire compartment when not in use.
Warning:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
  - Max. stop/turn light: 1 per side (2.1 amps)
  - Max. tail lights: (5.6 amps)

Safety Notes:

Always follow all warnings and instructions included with the product before beginning installation.
Wear safety glasses and use all safety precautions during installation.

Manufacturer Notes:

Refer to the vehicle owner’s manual and instruction sheet for additional details.
