Trailer Tow Hitch For 00-04 Nissan Xterra All Styles Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 00‑04 Nissan Xterra All Styles Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75107 63134 63100

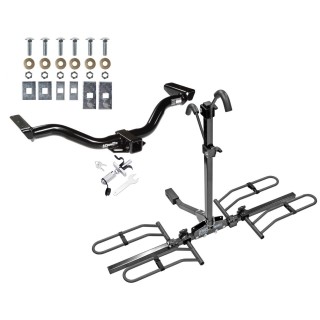

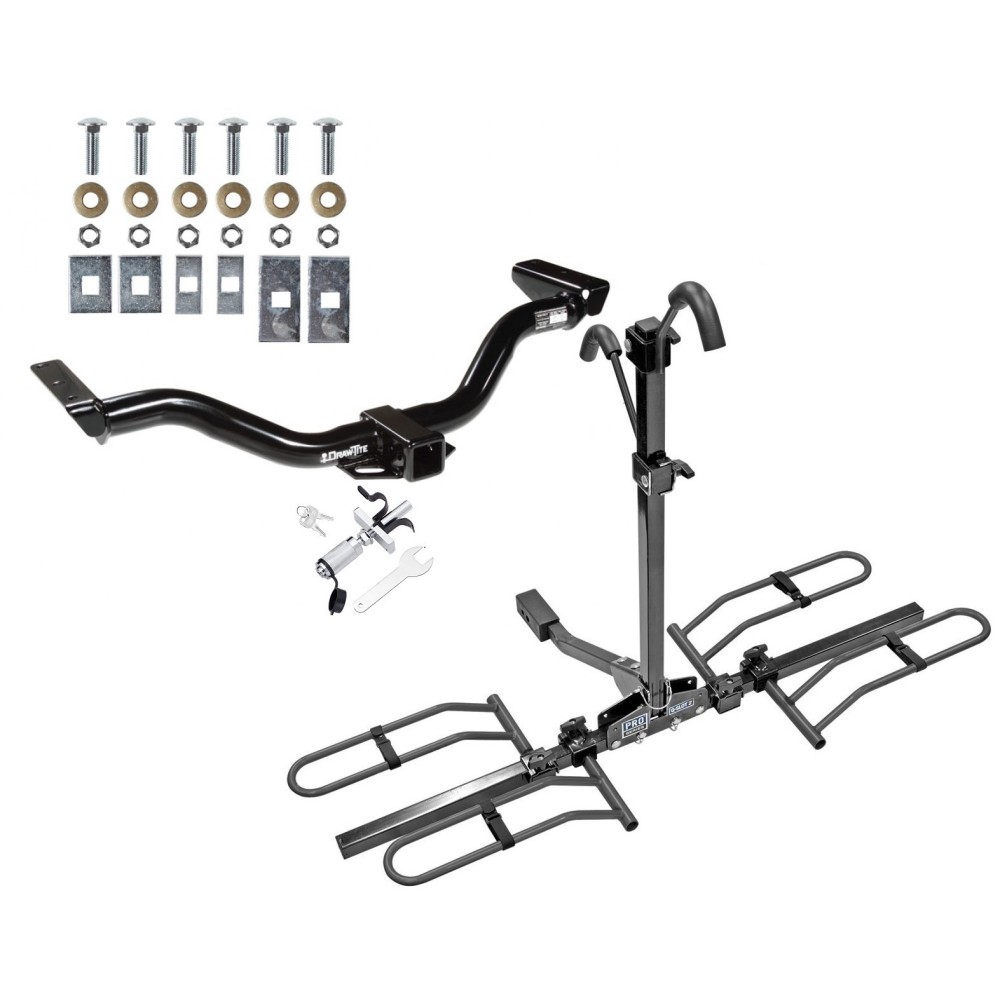

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2000 - 2004 Nissan, Xterra, All Styles

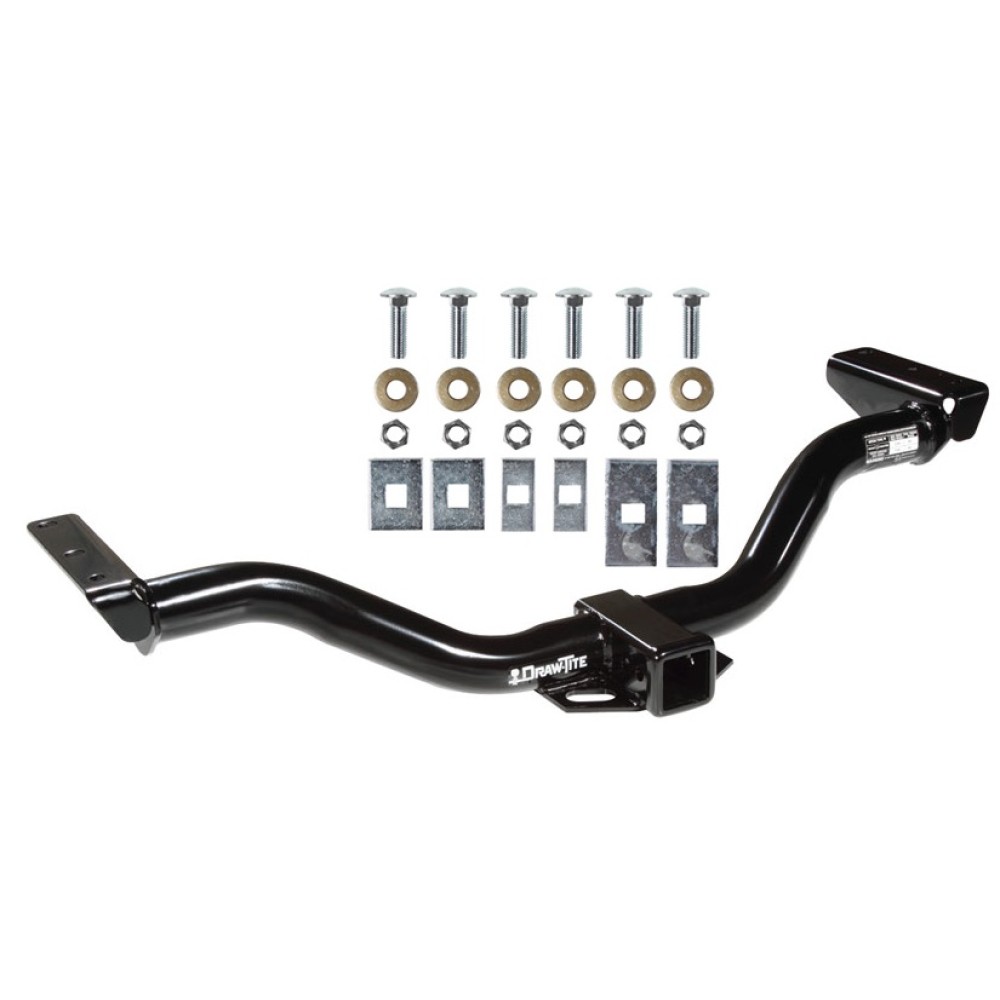

Trailer Hitch Specs:

Part Number	75107
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	5,500 lbs
Max Tongue Weight	350/550 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 00 01 02 03 04 2000 2001 2002 2003 2004

See Full Description

$473 ⁶⁰ $758.82 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$758.82 $473 ⁶⁰

Pay in 4 interest-free installments of $118.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $118.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75107 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	5,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	550 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75107
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	5,500 lbs
Max Tongue Weight	350/550 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Tags: 75107 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 00-04 , Nissan , Xterra , All , Styles , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 00 , 01 , 02 , 03 , 04 , 2000 , 2001 , 2002 , 2003 , 2004

Get Expert Help

Trailer Tow Hitch For 00-04 Nissan Xterra All Styles Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Nissan Xterra

Part Numbers:

75107
44717
78193 U-Haul

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrenches: 7/8"

Step-by-Step Instructions:

Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
Install Fasteners:
- Secure the hitch using the provided hardware kit:
  - Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).

Torque Specifications:

1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)

Hardware List:

(6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
(2) Spacer Blocks, 1/4" x 1" x 2"
(2) Spacer Blocks, 1/4" x 1-1/2" x 2"
(2) Spacer Blocks, 1/4" x 1-1/2" x 3"
(6) Conical Toothed Washers, 1/2"
(6) Hex Nuts, 1/2"-13 GR2

Safety Notes:

Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
Replace any damaged hitch or ball immediately.
If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)

Additional Notes:

This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
Ensure all fasteners are properly torqued before towing.
