Trailer Tow Hitch For 00-04 Subaru Outback Legacy Platform Style 2 Bike Rack Hitch Lock and Cover

Trailer Tow Hitch For 00‑04 Subaru Outback Legacy Platform Style 2 Bike Rack Hitch Lock and Cover

Model: 36284 63134 580407 2211

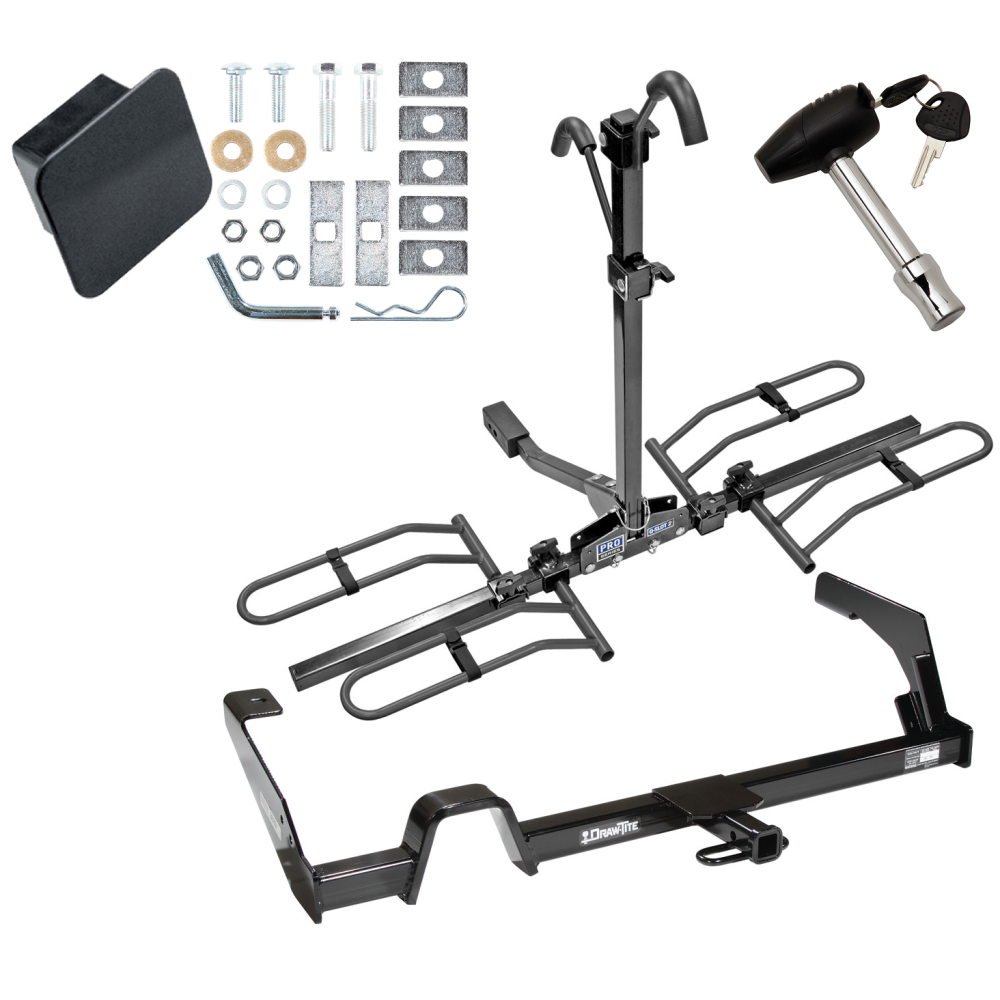

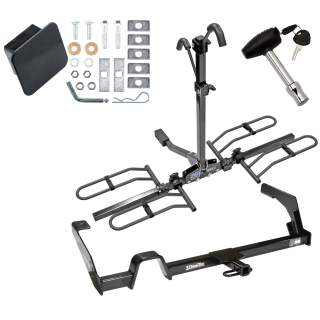

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2000 - 2004   Subaru, Legacy, Sedan, Except Outback
2000 - 2004   Subaru, Legacy, Wagon, Except Outback
2000 - 2004   Subaru, Outback, Sedan, Except Sport
2000 - 2004   Subaru, Outback, Wagon, Except Sport

Trailer Hitch Specs:

Part Number	36284
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year
