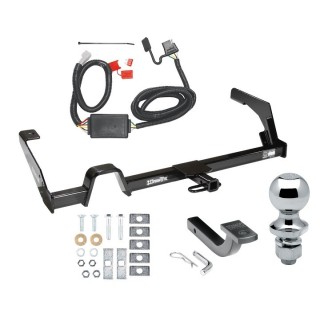

Reese Trailer Tow Hitch For 00‑04 Subaru Outback Wagon Except Sport Complete Package w/ Wiring Draw Bar and 1‑7/8" Ball
Model: 06287 36061 118461 63810Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2004 Subaru, Outback, Wagon, Except Sport
Trailer Hitch Specs:
| Part Number | 06287 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Rise | 3-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty |
Limited Lifetime |
Wiring Kit Specs:
| Part Number | 118461 |
| Brand | Tekonsha |
| Warranty | 1 Year |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Partial list of fitment years: 00 01 02 03 04 2000 2001 2002 2003 2004
$363 08 $558.69 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$558.69 $363 08
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $90.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06287 36061 118461 63810
- Includes: Class 2 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 00-04 Subaru Outback Wagon Except Sport Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for Subaru Legacy Sedan, Subaru Legacy Wagon, and Subaru Legacy Outback
Part Numbers:
- 06287
- 36284
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 12mm, 11/16", 3/4", 7/8"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Carbon Canister:
- Lower the carbon canister and bracket from the passenger-side frame rail.
-
Prepare Frame Rails:
- Remove the four (4) plastic caps from the bottom of the frame rails.
- Fishwire the carriage bolts and blocks through the access holes in the bottom of the frame as shown in Figure 1.
Note:
- On the driver side, the side bracket attaches to the outboard side of the tie-down bracket.
- On the passenger side, the side bracket attaches to the inboard side of the tie-down bracket.
-
Install Hitch:
- Raise the hitch into position.
- Loosely install hex nuts and conical toothed washers onto the forward-most fasteners.
- Install hex bolts and blocks as shown in Figure 1.
Note:
- On the passenger side, place an additional block between the hitch and the tie-down bracket (see Figure 2).
-
Reinstall Components:
- Reinstall the large plastic caps into the access holes removed in Step 2.
- Reattach the carbon canister and bracket.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) with a torque wrench.
- Tighten all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N*m).
Hardware List:
- (2) Hex Bolt, 1/2"-13 x 2 1/4" GR5
- (2) Carriage Bolt, 7/16"-14 x 1 1/2" GR5
- (5) Spacer, 1/4" x 1" x 2"
- (2) Spacer, 1/4" x 1" x 3"
- (2) Lock Washer, 1/2"
- (2) Conical Toothed Washer, 7/16"
- (2) Hex Nut, 1/2"-13
- (2) Hex Nut, 7/16"-14
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
- Complies with V.E.S.C. Regulation V-5 and SAE J684 standards.
Additional Notes:
- Optional Drawbar Kit: 36061
- Drawbar for Legacy Outback Only: 36053
- Fastener Kit: K36284
Installation Instructions for T-Connector Adapter for Forester Outback Tribeca
Part Numbers:
- 118461
Wiring Access Location:
- Inside the trunk/hatch area of the vehicle:
- For some vehicles, the trailer plug is behind the interior access panel on the driver’s side near the taillamp assembly.
- On others (e.g., Subaru Forester), it is located in the spare tire area on the passenger’s side under the threshold or carpet panel.
Tools Required:
- Trim panel remover.
- Test probe.
Step-by-Step Instructions:
-
Open the vehicle’s trunk/hatch.
- Locate the vehicle’s trailer plug harness as described above.
-
Remove the tape on the vehicle’s plug and insert the T-Connector into the vehicle’s trailer plug harness.
-
Secure the remaining T-Connector harness using the cable ties provided.
- Avoid areas that could pinch, cut, or melt the wire.
-
On some models, route and store the T-Connector in either the spare tire well or the storage compartment next to the vehicle’s access panel.
-
Test the installation with a test light or trailer.
- Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (4.2 amps).
- Specifications:
Hardware List:
- T-Connector adapter.
- Cable ties.
Safety Notes:
- All connections must be complete for the T-Connector to function properly.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer rating or the unit specifications.
- Secure the T-Connector harness properly to prevent damage or rattling.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
- Read the vehicle’s owner’s manual and the instruction sheet for additional information.
