Trailer Tow Hitch For 00-04 Toyota Avalon w/ 2" Adapter and Pin/Clip

Trailer Tow Hitch For 00‑04 Toyota Avalon w/ 2" Adapter and Pin/Clip

Model: 36293 80303 63241

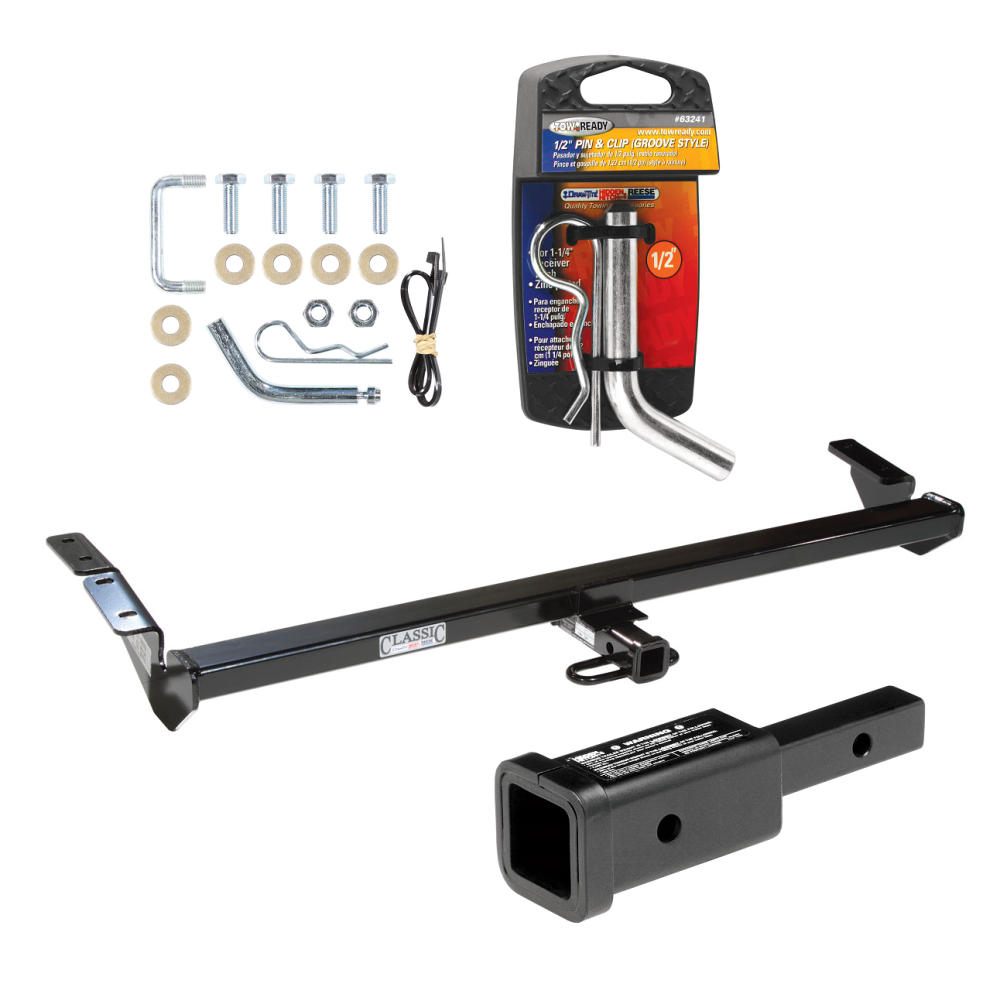

Includes Everything Pictured:
Custom Fit Trailer Hitch
Trailer Hitch Adapter
Trailer Hitch Pin and Clip
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2000 - 2004 Toyota, Avalon, All Styles

Trailer Hitch Specs:

Part Number	36293
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Trailer Hitch Adapter:

Part Number	80303
Fits	1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Overall Length	10-3/4"
Pinhole to Pinhole	6"
Towing Capacity	3,500 lbs (Reduces Hitch Tow Rating by 50%)
Converts Receiver Opening 1-1/4" to 2"
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 00 01 02 03 04 2000 2001 2002 2003 2004

See Full Description

$306 ²³ $490.89 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$490.89 $306 ²³

Pay in 4 interest-free installments of $76.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $76.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 36293 80303 63241
Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Adapter, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	Yes
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	36293
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Trailer Hitch Adapter:

Part Number	80303
Fits	1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Overall Length	10-3/4"
Pinhole to Pinhole	6"
Towing Capacity	3,500 lbs (Reduces Hitch Tow Rating by 50%)
Converts Receiver Opening 1-1/4" to 2"
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 36293 , 80303 , 63241 , Draw-Tite , Trailer , Tow , Hitch , 00-04 , Toyota , Avalon , 2" , Adapter , and , Pin/Clip , 00 , 01 , 02 , 03 , 04 , 2000 , 2001 , 2002 , 2003 , 2004

Get Expert Help

Trailer Tow Hitch For 00-04 Toyota Avalon w/ 2" Adapter and Pin/Clip Install Notes

Installation Instructions for Toyota Avalon

Part Numbers:

36293
06295
90195

Wiring Access Location:

PC3, PC4

Tools Required:

Drill with 1/2" Bit
Wrenches: 11/16", 14mm, 17mm
Hitch requires a 1/2" pin and clip.

Step-by-Step Instructions:

Prepare Vehicle Frame:
- Remove tie-down brackets and bolts from each side of the vehicle frame.
- Return tie-down brackets to the vehicle owner.
- Remove (2) 10mm bolts holding the exhaust hanger to the vehicle.
Install Hitch:
- Raise the hitch into position above the fascia tab.
- Install (2) 10mm bolts and conical toothed washers as shown in Figure 1.
For Exhaust Hanger Configuration:
- Install the 10mm bolts with conical toothed washers supplied with the hitch.
- Ensure the spacer plate is sandwiched between the exhaust hanger and the frame.
Drill Additional Holes:
- Using the hitch as a template, drill (2) 1/2" holes in the vehicle frame as shown in Figure 1.
Secure Fasteners:
- Insert M10 x 1.25 x 30mm CL8.8 bolts with conical toothed washers through the drilled holes, as shown in Figure 1.
- Tighten all fasteners to the specified torque values:
  - Tighten M10 bolts to 38 lb-ft (52 N*m).
  - Tighten 3/8"-16 U-bolt nuts to 25 lb-ft (34 N*m).
Reinstall Components:
- Raise the exhaust back into position and secure with the original fasteners.
- Reattach the fascia tab and secure all wiring with cable ties to the cross member.

Hardware List:

(2) M10 x 1.25 x 30mm CL8.8 Bolts
(2) Conical Toothed Washers
(2) 3/8"-16 U-bolts
(4) 3/8"-16 Nuts
Spacer Plate (to be sandwiched between exhaust hanger and frame)

Safety Notes:

Use only the drawbar shown for correct bumper clearance and height.
The drawbar must be used in the RISE position only.
Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
Replace any damaged hitch or ball immediately.
Do not exceed the vehicle manufacturer's towing ratings.
