Trailer Tow Hitch For 00-06 Toyota Tundra without Factory Towable Bumper Basket Cargo Carrier Platform Hitch Lock and Cover

Trailer Tow Hitch For 00‑06 Toyota Tundra without Factory Towable Bumper Basket Cargo Carrier Platform Hitch Lock and Cover

Model: 75105 63153 63201 7010

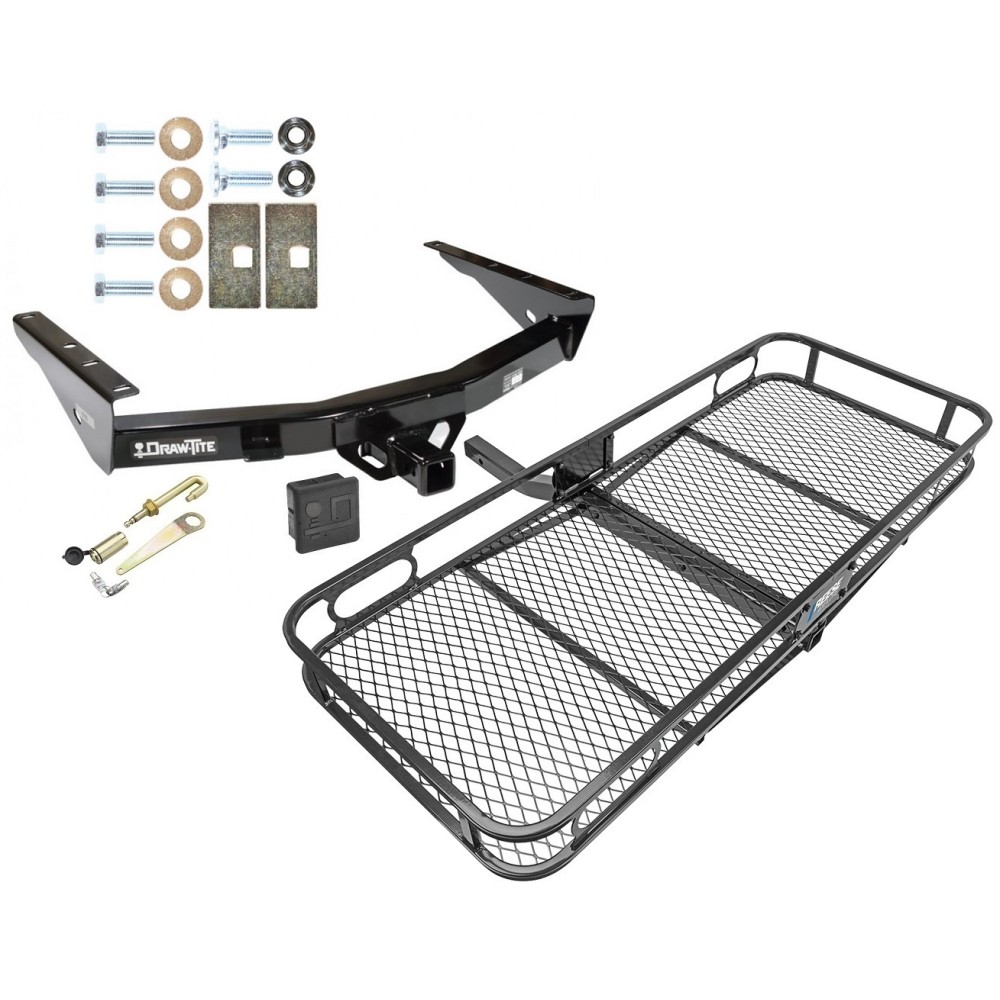

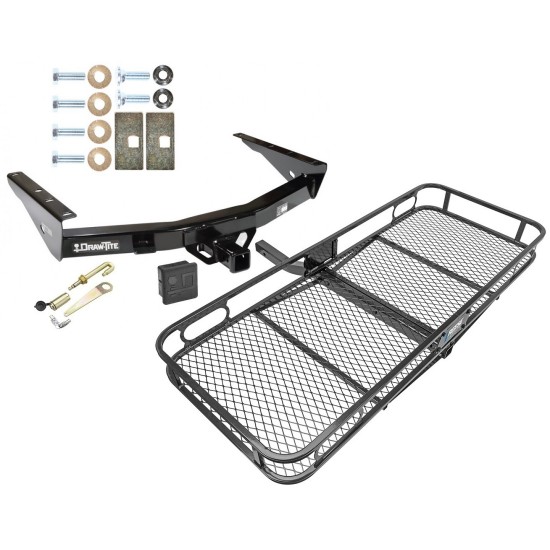

Includes Everything Pictured:
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2000 - 2006 Toyota, Tundra, without Factory Towable Bumper

Trailer Hitch Specs:

Part Number	75105
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006

See Full Description

$546 ¹⁵ $883.46 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$883.46 $546 ¹⁵

Pay in 4 interest-free installments of $136.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $136.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75105 63153 63201 7010
Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	7,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	750 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	75105
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

Questions or Comments? Call 702-374-8999

Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006

Tags: 75105 , 63153 , 63201 , 7010 , Draw-Tite , Trailer , Tow , Hitch , 00-06 , Toyota , Tundra , without , Factory , Towable , Bumper , Basket , Cargo , Carrier , Platform , Hitch , Lock , and , Cover , 00 , 01 , 02 , 03 , 04 , 05 , 06 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006

Get Expert Help

Trailer Tow Hitch For 00-06 Toyota Tundra without Factory Towable Bumper Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes

Installation Instructions for Toyota Tundra

Part Numbers:

33049
75105
87588

Installation Time:

Not specified.

Tools Required:

3/4” Socket
18mm Socket
Torque Wrench

Step-by-Step Instructions:

Position Receiver:
- Lift the receiver up to the frame of the vehicle.
- Locate the large holes in the receiver brackets over the rivet heads in the frame.
Install Hex Bolts:
- Place four (4) 1/2” serrated washers over four (4) 12mm hex bolts.
- Insert the bolts up through the receiver brackets and into the weld nuts in the frame.
Install Carriage Bolts:
- Place two (2) bolt plates over two (2) 1/2” carriage bolts.
- Insert the bolts down through the frame and the receiver brackets.
- Secure each bolt with a 1/2” serrated washer and 1/2” lock nut.
Tighten Fasteners:
- Torque the 12mm bolts to 75 Lb.-Ft.
- Torque the 1/2” nuts to 75 Lb.-Ft.

Hardware List:

(4) 12mm Hex Bolts
(4) 1/2” Serrated Washers
(2) 1/2” Carriage Bolts
(2) Bolt Plates
(2) 1/2” Lock Nuts

Safety Notes:

Do not lubricate threads; bolt failure may occur due to over-tightening.
Do not drill or weld to the hitch.
Use only Towing Products supplied or approved bolts, locknuts, and washers.

Specifications:

Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb.
- Max Tongue Weight: 500 lb.
Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb.
- Max Tongue Weight: 750 lb.
This product complies with safety specifications and requirements for the State of New York and VESC Regulation V-5.

Warranty Information:

Towing Products warrants its hitches and custom hitch receivers for the life of the original consumer purchaser against defects in material and workmanship.
Labor charges and damages incurred during installation or replacement are not covered.
Misuse, abuse, neglect, improper installation, or failure to follow instructions will void the warranty.
Contact Towing Products for assistance:
- USA: 800-632-3290
- Canada: 800-565-0351
