Trailer Tow Hitch w/ 4 Bike Rack For 01-05 Ford Explorer Sport Trac tilt away adult or child arms fold down carrier

Trailer Tow Hitch w/ 4 Bike Rack For 01‑05 Ford Explorer Sport Trac tilt away adult or child arms fold down carrier

Model: 75112 1393100G

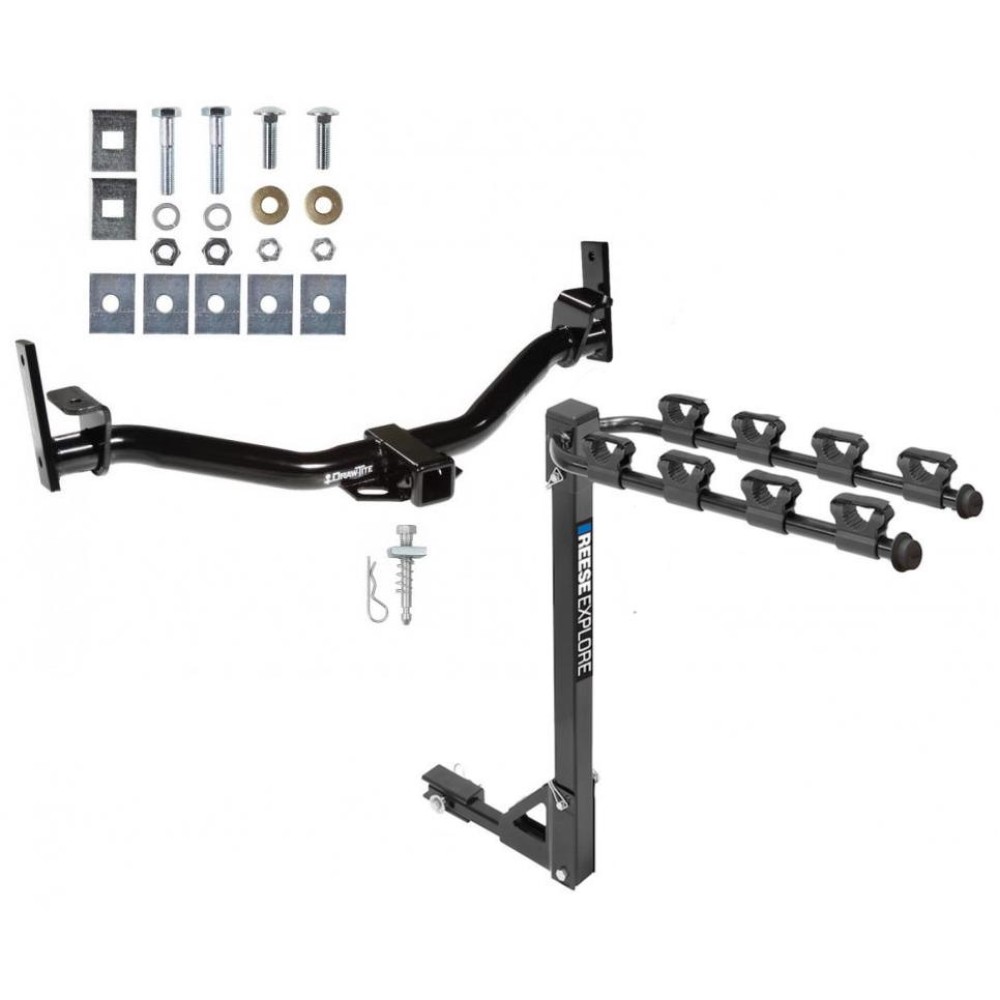

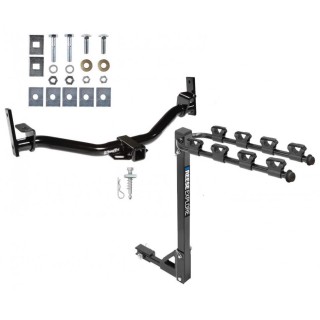

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2001 - 2005 Ford, Explorer Sport Trac, All Styles

Trailer Hitch Specs:

Part Number	75112
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	6,000 lbs
Max Tongue Weight	500/600 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005

See Full Description

$371 ²⁴ $588.84 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$588.84 $371 ²⁴

Pay in 4 interest-free installments of $92.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $92.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75112 1393100G
Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	6,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	600 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75112
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	6,000 lbs
Max Tongue Weight	500/600 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 75112 , 1393100G , Draw-Tite , Trailer , Tow , Hitch , 4 , Bike , Rack , 01-05 , Explorer , Sport , Trac , tilt , away , adult , or , child , arms , fold , down , carrier , 01 , 02 , 03 , 04 , 05 , 2001 , 2002 , 2003 , 2004 , 2005

Get Expert Help

Trailer Tow Hitch w/ 4 Bike Rack For 01-05 Ford Explorer Sport Trac tilt away adult or child arms fold down carrier Install Notes

Installation Instructions for Ford Explorer Sport Trac

Part Numbers:

51141

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrenches: 13/16", 7/8", 15/16"
Drill Bits: None

Step-by-Step Instructions:

Position Receiver:
- Raise the hitch receiver into position, aligning it with the attachment points on the vehicle frame.
Secure Fasteners:
- Install the fasteners as shown in the provided diagram.
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all 9/16"-12 GR5 fasteners to 110 Lb.-Ft. (149 N*M).

Hardware List:

(2) Hex Bolts: 9/16"-12 x 2-1/2” GR5
(2) Carriage Bolts: 1/2"-13 x 1-3/4” GR5
(2) Spacer Blocks: 3/8" x 1-1/2" x 2”
(2) Spacer Blocks: 1/4" x 1-1/2" x 2”
(2) Lock Washers: 9/16”
(2) Conical Toothed Washers
(2) Hex Nuts: 9/16"-12
(2) Hex Nuts: 1/2"-13

Safety Notes:

Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball.
Always observe safety precautions when working beneath a vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Max Tongue Weight: 500 lb. (227 kg)
Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb. (2,724 kg)
- Max Tongue Weight: 600 lb. (272 kg)
