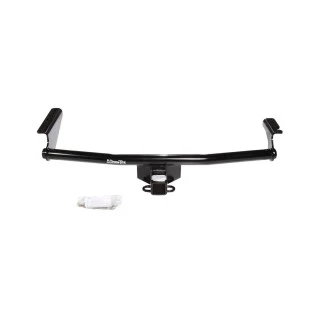

Trailer Tow Hitch w/ 4 Bike Rack For 01‑06 Hyundai Santa Fe tilt away adult or child arms fold down carrier

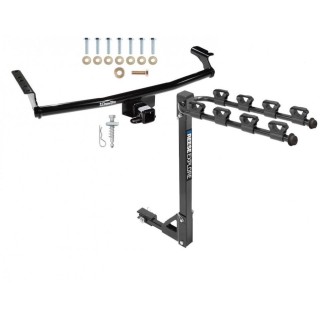

Model: 41543 1393100GCustom Fit Trailer Hitch
4 Bike Carrier

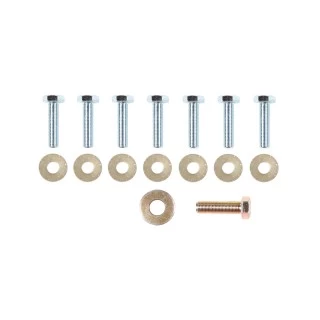

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2006 Hyundai, Santa Fe, All Styles
Trailer Hitch Specs:
| Part Number | 41543 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 315 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 2001 2002 2003 2004 2005 2006
$321 34 $511.00 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$511.00 $321 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $80.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41543 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2006 Hyundai, Santa Fe, All Styles
Trailer Hitch Specs:
| Part Number | 41543 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 315 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 2001 2002 2003 2004 2005 2006
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 01-06 Hyundai Santa Fe tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Hyundai Santa Fe
Part Numbers:
- 33037
- 41543
- 87419
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 14mm, 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- Remove the vehicle's tie-down brackets and return them, along with the fasteners, to the vehicle owner.
-
Lower Spare Tire and Exhaust:
- Lower the spare tire and the vehicle's exhaust to provide access for installation.
-
Install Fasteners:
- Align the hitch with the frame rails using the existing weldnuts.
- Install the following fasteners:
- M10 x 1.25 x 40mm CL8.8 hex bolts with 3/8” conical washers (Qty: 7).
- M12 x 1.25 x 40mm CL10.9 hex bolt with 1/2” conical washer (Qty: 1).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Tighten all M12 CL10.9 fasteners to 68 lb-ft (92 N*m).
-
Reinstall Spare Tire and Exhaust:
- Reinstall the spare tire and the exhaust after securing the hitch.
Torque Specifications:
- M10 CL8.8 bolts: 38 lb-ft (52 N*m)
- M12 CL10.9 bolts: 68 lb-ft (92 N*m)
Hardware List:
- (7) Hex Bolts, M10 x 1.25 x 40mm CL8.8
- (1) Hex Bolt, M12 x 1.25 x 40mm CL10.9
- (7) Conical Washers, 3/8"
- (1) Conical Washer, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 315 lb (143 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
