Trailer Tow Hitch For 03-09 Dodge Ram 1500 2500 3500 Basket Cargo Carrier Platform Hitch Lock and Cover

Trailer Tow Hitch For 03‑09 Dodge Ram 1500 2500 3500 Basket Cargo Carrier Platform Hitch Lock and Cover

Model: 75151 63153 63201 7010

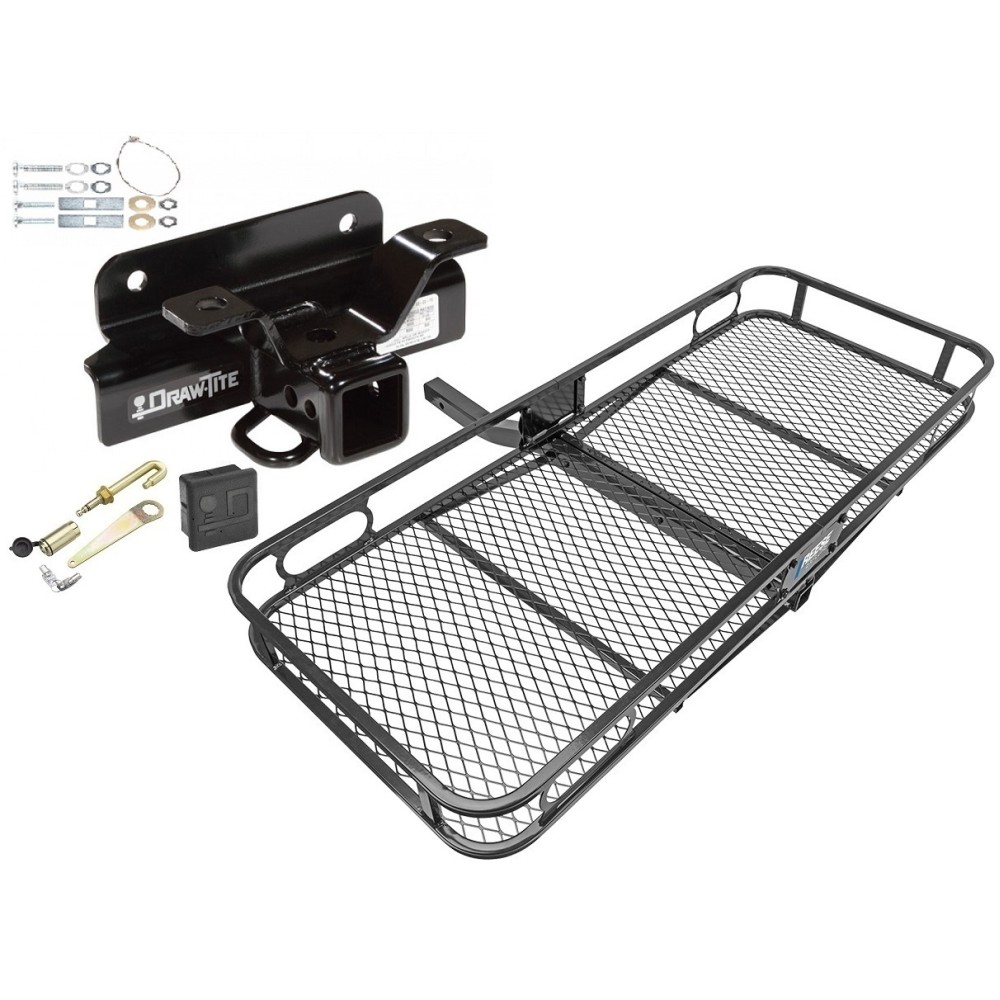

Includes Everything Pictured:
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2003   Dodge, Ram 1500, (Built After 11/2002)
2003 - 2009   Dodge, Ram 2500, All Styles
2003 - 2009   Dodge, Ram 3500, All Styles
2004 - 2005   Dodge, Ram 1500, Except Daytona/Hemi Sport Quad Cab/Ram Rumble Bee/SRT-10
2006 - 2008   Dodge, Ram 1500, All Styles

Trailer Hitch Specs:

Part Number	75151
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	500/800 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 03 04 05 06 07 08 09 2003 2004 2004 2005 2006 2007 2008 2009

See Full Description

$453 ⁰⁰ $738.06 39% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$738.06 $453 ⁰⁰

Pay in 4 interest-free installments of $113.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $113.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75151 63153 63201 7010
Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover

Compatibility Chart

Description

Part Number	75151
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	500/800 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	8,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	800 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 75151 , 63153 , 63201 , 7010 , Draw-Tite , Trailer , Tow , Hitch , 03-09 , Dodge , Ram , 1500 , 2500 , 3500 , Basket , Cargo , Carrier , Platform , Hitch , Lock , and , Cover , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 2003 , 2004 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009

Get Expert Help

Trailer Tow Hitch For 03-09 Dodge Ram 1500 2500 3500 Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes

Installation Instructions for Dodge Ram 1500, 2500, and 3500 Pickups

Part Numbers:

75151
44738
87533
41890 (U-Haul)

Wiring Access Location:

Tools Required:

Pull Wire (Provided)
Pliers
Wrenches: 3/4", 15/16"
Drill Bits: None

Step-by-Step Instructions:

Lower the vehicle's spare tire (if required).
Use pliers to squeeze the tabs holding the center portion of the plastic step tread to the impact bar (4 tabs – 2 on each end) and lift the step tread.
Raise the hitch into position.
Install 5/8” carriage bolts down through holes between the bumper and the impact bar. Install the lock washer and nut (hand-tighten only until all fasteners are in place).
Fishwire 1/2” carriage bolts and 1/4 x 1 x 3 spacer blocks through the end of the impact bar and into holes on the bottom surface of the impact bar. Install conical toothed washers and nuts.
- Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
- Tighten all 5/8-11 GR5 fasteners with a torque wrench to 150 lb-ft (203 N·m).
- Note: Tightening will cause the 5/8” carriage bolt to draw into the impact bar holes. Ensure the bolt is completely seated.
Raise the spare tire (if required).
Tap lightly on the plastic step tread to secure it to the bumper.

Hardware List:

(2) 1/2-13 x 1-3/4 GR5 Carriage Bolts
(2) 5/8-11 x 2” GR5 Carriage Bolts
(2) 1/4 x 1 x 3 Spacer Blocks
(2) 5/8” Lock Washers
(2) 1/2” Conical Toothed Washers
(2) 5/8-11 Hex Nuts
(2) 1/2-13 Hex Nuts
(2) 1/2” Pull Wires

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath a vehicle, and wear eye protection.
Do not cut access or attachment holes using a torch.

Specifications:

This product complies with SAE J684 and V.E.S.C. Regulation V-5.
Weight Ratings:
- Weight Distributing: Max Trailer WT 8,000 lbs (3,632 kg), Max Tongue WT 800 lbs (363 kg).
- Weight Carrying: Max Trailer WT 5,000 lbs (2,270 kg), Max Tongue WT 500 lbs (227 kg).
