Trailer Tow Hitch For 03-09 Lexus GX470 Toyota 4Runner Basket Cargo Carrier Platform Hitch Lock and Cover

Trailer Tow Hitch For 03‑09 Lexus GX470 Toyota 4Runner Basket Cargo Carrier Platform Hitch Lock and Cover

Model: 75155 63153 63201 7010

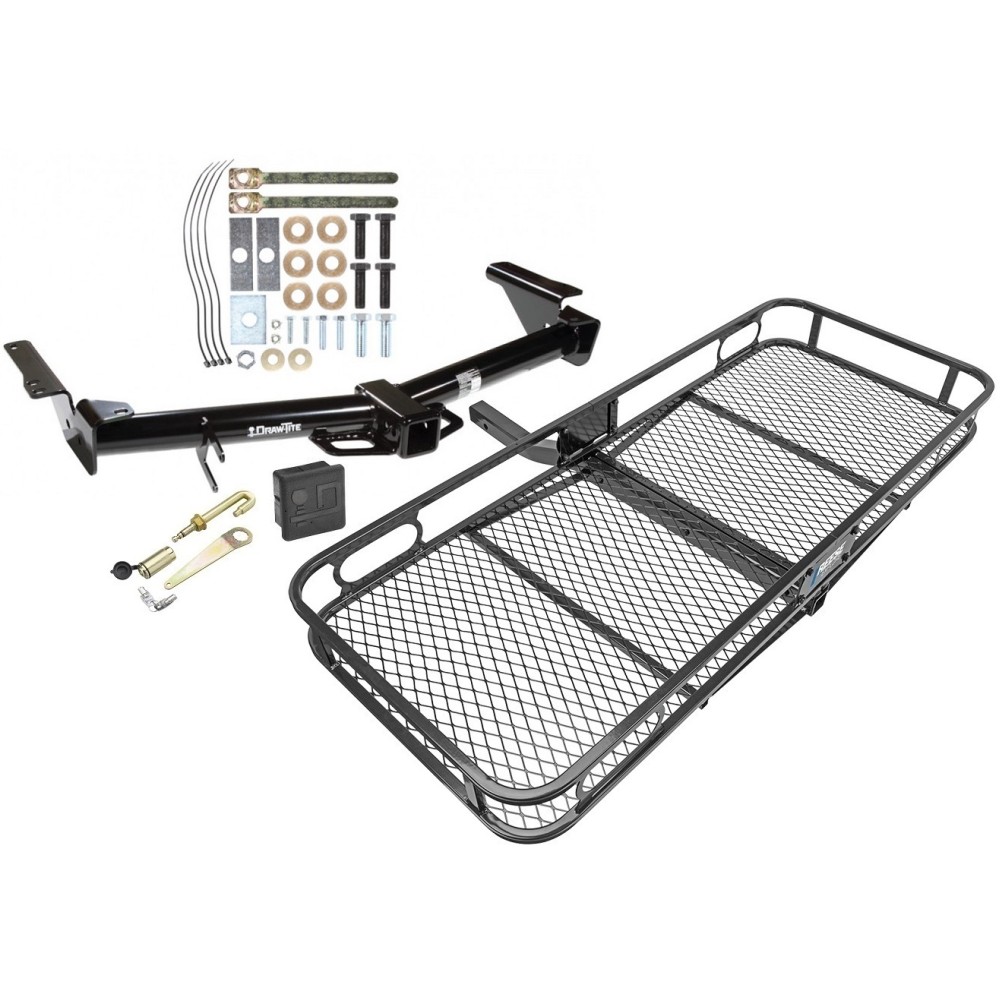

Includes Everything Pictured:
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2003 - 2009 Lexus, GX470, All Styles
2003 - 2009 Toyota, 4Runner, All Styles

Trailer Hitch Specs:

Part Number	75155
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	7,300 lbs
Max Tongue Weight	600/730 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 03 04 05 06 07 08 09 2003 2004 2005 2006 2007 2008 2009

See Full Description

$592 ⁹⁹ $956.70 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$956.70 $592 ⁹⁹

Pay in 4 interest-free installments of $148.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $148.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75155 63153 63201 7010
Includes: Class 4 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover

Compatibility Chart

Description

Part Number	75155
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	7,300 lbs
Max Tongue Weight	600/730 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	7,300 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	730 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 75155 , 63153 , 63201 , 7010 , Draw-Tite , Trailer , Tow , Hitch , 03-09 , Lexus , GX470 , Toyota , 4Runner , Basket , Cargo , Carrier , Platform , Hitch , Lock , and , Cover , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009

Get Expert Help

Trailer Tow Hitch For 03-09 Lexus GX470 Toyota 4Runner Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes

Installation Instructions for Lexus GX470 and Toyota 4Runner

Part Numbers:

44548
75155
70779

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrenches: 1/2", 3/4", 10mm, 12mm, 13mm, 17mm
Drill Bits: None
Other Tools: Tin Snips

Step-by-Step Instructions:

Remove Factory Components:
- Remove the (6) bolts securing the (2) fascia support brackets. Return the brackets and fasteners to the vehicle owner for future reinstallation if the hitch is removed.
- For vehicles with a factory hitch, remove it as the rear fascia must be removed and reinstalled.
Prepare the Vehicle:
- Remove the tow hook and electrical bracket from the vehicle frame, returning them to the owner with fasteners.
- If applicable, unplug the wiring connector from the impact bar and remove any plastic wire holders.
For Toyota 4Runner Only:
- Trim fascia tabs near the bottom of the impact bar as needed.
Install the Hitch:
- Raise the hitch into position, ensuring the factory 7-way connector is above the hitch's crosstube during installation.
- Align side brackets with existing tow hook holes at the frame rails' ends. Secure with fasteners.
Secure the Components:
- Insert the nut block handle assembly (M12) into the impact bar slots and install the M12 hex bolt with a 1/2" conical washer.
- Attach the factory 7-way connector to the hitch's provided electrical bracket using (2) 1/4" hex bolts and flange nuts.
Install Zip Cable Ties:
- Attach the provided zip cable ties (4) through the spare tire bracket to create a loop. Feed the remaining (2) zip cable ties through the fascia tabs and the large loop, securing them together.

Hardware List:

(6) Hex Bolts: M12 x 1.25 x 40mm CL10.9
(6) Conical Washers: 1/2"
(2) Nut Block Handle Assemblies: M12
(2) Hex Bolts: 1/4"-20 x 1" GR5
(2) Flange Nuts: 1/4"
(2) Hex Bolts: M8 x 1.25 x 30mm CL10.9
(2) Conical Washers: 3/8"
(4) Cable Ties

Torque Specifications:

M8 Fasteners: 20 lb-ft (27 N·m)
M12 Fasteners: 68 lb-ft (92 N·m)
1/4" GR5 Fasteners: 8 lb-ft (11 N·m)

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear eye protection and observe safety precautions when working beneath a vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Maximum Load Ratings:
- Weight Distributing:
  - Gross Trailer Weight: 7,300 lbs (3,314 kg)
  - Tongue Weight: 730 lbs (331 kg)
- Weight Carrying (Ball Mount):
  - Gross Trailer Weight: 6,000 lbs (2,724 kg)
  - Tongue Weight: 600 lbs (272 kg)
Hitch Type: Class III
Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always ensure compliance with the vehicle manufacturer’s maximum weight rating or the hitch's maximum load rating, whichever is lower.
