Installation Instructions for Dodge Ram
(Step bumper required. Hitch designed for step bumper.)

Part Numbers:

• 75662
• 87530
• 44603
• 41895 (U-Haul)

Tools Required:

• Wrenches: 3/4", 1-1/8"

Wiring Access Location:

• PU3

Step-by-Step Instructions:

1. Remove the Spare Tire (Optional):

   • Removing the spare tire can make installation easier but is not necessary.

2. Remove Trailer Ball Cover Cap:

   • Remove the cap in the center of the bumper to expose the trailer ball attachment hole.

3. Install Bolt and Washer:

   • Insert the 3/4"-10 GR5 hex bolt and conical washer into the trailer hitch ball attachment hole in the vehicle bumper.

4. Position the Hitch:

   • Raise the hitch into position and slide the 3/4" hex nut into the cut-out on the strap under the rear attachment.
   • Hand-tighten only until all fasteners are installed.

5. Feed Pull Wire and Fasteners:

   • Feed the pull wire through the cross member, attach the spacer and 1/2"-13 GR8 carriage bolt, and pull the fasteners through the vehicle cross tube into position.

6. Loosely Install Washers and Nuts:

   • Loosely install conical washers and nuts onto the carriage bolts.

7. Torque Fasteners:

   • Tighten all 3/4"-10 GR5 fasteners to 260 lb-ft (353 N·m).
   • Tighten all 1/2"-13 GR8 fasteners to 110 lb-ft (149 N·m).

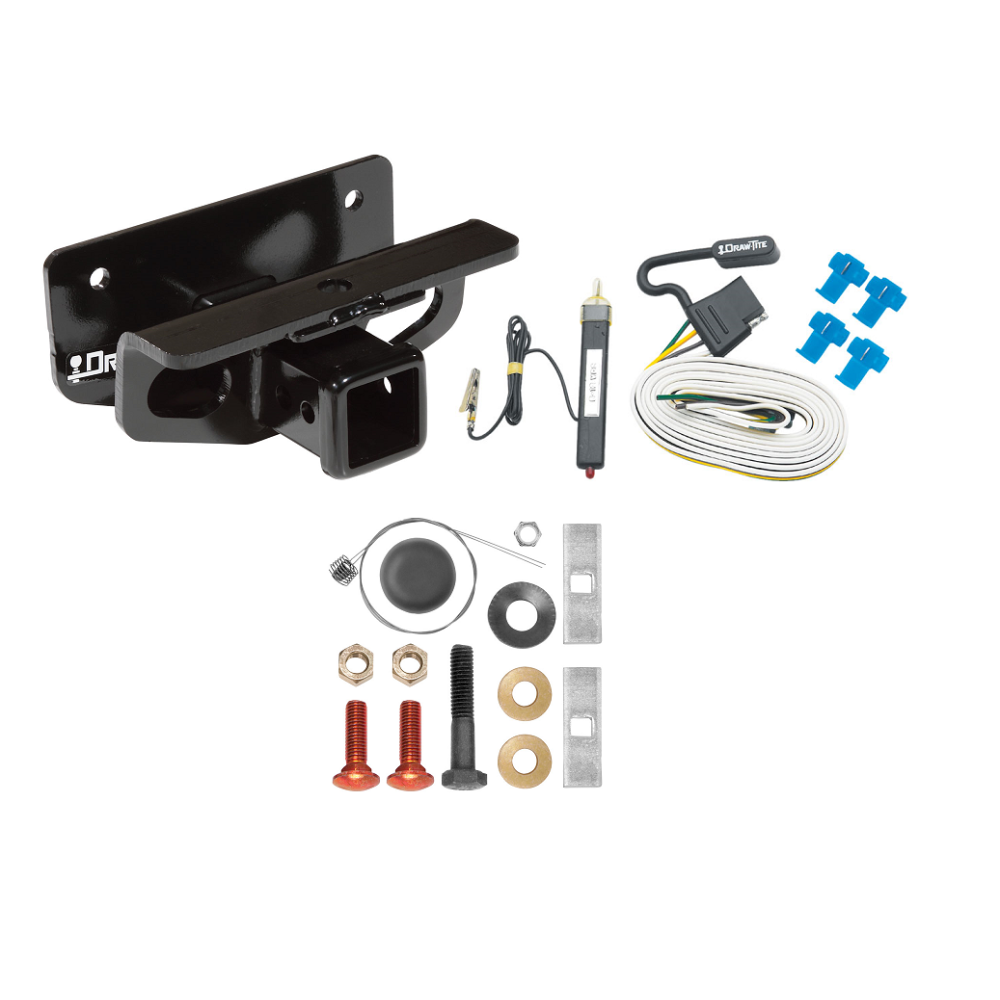

Hardware List:

• (1) Hex Bolt 3/4"-10 x 3.5" GR5
• (1) Conical Washer 3/4"
• (1) Hex Nut 3/4"-10
• (2) Carriage Bolts 1/2"-13 GR8
• (2) Conical Washers 1/2"
• (2) Hex Nuts 1/2"-13
• (2) Spacers
• (2) Pull Wires

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 10,000 lbs (4,540 kg), Max Tongue Weight 1,000 lbs (454 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Set the 3/4" hex nut into the cut-out on the strap to assist with installation.

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches
