Trailer Tow Hitch For 04-06 Ford F-150 All Styles Lincoln Mark LT Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 04‑06 Ford F‑150 All Styles Lincoln Mark LT Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 41549 63134 63100

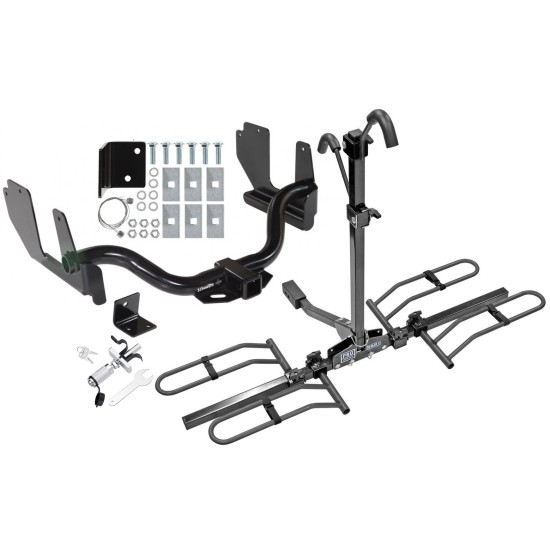

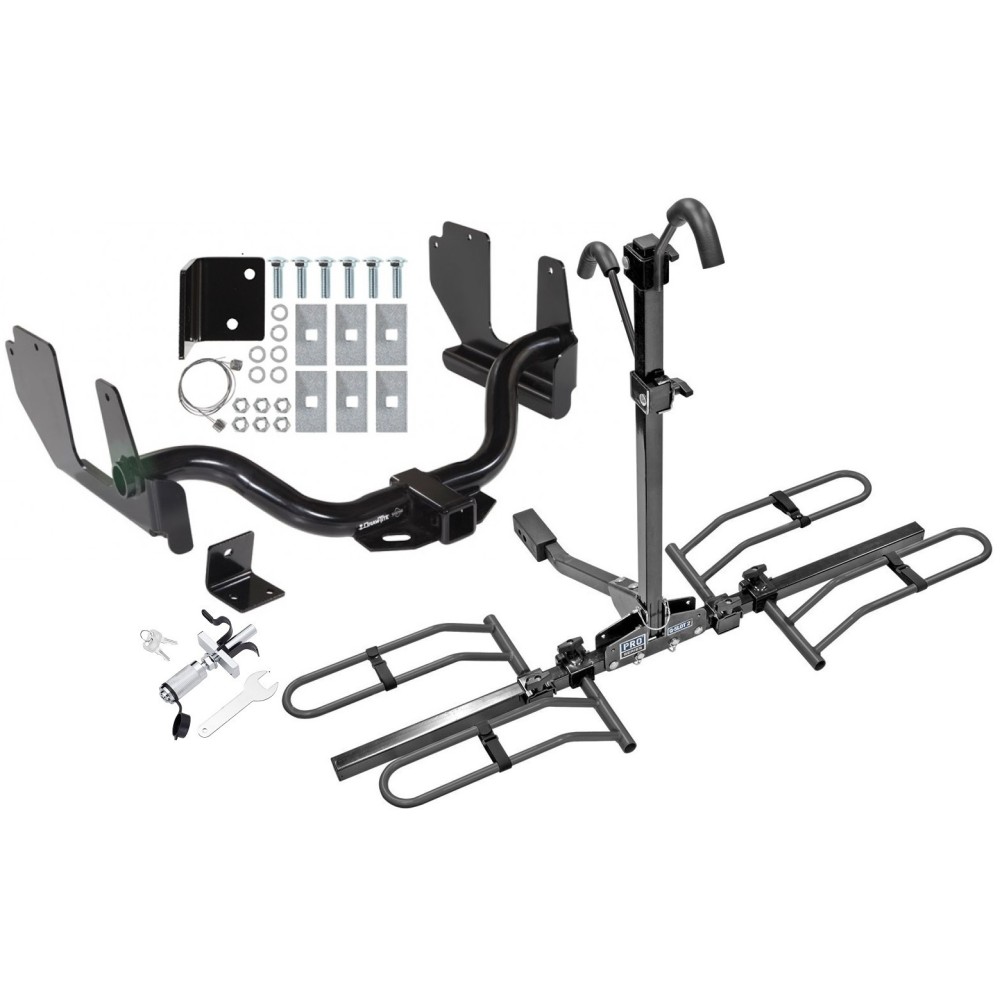

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2004 - 2005 Ford, F-150, All Styles
2006 Lincoln, Mark LT, (Built Before 8/2005)

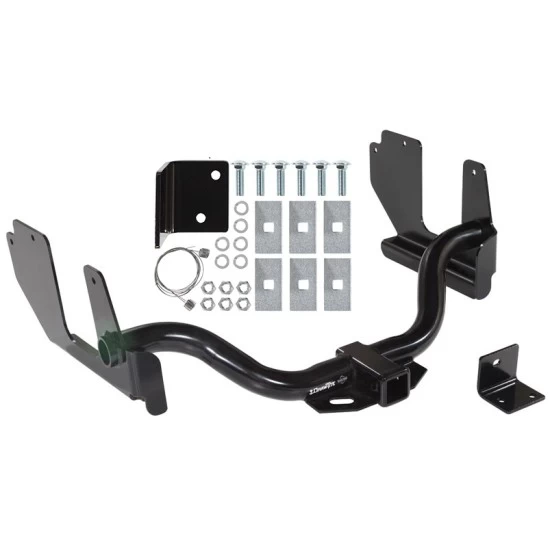

Trailer Hitch Specs:

Part Number	41549
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	600/1,000lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 04 05 06 2004 2005 2006

See Full Description

$525 ⁹¹ $840.49 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$840.49 $525 ⁹¹

Pay in 4 interest-free installments of $131.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $131.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 41549 63134 63100
Includes: Class 4 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Description

Part Number	41549
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	600/1,000lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 41549 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 04-06 , F-150 , All , Styles , Lincoln , Mark , LT , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 04 , 05 , 06 , 2004 , 2005 , 2006

Get Expert Help

Trailer Tow Hitch For 04-06 Ford F-150 All Styles Lincoln Mark LT Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Ford F-150 and Lincoln Mark LT

Part Numbers:

37090
41549
82595

Wiring Access Location:

Tools Required:

Drill with 7/16" Drill Bit
Wrenches: 3/4"
Fishwire (provided)

Step-by-Step Instructions:

Prepare Vehicle:
- Lower the spare tire to ease installation.
- For vehicles with a vibration dampener assembly mounted on the driver’s side frame rail:
  - Remove and retain the dampener and its fasteners for reinstallation later (refer to Figure 2).
  - Note: Vibration dampeners cannot be reinstalled on Flareside models.
Position Hitch:
- Raise the hitch into position, aligning the holes in the hitch side brackets with the holes in the vehicle frame.
Install Rear Fasteners:
- Insert a 1/2"-13 carriage bolt and 1/4" x 3" block through the end of the frame and into the rearmost slot on each side.
- Secure with 1/2" lock washers and nuts. Finger-tighten only at this stage.
Fishwire Forward Bolts:
- Fishwire two (2) 1/2"-13 carriage bolts and 1/4" x 3" blocks through the forward square hole in the side of the frame rail and into the aligned holes in the hitch side bracket on both sides.
- Secure with 1/2" lock washers and nuts.
Notes:
- Ensure blocks do not overlap inside the frame before tightening.
- On vehicles with a vibration dampener, reinstall the dampener (see Figure 2) before tightening fasteners.
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft.
Raise Spare Tire:
- Reinstall the spare tire.

Reinstalling Vibration Dampener (if applicable):

Attach the dampener bracket to the dampener using two (2) existing M10 fasteners. Tighten to 38 lb-ft.
Raise the dampener with the bracket attached and secure it with 1/2" fasteners at the rearmost driver’s side attachment point.
Drill a 7/16" hole through the spring shackle bracket and the adjoining face of the dampener bracket. Secure with the existing M10 fastener.

Torque Specifications:
- M10 fasteners: 38 lb-ft
- 1/2"-13 GR5 fasteners: 75 lb-ft

Hardware List:

(6) Carriage Bolts, 1/2"-13
(6) Blocks, 1/4" x 3"
(6) Lock Washers, 1/2"
(6) Hex Nuts, 1/2"-13

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath a vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb

Additional Notes:

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
