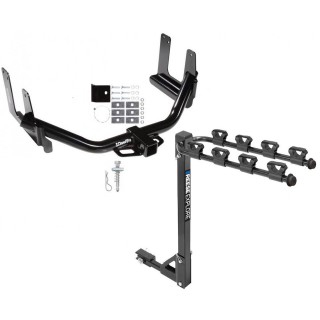

Trailer Tow Hitch w/ 4 Bike Rack For 04-06 Ford F-150 Lincoln Mark LT tilt away adult or child arms fold down carrier

Trailer Tow Hitch w/ 4 Bike Rack For 04‑06 Ford F‑150 Lincoln Mark LT tilt away adult or child arms fold down carrier

Model: 75156 1393100G

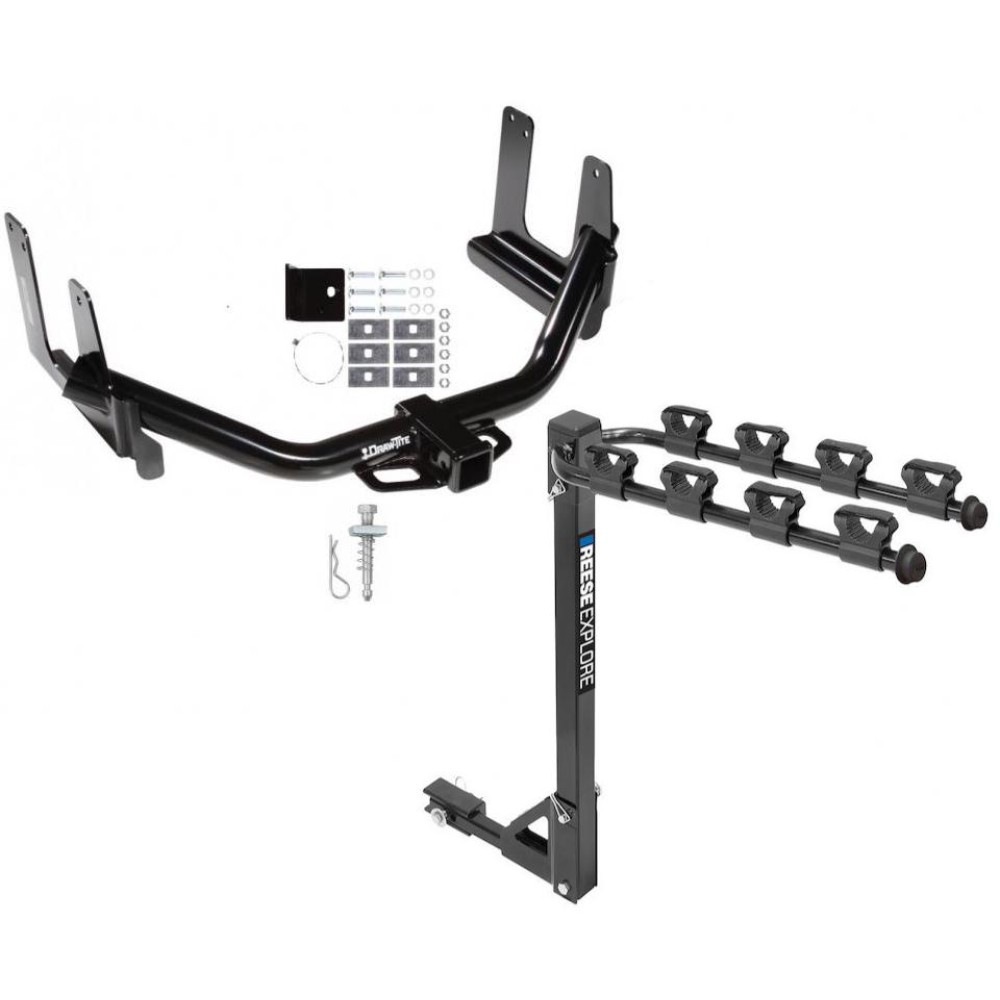

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2004-2005 Ford, F-150, All Styles
2006 Lincoln, Mark LT, (Built Before 8/2005)

Trailer Hitch Specs:

Part Number	75156
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	600/800 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 04 05 06 2004 2005 2006

See Full Description

$416 ¹⁵ $659.04 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$659.04 $416 ¹⁵

Pay in 4 interest-free installments of $104.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $104.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75156 1393100G
Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	8,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	800 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75156
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	600/800 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 75156 , 1393100G , Draw-Tite , Trailer , Tow , Hitch , 4 , Bike , Rack , 04-06 , F-150 , Lincoln , Mark , LT , tilt , away , adult , or , child , arms , fold , down , carrier , 04 , 05 , 06 , 2004 , 2005 , 2006

Get Expert Help

Trailer Tow Hitch w/ 4 Bike Rack For 04-06 Ford F-150 Lincoln Mark LT tilt away adult or child arms fold down carrier Install Notes

Installation Instructions for Ford F-150 and Lincoln Mark LT

Part Numbers:

44655
75156
87195

Wiring Access Location:

Tools Required:

Fishwire (provided)
Wrenches: 3/4"
Drill Bits: 7/16"

Notes:

Does not fit F-150 pickups with previously installed OEM hitches.
On Flareside models, the vibration dampener assembly cannot be re-installed and must be permanently removed.
Lowering the spare tire may ease installation.

Step-by-Step Instructions:

Raise the hitch into position, aligning holes in the hitch side brackets with holes in the vehicle frame.
Install 1/4 x 3 block and carriage bolt through the end of the frame into the rearmost slot on each side. Secure with lock washers and nuts. Finger-tighten only.
Fishwire 1/4 x 3 blocks and carriage bolts (2 on each side) through the forwardmost square hole in the side of the frame rail and align with holes in the hitch side bracket. Secure with lock washers and nuts.
- Ensure blocks do not overlap inside the frame before tightening.
Re-install the vibration dampener assembly (if applicable):
- Attach the dampener bracket to the dampener using (2) existing M10 fasteners.
- Tighten M10 fasteners to 38 lb-ft.
- Secure the assembly with 1/2” fasteners at the rearmost driver-side attachment point.
- Drill a 7/16” hole through the spring shackle bracket and the adjoining face of the dampener bracket.
- Install and tighten the existing M10 fastener to 38 lb-ft.
Tighten all 1/2-13 GR5 fasteners to 75 lb-ft.
Raise the spare tire back into position.

Hardware List:

(6) 1/2-13 Carriage Bolts
(6) 1/4 x 3 Blocks
(6) 1/2” Lock Washers
(6) 1/2-13 Hex Nuts

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs, Max Tongue Weight 800 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs, Max Tongue Weight 600 lbs.
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
