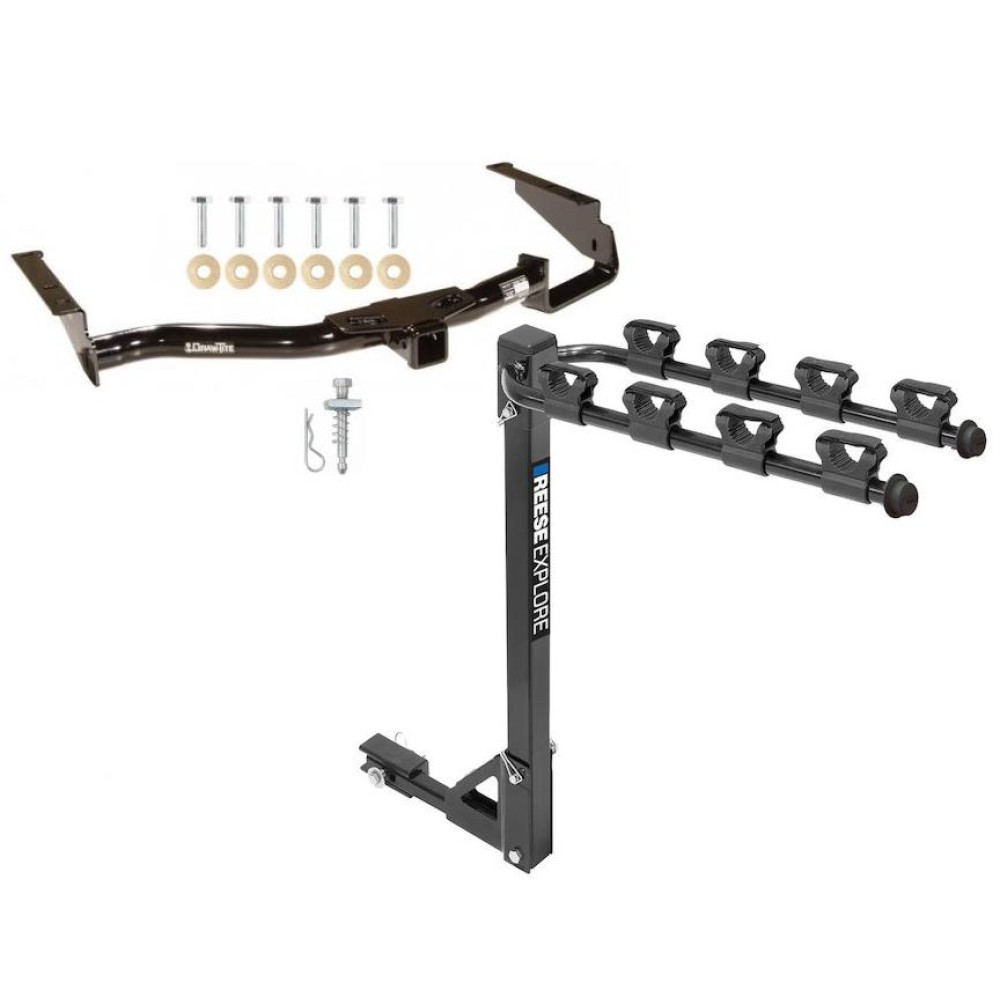

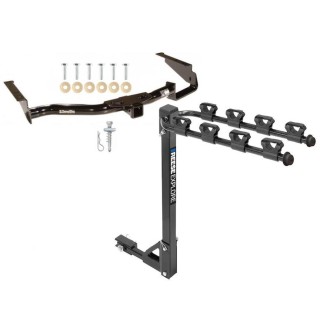

Trailer Tow Hitch w/ 4 Bike Rack For 04‑09 Toyota Highlander Lexus RX 330 RX 350 tilt away adult or child arms fold down carrier

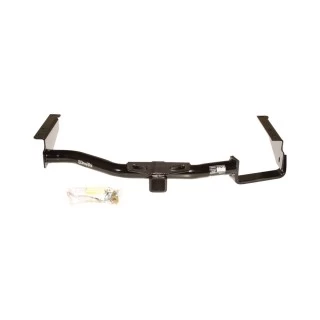

Model: 75153 1393100GCustom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2006 Lexus, RX330, All Styles
2004 - 2007 Toyota, Highlander, All Styles
2006 - 2008 Lexus, RX400h, Hybrid
2007 - 2009 Lexus, RX350, All Styles
Trailer Hitch Specs:
| Part Number | 75153 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
$350 64 $556.77 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$556.77 $350 64
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $87.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75153 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2006 Lexus, RX330, All Styles
2004 - 2007 Toyota, Highlander, All Styles
2006 - 2008 Lexus, RX400h, Hybrid
2007 - 2009 Lexus, RX350, All Styles
Trailer Hitch Specs:
| Part Number | 75153 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 04-09 Toyota Highlander Lexus RX 330 RX 350 tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Lexus RX330, Lexus RX400h, and Toyota Highlander & Highlander Hybrid
Part Numbers:
- N70778
- 44740N
- N75153
- N87778
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Hitch Requires: 5/8" Pin and Clip (if stabilizing pin is not installed)
- Wrenches: 14mm, 17mm (tighten all fasteners with torque wrench)
- Phillips Head Screwdriver
Drill Bits:
- None
Step-by-Step Instructions:
- Remove shrouds on both sides on Lexus RX400h:
- (4) Phillips Head Screws & (2) Plastic Push Rivets on the driver’s side.
- (2) Phillips Head Screws, (1) Plastic Push Rivet & (1) 10mm Bolt on the passenger’s side.
- Remove tie downs and fasteners from frame rails.
- Remove rubber plugs (2) located in each rail.
- Raise hitch into position and install fasteners as shown in the diagram.
- Return the tie downs, fasteners, rubber plugs, and shrouds to the vehicle owner.
- Tighten all M10 CL8.8 fasteners to 38 lb-ft.

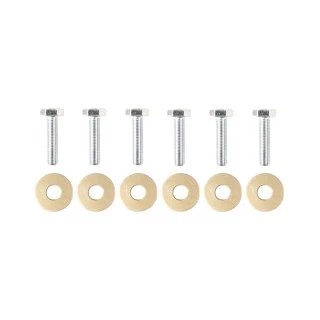

Hardware List:
- M10 x 1.25 x 40mm CL8.8 Bolts
- Conical Toothed Washer (Typical 3 Places per Side of Vehicle)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs, Max Tongue Weight 350 lbs.
- Not for use with weight distributing spring bar type hitch.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
