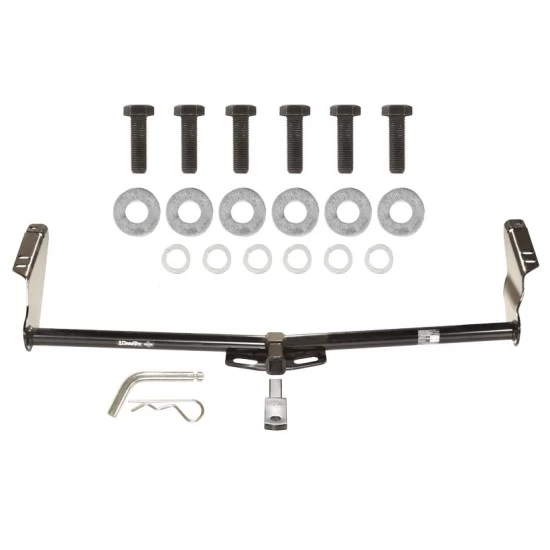

Trailer Tow Hitch For 04‑20 Toyota Sienna 1‑1/4" Receiver w/ Draw Bar Kit
Model: 365130Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2004 - 2020 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 365130 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
$205 38 $363.85 44% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$363.85 $205 38
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 365130
- UPC: 016118140125
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2004 - 2020 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 365130 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch For 04-20 Toyota Sienna 1-1/4" Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Toyota Sienna
Part Numbers:
- 90214
- 36513
- 06137
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 10mm, 19mm
- 6" Ratchet Extension
- Large Screwdriver
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Appearance Panel:
- For vehicles with an appearance panel covering the trunk pan:
- Remove the panel.
- Trim the panel or return it untrimmed to the vehicle owner based on their preference (see Figure 2).
- For vehicles with an appearance panel covering the trunk pan:
-
Remove Plastic Plugs:
- Remove the plastic plugs from existing holes in the vehicle frame (if present).
-
Position Hitch:
- Raise the hitch into position over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the frame rails.
- Lowering the exhaust may ease installation.
- Spray lubricant on the metal hanger rod and rubber isolator to help remove the exhaust.
-
Install Fasteners:
- Install the provided fasteners through the hitch and into the weldnuts on the frame rails as shown in Figure 1.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 75 ft-lb (102 N*m).
-
Reinstall Components:
- Raise the exhaust back into position and reattach hangers.
- Reinstall the trimmed appearance panel or return the untrimmed panel to the vehicle owner.
Hardware List:
- (6) Hex Bolt, M12 x 1.25 x 40mm CL10.9
- (6) Lock Washer, 1/2"
- (6) Flat Washer, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 (sold separately)
- Fastener Kit: 36513F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
