Name: Reese Trailer Tow Hitch For 05-08 Dodge Magnum Class 2 Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Brand: Reese
Price: 341.98 USD
Availability: InStock

Reese Trailer Tow Hitch For 05-08 Dodge Magnum Class 2 Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

0 reviews - Write a review

$341.98

Stock: In Stock
Brand: Reese
Model: 06946 36061 118402 63810

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

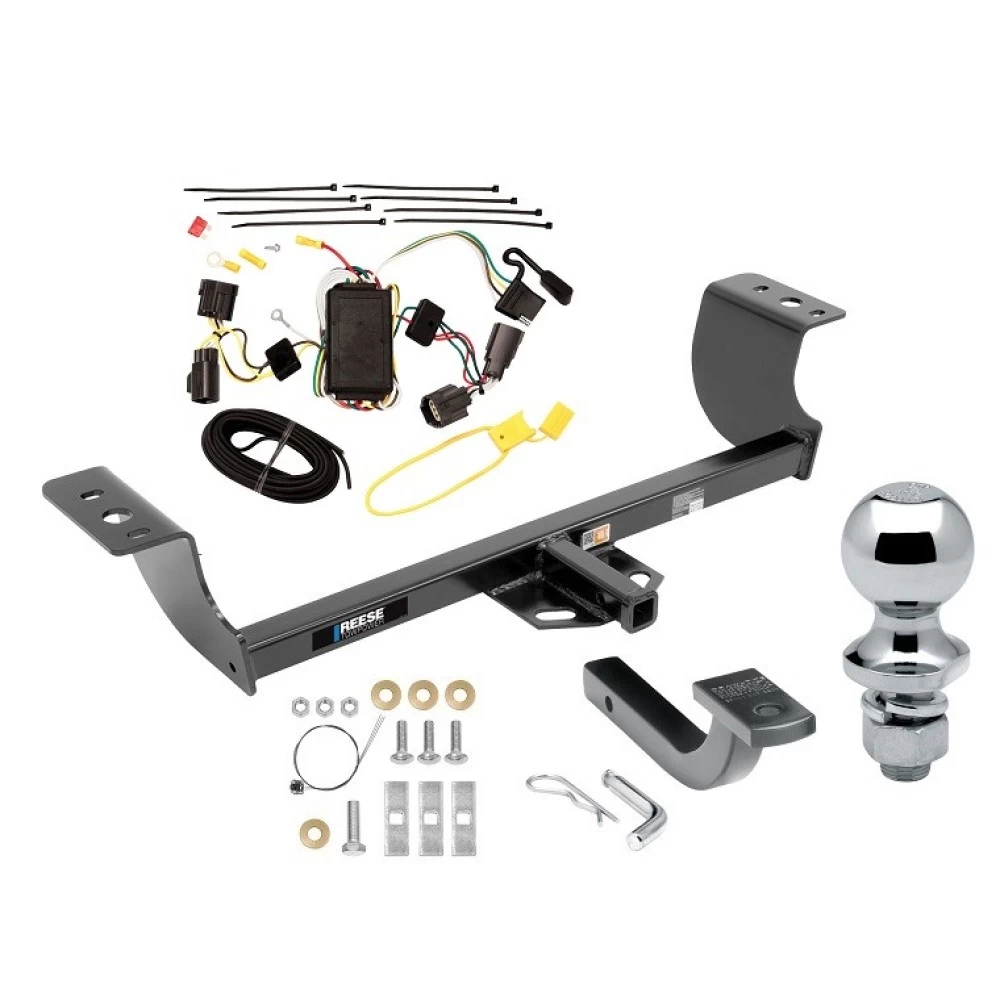

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2005 - 2008 Dodge, Magnum, All Styles

Trailer Hitch Specs:

Part Number	06946
Brand	Reese
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9-3/4" From Center of Pin Hole to Center of Ball Hole
Rise	3-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	3,500 lb Gross Towing Weight 300 lb Tongue Weight
Towing Capacity in Drop Position	3,500 lb Gross Towing Weight 300 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	118402
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 05 06 07 08 2005 2006 2007 2008

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Tags: 06946 , 36061 , 118402 , 63810 , Reese , Trailer , Tow , Hitch , 05-08 , Dodge , Magnum , Class , 2 , Complete , Package , Wiring , Draw , Bar , and , 1-7/8" , Ball , 05 , 06 , 07 , 08 , 2005 , 2006 , 2007 , 2008
