Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS 05-06 Pursuit Canada Only Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
 Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS  05-06 Pursuit Canada Only  Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Reese Trailer Tow Hitch For 05-10 Chevy Cobalt Except SS 05-06 Pursuit Canada Only Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
$277.67
  • Stock: In Stock
  • Brand: Reese
  • Model: 77122 118398 3593 63810

Applies to this product only

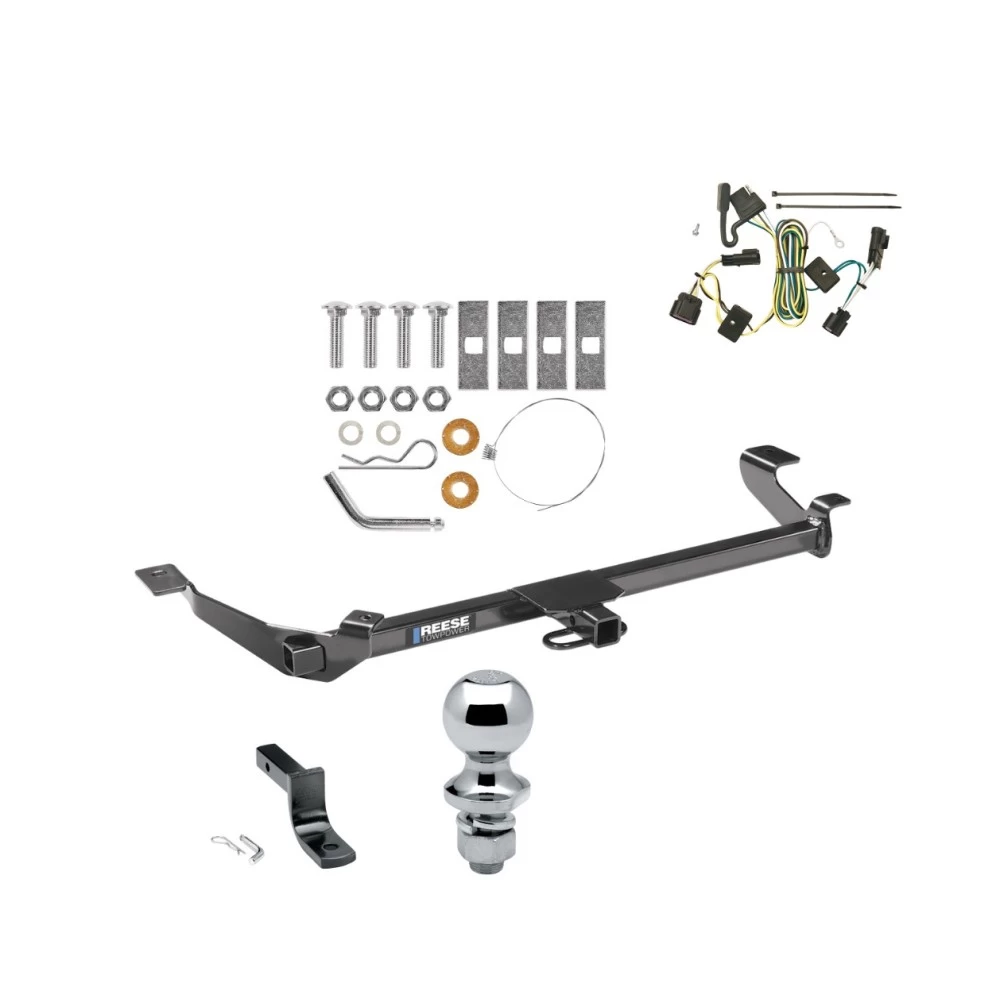

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball

Installation Hardware
Installation Instructions



Fits The Following Vehicles

2005 - 2010 Chevrolet, Cobalt, 4 Dr., Except SS
2005 - 2006 Pontiac, Pursuit, 4 Dr. (Canada Only)

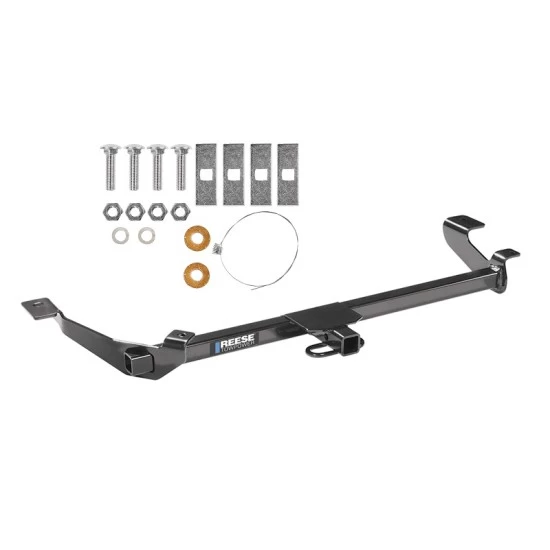

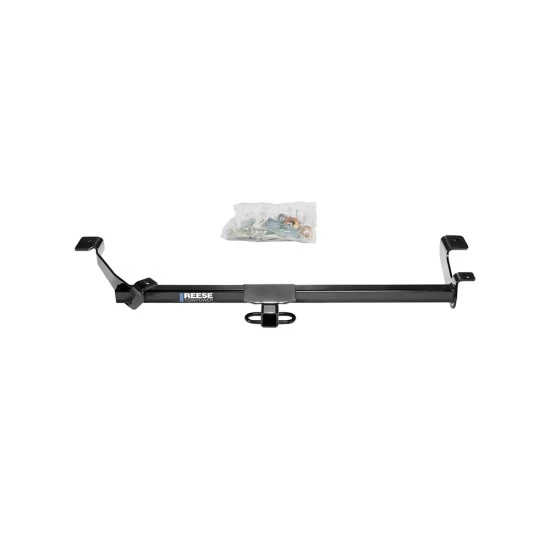

Trailer Hitch Specs:

Part Number 77122
Brand Reese
Finish Black Powdercoat
Class 1
Receiver size opening 1-1/4"
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions

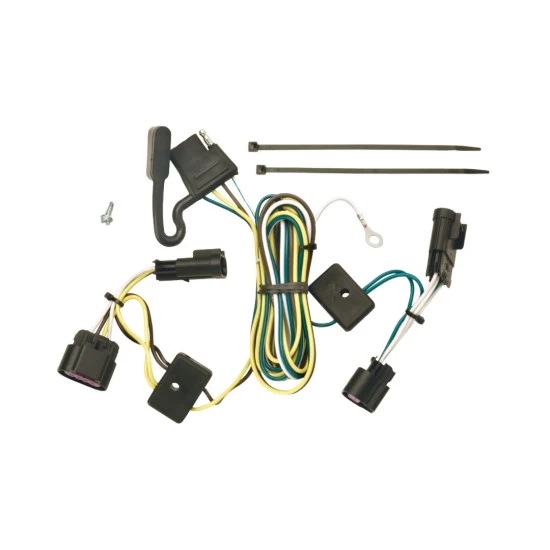

Wiring Kit Specs:


Part Number 118398
Brand Tekonsha
Warranty 1 Year
Installation Instructions
Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Ball Mount Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise 2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Drop 2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
Specification
Attachment Location Rear
Color Black
Drawbar Included No
Drilling Required Yes
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
