Reese Trailer Tow Hitch For 05-10 Chevy Cobalt HHR 07-09 Pontiac G5 GT Complete Package w/ Wiring Draw Bar and 2" Ball

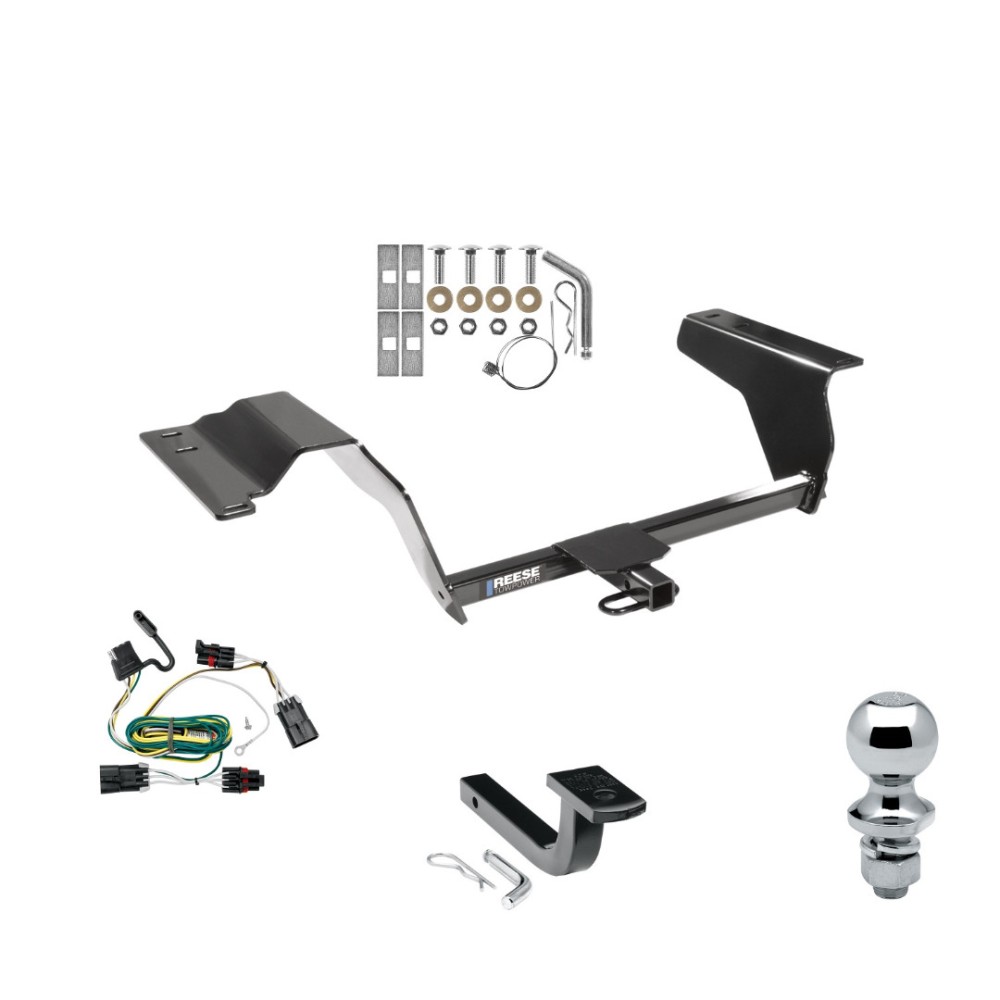

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2008 Chevrolet, Cobalt Sport, 2 Dr.
 2005 - 2010 Chevrolet, Cobalt SS, 2 Dr.
 2006 - 2011 Chevrolet, HHR, All Styles
 2008 - 2010 Chevrolet, HHR SS, All Styles
 2007 - 2009 Pontiac, G5 GT, All Styles

Trailer Hitch Specs:

Part Number	77132
Brand	Reese
Finish	Black Powdercoat
Class	1
Max gross trailer weight	2,000 lbs
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Wiring Kit Specs:



Part Number	118407
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:



Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

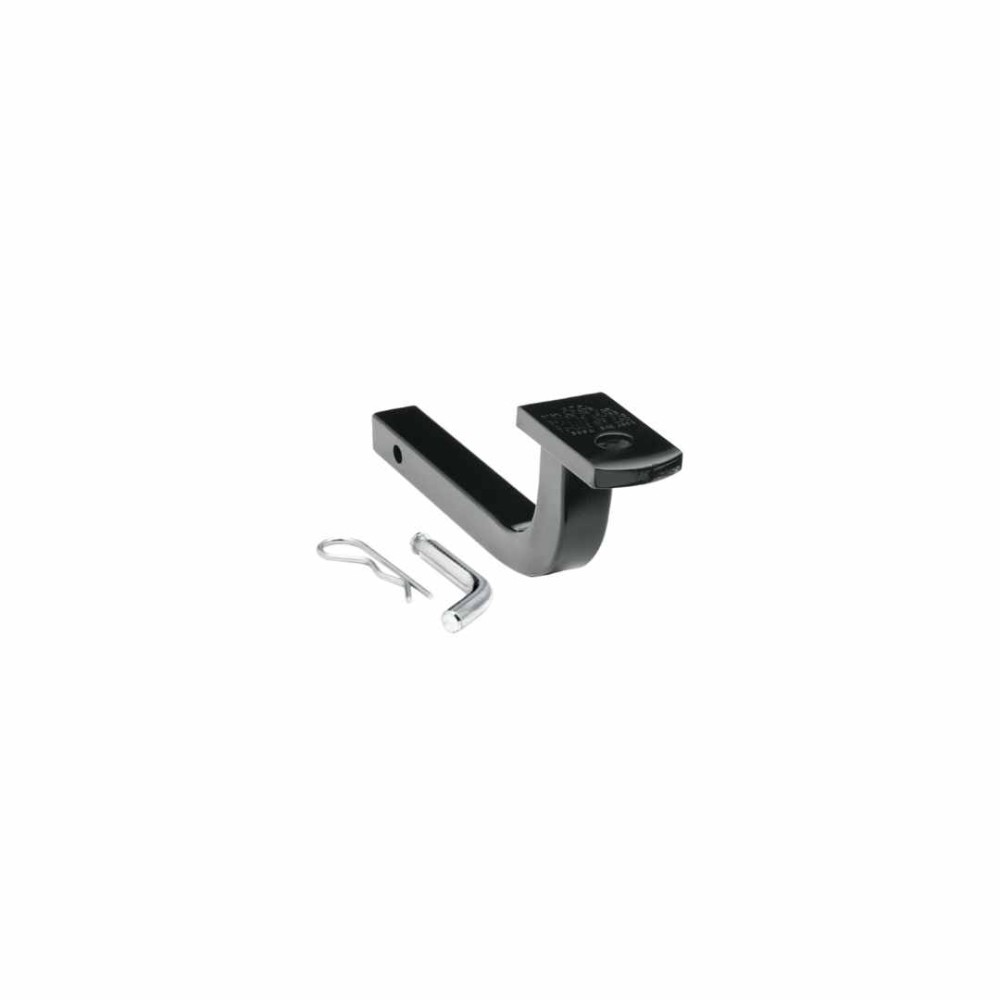

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	-10" From Center of Pin Hole to Center of Ball Hole -7-3/8" From center of pin hole to closest edge of ball platform
Rise	4" From inside top of hitch opening
Towing Capacity in Rise Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Drop	2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
