Trailer Tow Hitch w/ 4 Bike Rack For 05-12 Ford Escape Mazda Tribute Mercury Mariner tilt away adult or child arms fold down carrier w/ Lock and Cover

Trailer Tow Hitch w/ 4 Bike Rack For 05‑12 Ford Escape Mazda Tribute Mercury Mariner tilt away adult or child arms fold down carrier w/ Lock and Cover

Model: 36501 1393100G 580407 2211

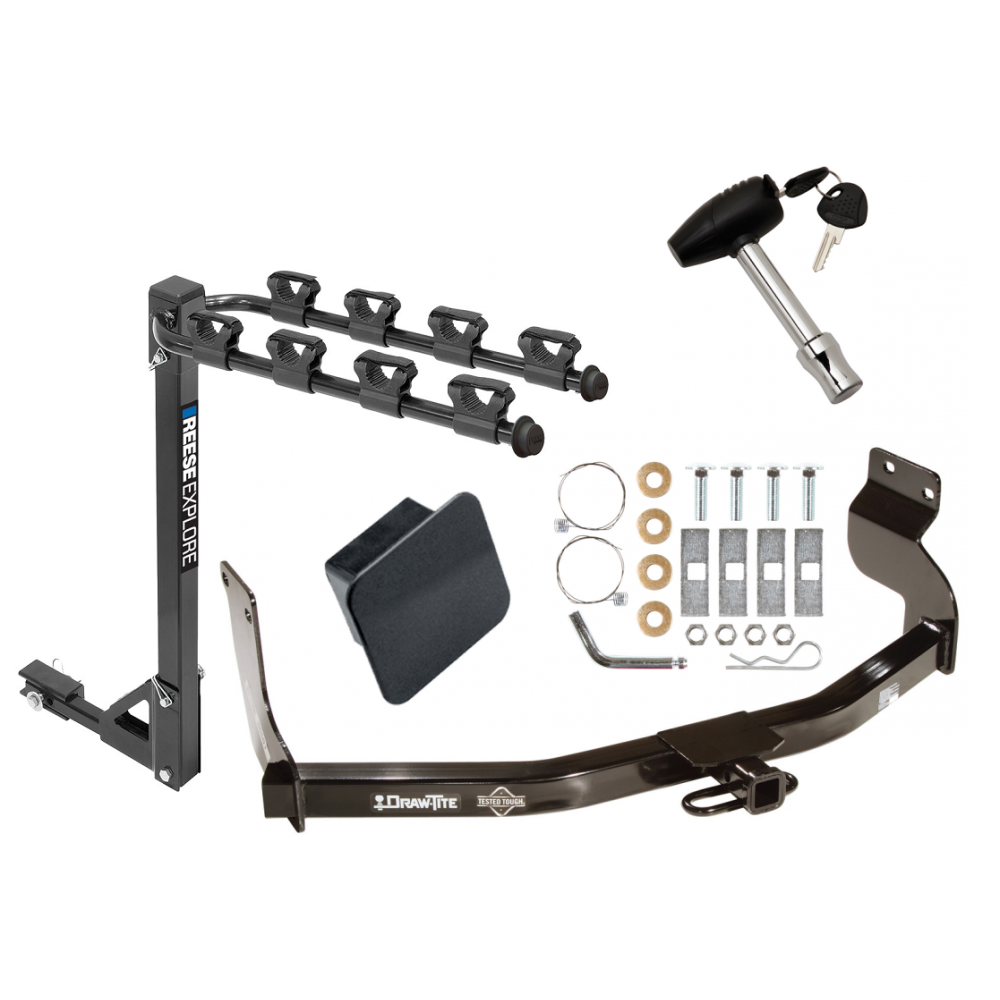

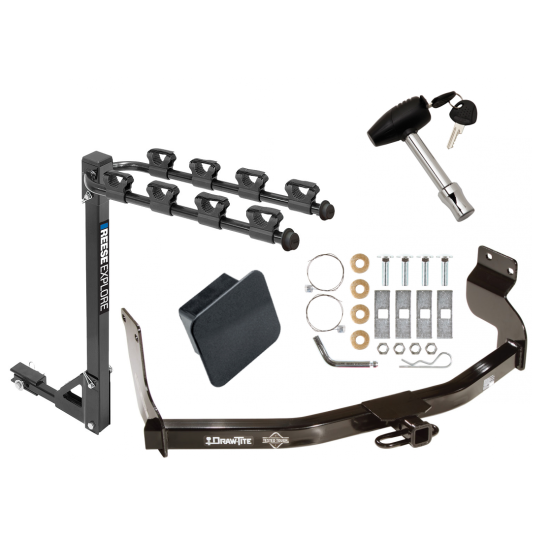

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2005 - 2012 Ford, Escape, All Styles
2005 - 2011 Mazda, Tribute, All Styles
2005 - 2011 Mercury, Mariner, All Styles

Trailer Hitch Specs:

Part Number	36501
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999
