Product Details
- Brand: Draw-Tite
- Model: 363090 118419 63810

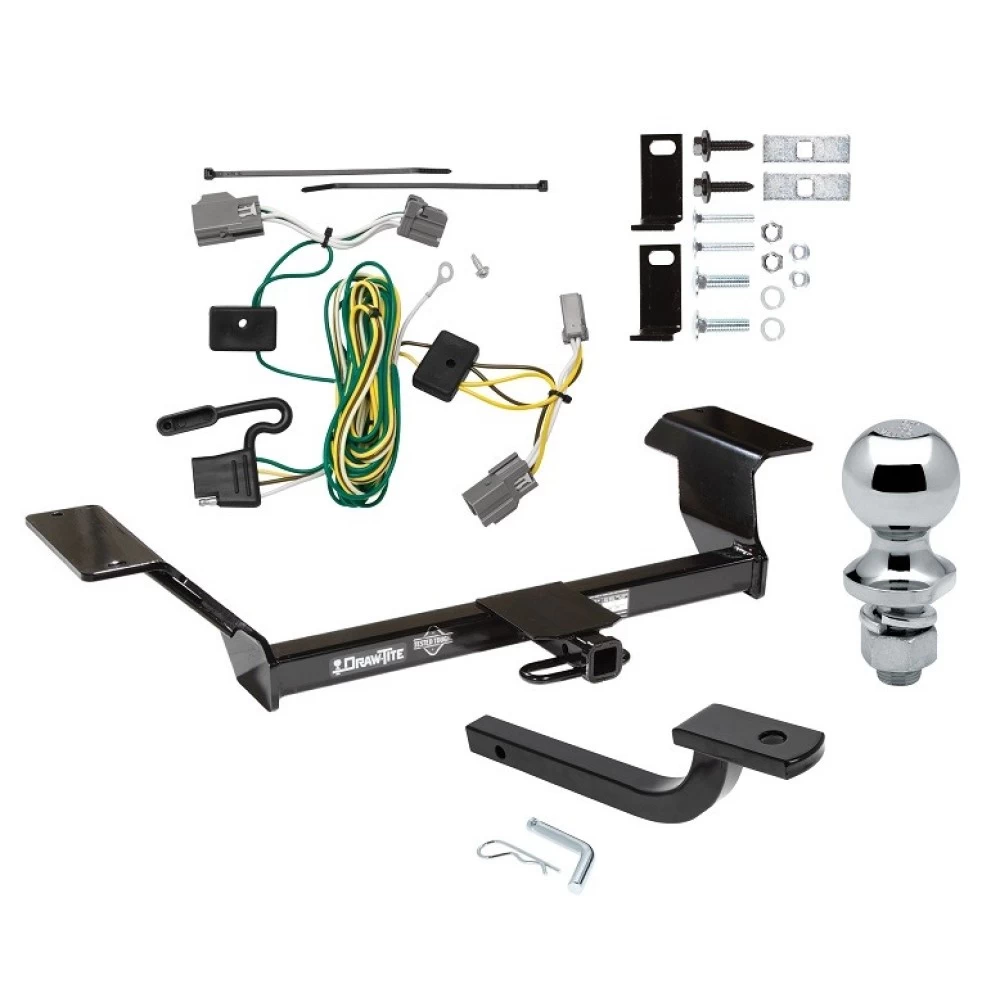

- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 06-09 Buick Lucerne Except Super & Special Edition Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for Pontiac Bonneville, Buick LeSabre, Buick Lucerne (Excluding Super & Special Edition), and Oldsmobile Aurora
Part Numbers:
- 06976
- 36309
- 90140
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 15mm, 17mm, 9/16", 3/4"
- Drill with 1/2" Drill Bit
- Tin Snips
Step-by-Step Instructions:
-
Remove Exhaust Hanger Bracket:
- Detach the exhaust hanger bracket from the bottom of the frame rail.
- Disconnect the bracket from the rubber hanger attached to the exhaust tailpipe.
- Return the factory exhaust brackets to the vehicle owner.
- Replacement brackets will be installed later.
-
Raise Hitch and Drill Holes:
- Raise the hitch into position and use it as a template to drill two (2) 1/2" holes in the frame rail.
-
Trim Heat Shield (if applicable):
- If the vehicle is equipped with a heat shield:
- Remove and discard the rearmost fastener securing the heat shield to the frame rail.
- Trim the heat shield around the drilled hole as shown in Figure 2.
- If the vehicle is equipped with a heat shield:
-
Trim Load Leveling Control Housing (if applicable):
- For vehicles with automatic load leveling control:
- Remove the rearmost fastener securing the load leveling control housing to the frame rail and discard.
- Trim the load leveling control housing as shown in Figure 3.
- For vehicles with automatic load leveling control:
-
Install Hardware:
- Lower the hitch and fishwire the carriage bolts and blocks through the drilled holes and into position.
- Raise the hitch back into position and install the remaining fasteners as shown in Figure 1.
- If equipped with a heat shield, ensure it is sandwiched between the frame and the hitch side bracket during installation.
-
Attach Replacement Hanger Brackets:
- Install the replacement exhaust hanger brackets:
- Insert a 3/8-16 x 2" carriage bolt through the square hole in the hanger bracket to the bottom of the frame rail.
- Slide the rubber hanger onto the 3/8" carriage bolt and secure it with a flanged locknut.
- Tighten the nut against the rubber hanger, allowing the hanger to rotate freely (do not overtighten).
- Install the replacement exhaust hanger brackets:
-
Tighten Fasteners:
- Torque all 1/2" GR5 fasteners to 75 lb-ft (102 N*m).
- Torque all M10 CL9.8 fasteners to 53 lb-ft (72 N*m).
- Torque all 3/8" GR5 fasteners to 31 lb-ft (41 N*m).
Hardware List:
- (2) M10 x 1.50 x 45mm Bolts (CL9.8)
- (2) Carriage Bolt, 1/2"-13 x 1.75" (GR5)
- (2) Carriage Bolt, 3/8"-16 x 2" (GR5)
- (2) Spacer Block, 1/4" x 1" x 3"
- (2) Lock Washer, 1/2"
- (2) Flanged Locknut, 3/8"-16
- (2) Hex Nut, 1/2"-13
- (2) Replacement Exhaust Hanger Brackets
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- Wear eye protection and observe safety precautions when working beneath the vehicle.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Additional Notes:
- Drawbar Kit: 36063 (sold separately)
- Fastener Kit: F36309
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118419
Tools Required:
- Trim Panel Remover
- Drill with a 3/32" Drill Bit
Step-by-Step Instructions:
-
Access the Rear Cargo Area:
- Open the trunk and temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
- Disconnect the connectors carefully to avoid breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors on the driver’s side.
- Lock into place, ensuring the connectors are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
- Repeat step 3 on the passenger’s side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
- Do not drill into exposed surfaces.
-
Store the 4-Flat Connector:
- Route the 4-flat connector from below the threshold plate into the trunk. Store it in the trunk when not in use.
-
Reassemble the Vehicle:
- Reinstall the felt trunk liner, threshold, and other items removed during installation. Ensure no wires are pinched or cut during reassembly.
-
Test the Installation:
- Test and verify the T-Connector functionality using a test light or trailer.
Specifications:
- Max. stop/turn light: 7.5 amps
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional guidance.
