Trailer Tow Hitch w/ 4 Bike Rack For 06-09 Ford Fusion Mercury Milan Lincoln MKZ Zephyr 03-08 Mazda 6 tilt away adult or child arms fold down carrier w/ Lock and Cover

Trailer Tow Hitch w/ 4 Bike Rack For 06‑09 Ford Fusion Mercury Milan Lincoln MKZ Zephyr 03‑08 Mazda 6 tilt away adult or child arms fold down carrier w/ Lock and Cover

Model: 24775 1393100G 580407 2211

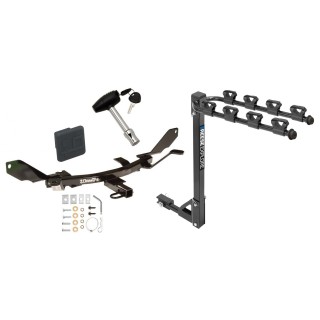

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2003 - 2008   Mazda, 6, 4 Dr. Sedan
2004 - 2008   Mazda, 6, 5 Dr. Hatchback
2006 - 2009   Ford, Fusion, All Styles
2006    Lincoln, Zephyr, All Styles
2006 - 2009   Mercury, Milan, All Styles
2007 - 2009   Lincoln, MKZ, All Styles

Trailer Hitch Specs:

Part Number	24775
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-1-4" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 03 04 05 06 07 08 09 2003 2004 2005 2006 2007 2008 2009

See Full Description

$376 ⁸⁸ $600.90 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$600.90 $376 ⁸⁸

Pay in 4 interest-free installments of $94.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $94.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 24775 1393100G 580407 2211
Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Description

Part Number	24775
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-1-4" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	Yes
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 24775 , 1393100G , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 4 , Bike , Rack , 06-09 , Fusion , Mercury , Milan , Lincoln , MKZ , Zephyr , 03-08 , Mazda , 6 , tilt , away , adult , or , child , arms , fold , down , carrier , Lock , and , Cover , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009

Get Expert Help

Trailer Tow Hitch w/ 4 Bike Rack For 06-09 Ford Fusion Mercury Milan Lincoln MKZ Zephyr 03-08 Mazda 6 tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes

Installation Instructions for Mazda 6 Sedan & 5-Door, Ford Fusion, Mercury Milan, Lincoln Zephyr, and Lincoln MKZ

Part Numbers:

77152
24775
60846

Wiring Access Location:

PC3, PC4

Tools Required:

Pull Wire (Provided)
Wrenches: 12mm, 13mm, 3/4"
Drill Bits: 1/2"

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Muffler:
- Remove three (3) rubber isolator hangers: two near the muffler end and one forward of the rear axle.
- Remove two (2) rubber plugs from the trunk pan if present.
Remove Existing Fasteners:
- Remove the 8mm bolts located inside the frame rail on the bulkhead on both sides of the vehicle. Discard these bolts.
Position Hitch:
- Slide the hitch above the tailpipes, ensuring the inner bumper straps slide under the fascia.
- Install the M8 bolts loosely through the upright brackets.
Prepare Bumper Slots:
- If the vehicle bumper has slots aligning with the holes in the inner bumper strap, proceed to Step 5.
- Otherwise, use the hitch’s inner bumper straps as a template to drill two (2) 1/2” holes in the bumper.
Install Carriage Bolt and Block:
- Fishwire the carriage bolt and block through the inner bumper structure and carefully pull the fastener through the slot or drilled hole in the bumper and hitch.
- Install the conical toothed washer and nut.
Torque Specifications:
- Tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all M8 fasteners to 25 Lb.-Ft. (34 N*M).
Install Hex Bolt and Block:
- Insert the hex bolt and block through the trunk pan holes if present. If not, remove the spare tire and use the hitch as a template to drill two (2) 1/2” holes in the trunk pan. Install the fasteners as shown.
Torque Specifications:
- Tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Seal Holes:
- Seal all trunk pan holes to prevent water or exhaust fumes from entering.
Reinstall Muffler:
- Attach the muffler to the three (3) rubber isolator hangers.
Reinstall Spare Tire:
- Place the spare tire back in the trunk.

Hardware List:

(2) Hex Bolts: 1/2”-13 x 1-1/2” GR5
(4) Conical Toothed Washers: 1/2”
(2) Carriage Bolts: 1/2”-13 GR5
(2) Blocks: 1/4” x 1” x 2”
(2) M8 x 1.25 x 35mm CL9.8 Bolts
(2) Blocks: 3/16” x 1-1/2” x 2”

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
If the hitch is removed, plug all holes in the trunk pan to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear safety glasses when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Drawbar:

Drawbar Kit: 3592 (or 3594 for Mazda 6 only)
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
