Name: Trailer Tow Hitch For 06-13 Suzuki Grand Vitara Basket Cargo Carrier Platform Hitch Lock and Cover
Brand: Draw-Tite
Price: 541.6 USD
Availability: InStock

Trailer Tow Hitch For 06-13 Suzuki Grand Vitara Basket Cargo Carrier Platform Hitch Lock and Cover

0 reviews - Write a review

$541.60

Stock: In Stock
Brand: Draw-Tite
Model: 75448 63153 63201 7010

Verify Product Fitment

Year

Make

Model

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Please wait...

Description

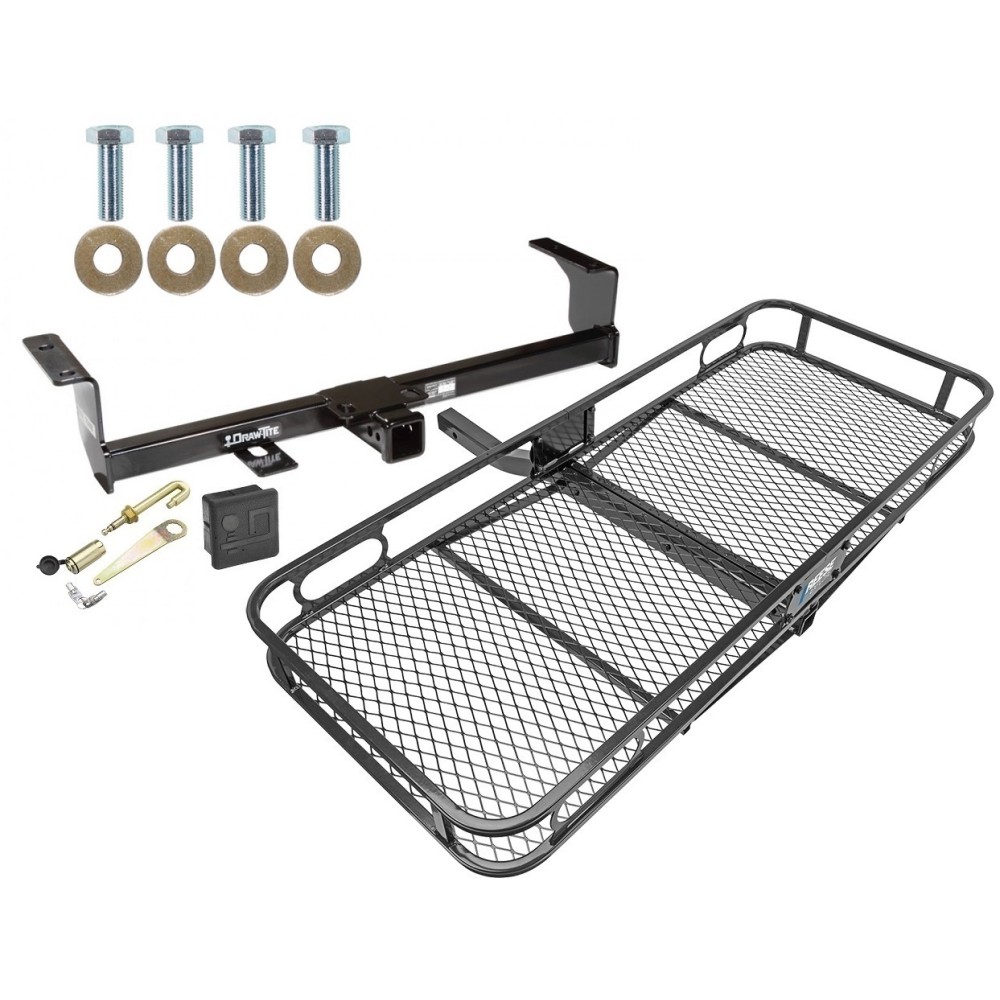

Includes Everything Pictured:
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2006 - 2013 Suzuki, Grand Vitara, Except 3 Dr Hatchback

Trailer Hitch Specs:

Part Number	75448
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	4,000 lbs
Max Tongue Weight	350/400 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 06 07 08 09 10 11 12 13 2006 2007 2008 2009 2010 2011 2012 2013

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	4,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	400 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Reviews

Questions & Answers

Be the first to ask a question.

Tags: 75448 , 63153 , 63201 , 7010 , Draw-Tite , Trailer , Tow , Hitch , 06-13 , Suzuki , Grand , Vitara , Basket , Cargo , Carrier , Platform , Hitch , Lock , and , Cover , 06 , 07 , 08 , 09 , 10 , 11 , 12 , 13 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013

Compatibility Chart:

Year Range	Make	Model	Style

Get Expert Help

Install Notes

Installation Instructions for Suzuki Grand Vitara

Part Numbers:

44543
75448
87007

Tools Required:

Wrenches: 19mm
Torque Wrench
Utility Knife
Drill Bits: None

Wiring Access Location:

SUV3, SUV4

Step-by-Step Instructions:

Notify Vehicle Owner:
- Inform the vehicle owner that minor trimming of the fascia is required for proper hitch installation.
Mark Trimming Area:
- Using a felt-tipped pen, measure and mark the area to be trimmed on the bottom inside section of the license plate mounting area, as described in Figure 1.
Trim the Fascia:
- Carefully cut out the marked area of the fascia using a utility knife.
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the two rearmost weldnuts in the bottom of the frame rail on both sides.
Install Fasteners:
- Loosely install the M12 hex bolts and conical toothed washers (4 total).
- Center the hitch on the fasteners.
Tighten Fasteners:
- Using a torque wrench, tighten all M12 CL8.8 fasteners to 76 lb-ft (102 N·m).

Hardware List:

(4) M12 x 1.25 x 35mm CL8.8 Hex Bolts
(4) Conical Toothed Washers

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,587 kg), Max Tongue Weight 350 lbs (158 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
