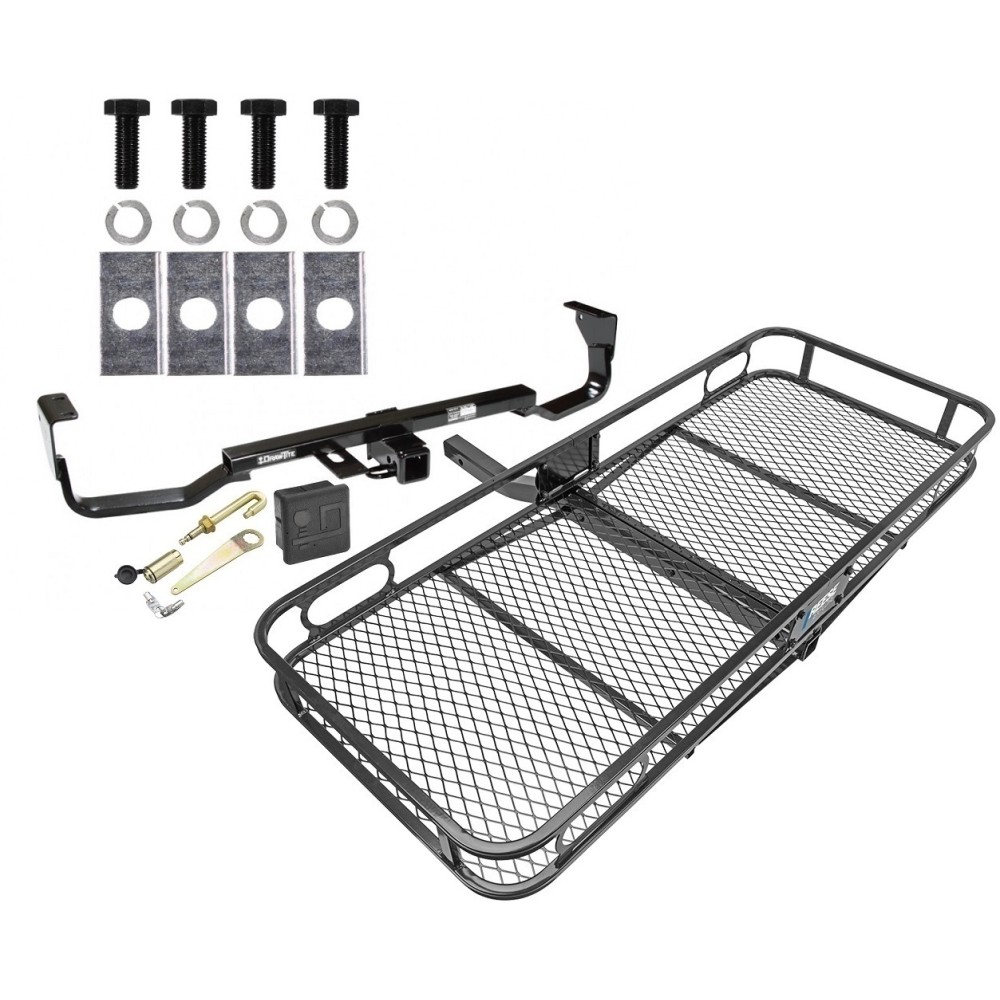

Trailer Tow Hitch For 07-09 Hyundai Santa Fe Basket Cargo Carrier Platform Hitch Lock and Cover

Part Number	75471
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	525 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:



Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

• 5.5" side rails to retain cargo
• Fits 2" trailer hitch receives
• 2-1/2"" Shank Rise elevates the platform
• 12-3/4" Distance from hitch pin to the edge of carrier
• Mesh floor for easy cleanup
• Up to 500 lbs. capacity
• Up to 60" x 24" (inside dimensions) cargo platform
• Black powder coat finish resists corrosion
• Bikes clips and fully functional light systems available
• 1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft    STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head    STEP 3:
Secure ball mount or hitch-mounted accessory with locking head

Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 07 08 09 2007 2008 2009
