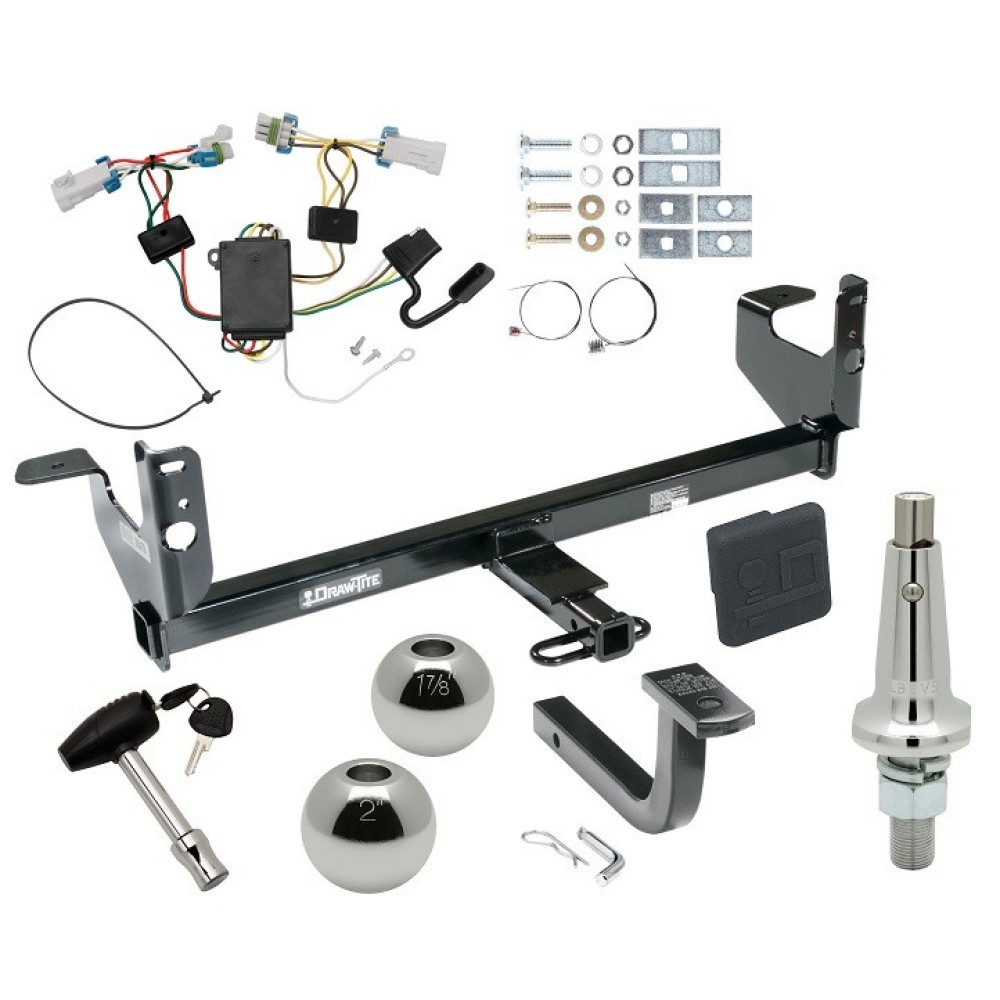

- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Interchangeable Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 07-09 Saturn Aura Ultimate Package w/ Wiring Draw Bar Kit Interchange 2" 1-7/8" Ball Lock and Cover Install Notes
Installation Instructions for Saturn Aura and Chevrolet Malibu
Part Numbers:
- 36479
- 90194
- 06658
- 36327 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 11/16", 3/4"
- Drill Bits: 1/2", 3/8"
- Pull Wires (Provided)
Step-by-Step Instructions:
For Vehicles Without Existing Holes:
-
Position Hitch:
- Raise the hitch into position and align it over the bumper attachment bolt.
- Ensure the bracket sits flat against the frame rail.
-
Drill Holes:
- Mark and center punch the hole locations using the hitch as a template.
- Drill two 3/8" holes through the end panel. Remove burrs.
-
Install Hardware:
- Tape spacers into position behind the end panel.
- Feed pull wires through the spacers and attach carriage bolts.
- Pull reinforcement plates and carriage bolts into position.
-
Secure Hitch:
- Install conical washers and nuts onto the carriage bolts.
- Tighten all fasteners according to torque specifications.
For Vehicles With Existing Holes:
-
Prepare Hardware:
- Tape spacers into position.
- Feed pull wires through the spacers, attach carriage bolts, and pull into place.
-
Install Hitch:
- Raise the hitch into position.
- Secure with conical washers and nuts.
-
Drill Frame Holes:
- Drill two 1/2" holes through the frame rail using the hitch as a guide.
-
Install Frame Hardware:
- Feed pull wires through the hitch bracket and frame rail.
- Attach spacers and carriage bolts to the pull wires and pull into position.
- Secure with lock washers and nuts.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lbs (47 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m).
Hardware List:
- (2) Carriage Bolt 3/8"-16 x 1.50" GR5
- (2) Carriage Bolt 1/2"-13 x 1.75" GR5
- (2) Spacer 1/4" x 1" x 2" (Square Hole)
- (2) Spacer 1/4" x 1" x 3" (Square Hole)
- (2) Conical Washer 3/8"
- (2) Conical Washer 1/2"
- (2) Lock Washer 1/2"
- (2) Nut 3/8"-16
- (2) Nut 1/2"-13
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118423
Tools Required:
- Phillips Head Screwdriver
- Drill (3/32” Drill Bit)
- Trim Panel Remover
Step-by-Step Instructions:
-
Open the Trunk:
- Open the trunk and temporarily disconnect the driver’s side taillight housing by unscrewing the three wing nuts holding it in place.
-
Route the T-Connector:
- Route the T-Connector with the yellow wire up from underneath the vehicle through the opening between the bumper and body panel.
-
Connect the Driver-Side T-Connector:
- Separate the vehicle’s taillight connectors and insert the T-Connector in between the separated connectors.
- Ensure the mating surfaces of the vehicle wiring connectors match the T-Connector ends.
- Verify all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
-
Passenger-Side Installation:
- Repeat steps 1 through 3 on the passenger’s side using the T-Connector end with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
- Avoid drilling into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into any exposed surfaces.
-
Route the 4-Flat Connector:
- Route the T-Connector harness 4-flat end to the center of the vehicle.
- Secure the wire and converter to the vehicle crossmember or other mounting points using the provided tie straps.
-
Reconnect the Vehicle’s Taillights:
- Reinstall the vehicle’s taillight housings, ensuring all connections are secure.
-
Test the Installation:
- Test and verify the installation with a test light or trailer to ensure functionality.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (4.2 amps)
Safety Notes:
- All connections must be complete for the T-Connector to function properly.
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Mount the 4-flat end in an accessible location with a bracket or electrical box (not included).
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
