Trailer Tow Hitch w/ 4 Bike Rack For 07-11 Honda CR-V tilt away adult or child arms fold down carrier w/ Lock and Cover

Trailer Tow Hitch w/ 4 Bike Rack For 07‑11 Honda CR‑V tilt away adult or child arms fold down carrier w/ Lock and Cover

Model: 24792 1393100G 580407 2211

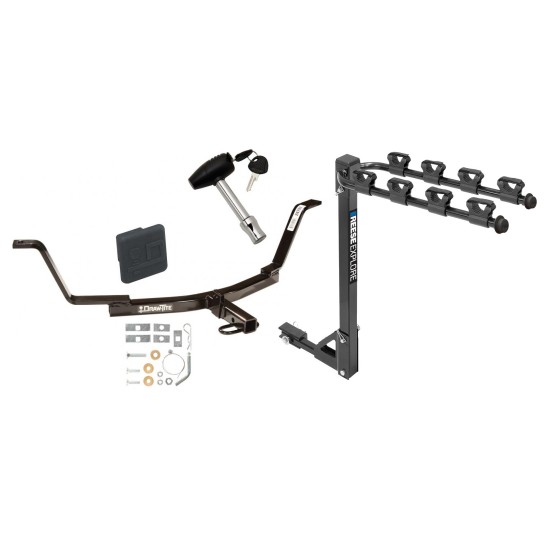

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2007 - 2011 Honda, CR-V, All Styles

Trailer Hitch Specs:

Part Number	24792
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-1-4" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011

See Full Description

$305 ¹⁷ $488.93 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$488.93 $305 ¹⁷

Pay in 4 interest-free installments of $76.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $76.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 24792 1393100G 580407 2211
Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	24792
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-1-4" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 24792 , 1393100G , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 4 , Bike , Rack , 07-11 , Honda , CR-V , tilt , away , adult , or , child , arms , fold , down , carrier , Lock , and , Cover , 07 , 08 , 09 , 10 , 11 , 2007 , 2008 , 2009 , 2010 , 2011

Get Expert Help

Trailer Tow Hitch w/ 4 Bike Rack For 07-11 Honda CR-V tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes

Installation Instructions for Honda Accord Sedan and Acura 3.2 CL & TL

Part Numbers:

60913
24791
77165

Wiring Access Location:

Tools Required:

Wrenches: 3/4”
Drill Bits: None

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Exhaust:
- Remove the rubber isolators from the muffler hangers to lower the exhaust.
Prepare Bolt and Plate Assembly:
- Thread the bolt leader onto the 1-1/2” carriage bolt and insert it through the hole in the reinforcing plate.
- Fishwire the bolt leader and assembly through the access hole in the bottom of the frame and pull it through the proper hole in the frame.
- Repeat for the other side.
Position Hitch:
- Raise the hitch into position.
- Insert the 2” carriage bolt along with the square hole spacer, round hole spacer, and hitch's mounting tab through the vehicle's tie-down hook in the order shown in the illustration.
- Install the conical toothed washer and nut and hand-tighten to hold the hitch in place.
Attach Hitch to Frame Straps:
- Fishwire the bolt leaders through the holes in the frame straps.
- Carefully remove the bolt leaders without pushing the bolt assemblies back into the frame channels.
- Install conical toothed washers and nuts.
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.

Hardware List:

(2) Carriage Bolts: 1/2”-13 x 1-1/2” GR5
(2) Reinforcing Plates: 1” x 3” x 1/4”
(2) Bolt Leaders
(3) Conical Toothed Washers: 1/2”
(3) Nuts: 1/2”-13 GR5
(1) Carriage Bolt: 1/2”-13 x 2-1/2”
(1) Square Hole Spacer: 1” x 2” x 1/4”
(1) Round Hole Spacer: 1” x 2” x 1/4”

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear safety glasses when working beneath the vehicle.
Do not use a torch to cut access or attachment holes.

Drawbar:

Drawbar Kit: 3592
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

Check the hitch frequently to ensure all fasteners remain tight.
If required, modify the frame access hole using the recommended procedures to ensure hardware fits through.
