Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit

Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Trailer Tow Hitch For 07-11 Suzuki SX4 Hatchback Trailer Hitch Tow Receiver w/ Wiring Harness Kit
$233.50
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 24817 118456

Applies to this product only

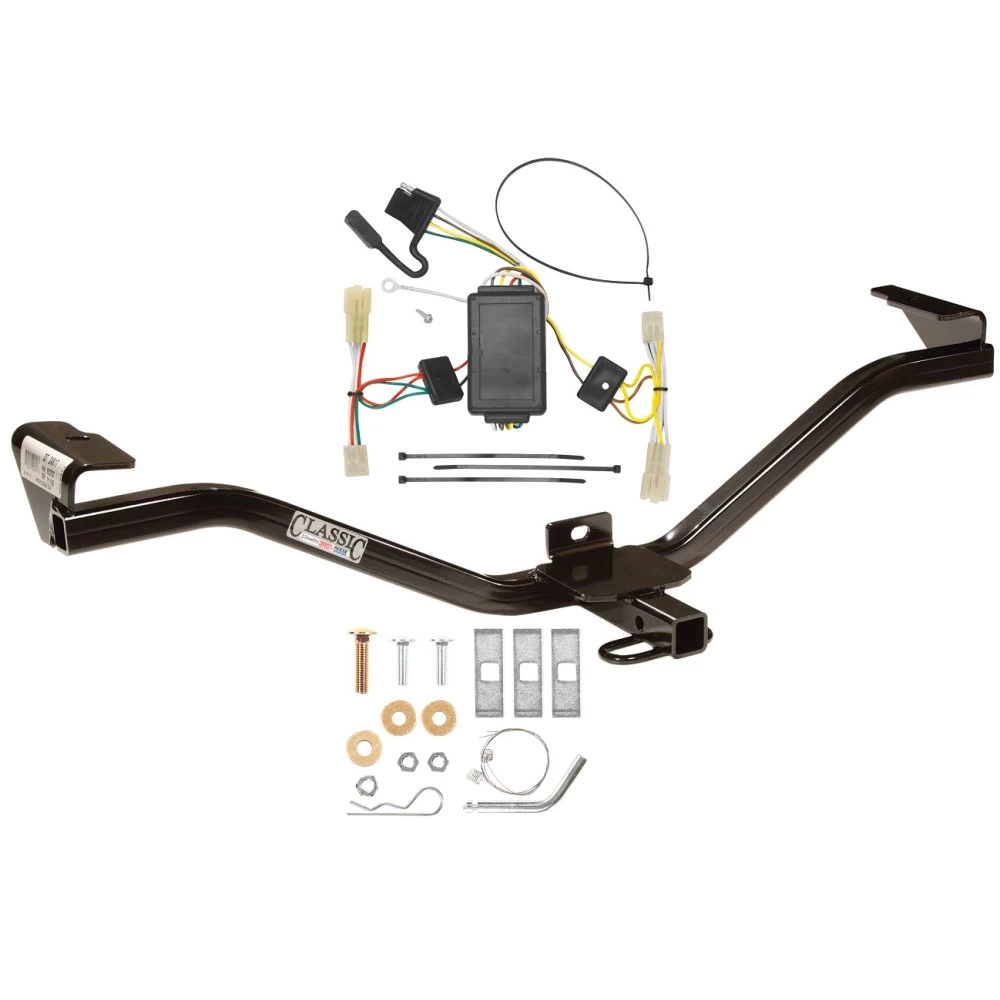

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)

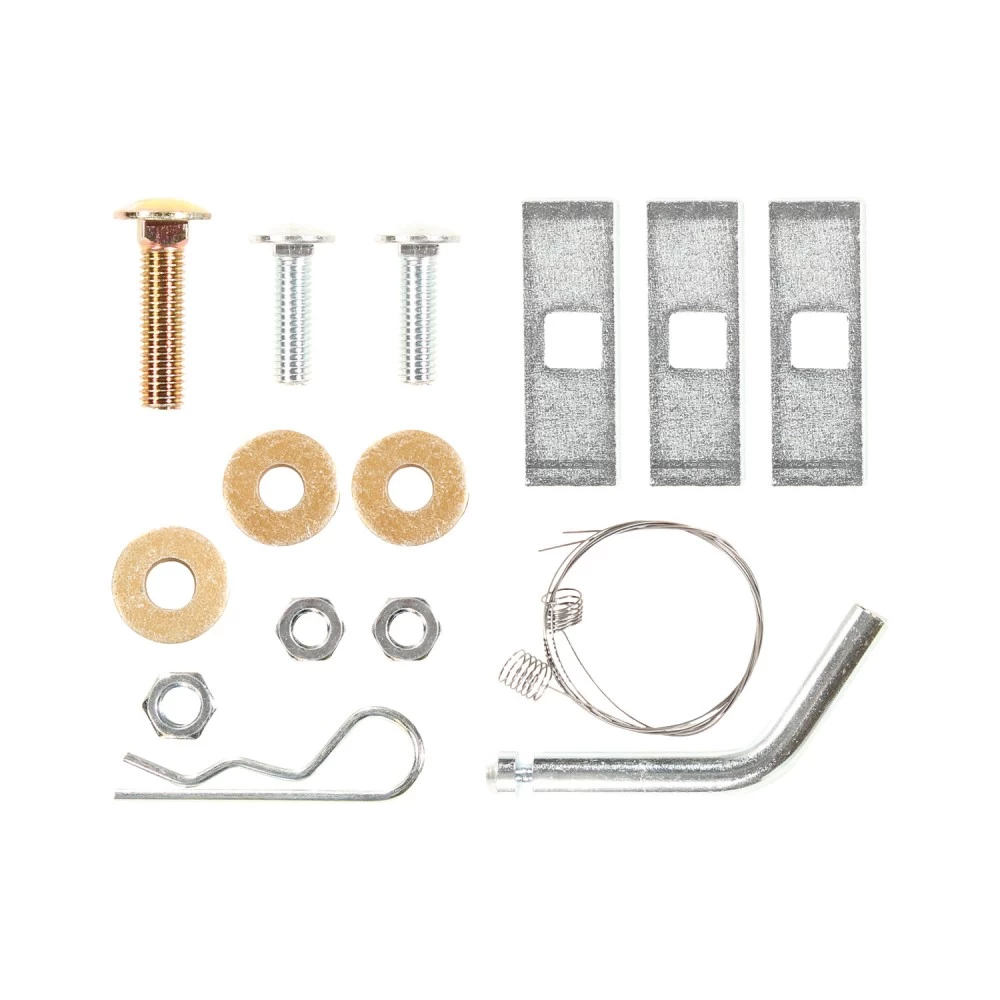

Installation Hardware
Installation Instructions


Fits The Following Vehicles

2007 - 2011 Suzuki, SX4, Hatchback

Trailer Hitch Specs:


Part Number 24817
Brand Draw-Tite
Finish Black Powdercoat
Class 1
Receiver size opening 1-1/4"
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution 0 lbs
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions


Wiring Kit Specs:



Part Number 118456
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011

Specification
Attachment Location Rear
Color Black
Drawbar Included No
Drilling Required Yes
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
Wiring Included Yes
