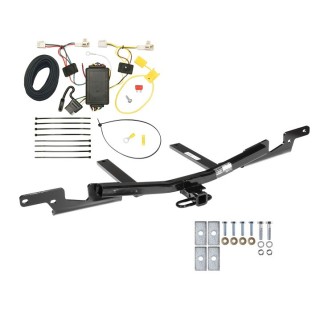

Reese Trailer Tow Hitch For 07‑11 Toyota Camry Sedan w/ Wiring Harness Kit
Model: 06397 118482Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2011 Toyota, Camry, 4 Dr. Sedan, Except Hybrid
2007 - 2011 Toyota, Camry Hybrid, 4 Dr. Sedan
Trailer Hitch Specs:
Part Number | 06397 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 300 lbs |
Warranty | Lifetime |
Part Number | 118482 |
Brand | Tekonsha |
Warranty | 1 Year |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011
$284 42 $436.23 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$436.23 $284 42
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06397 118482
- Includes: Class 2 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | Yes |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 300 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Wiring Included | Yes |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2011 Toyota, Camry, 4 Dr. Sedan, Except Hybrid
2007 - 2011 Toyota, Camry Hybrid, 4 Dr. Sedan
Trailer Hitch Specs:
Part Number | 06397 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 300 lbs |
Warranty | Lifetime |
Part Number | 118482 |
Brand | Tekonsha |
Warranty | 1 Year |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011
Get Expert Help
Reese Trailer Tow Hitch For 07-11 Toyota Camry Sedan w/ Wiring Harness Kit Install Notes
Installation Instructions for Toyota Camry, Toyota Camry Hybrid, and Lexus ES350
Part Numbers:
- 90152
- 36416
- 06397
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 12mm, 14mm, 17mm
- Drill with 1/2" Drill Bit
- Pull Wire (provided)
Step-by-Step Instructions:
-
Remove Spare Tire:
- Take out the spare tire from the inside of the trunk.
-
Lower Exhaust:
- Remove the rubber exhaust hangers to lower the exhaust.
-
Remove Fascia Rivets:
- Detach the rivets from the fascia tabs between the trunk pan and rear fascia.
- Remove any plastic under-covering beneath the trunk pan if present.
-
Remove Existing Bracket:
- Remove the existing bracket from the driver-side frame rail and rear end panel. Return it to the vehicle owner.
-
Install Hitch:
- Raise the hitch into position.
- Secure it with M10 hex bolts and 3/8" conical toothed washers into the existing weldnuts.
- If weldnuts are absent on the passenger side, use the provided nuts and washers.
-
Drill Holes:
- Using the hitch as a template, drill two 1/2" holes through the trunk pan.
-
Prepare Trunk Pan:
- From inside the trunk, scrape away the foam rubber material around the drilled holes.
-
Install Additional Fasteners:
- Insert the 1/2" hex bolts, blocks, lock washers, and nuts through the drilled holes and secure.
-
Reinstall Spare Tire:
- Replace the spare tire inside the trunk.
-
Reattach Components:
- Reattach the rubber exhaust hangers.
- Insert the fascia rivets back into the fascia tabs.
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
- Tighten all M10 CL8.8 fasteners to 42 ft-lb (57 N*m).
Hardware List:
- (4) M10 x 1.25 x 40mm Hex Bolts (CL8.8)
- (4) 3/8" Conical Toothed Washers
- (2) 1/2"-13 x 2" GR5 Hex Bolts
- (2) 1/2" Lock Washers
- (2) 1/2"-13 Hex Nuts
- (4) Blocks, 1/4" x 1.5" x 3.0"
- (2) 7/16" Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36416F
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for T-Connector Adapter for Toyota (Venza, Camry) and Mitsubishi Outlander
Part Numbers:
- 118482
Tools Required:
- Test Probe
- Trim Panel Puller
- Drill (3/32” Drill Bit)
- 10mm Socket & Ratchet
- Wire Cutter
- Wire Crimper
- Phillips Head Screwdriver
Step-by-Step Instructions:
Toyota Venza / Mitsubishi Outlander:
- Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the threshold, trunk floor panels, and trays.
- Remove the cargo loops on both sides to allow the trim panels to be pulled away carefully.
Toyota Camry:
- Prepare the Trunk Area:
- Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the taillight wiring harness.
Common Steps for All Vehicles:
-
Locate the Taillight Wiring Harness:
- On the driver’s side, locate the vehicle’s taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Check that the mating surfaces match the T-Connector ends, and clean all connectors if necessary.
-
Connect the T-Connector:
- Attach the T-Connector end with the yellow and brown wires to the driver’s side taillight harness.
- Ensure the connectors are fully inserted with the locking tabs engaged.
-
Route the Passenger-Side Wiring:
- Route the T-Connector end with the green wire below the threshold cover to the passenger’s side taillight housing.
- Repeat step 3 using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember.
- Clean the grounding area, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Mount the Black Converter Box:
- On the driver’s side, locate a flat surface and mount the black converter box using the provided double-sided tape.
-
Connect the Power Wire:
- Attach the provided black 12-gauge wire to the red wire from the converter box.
- Route the black wire through a grommet or along the existing wiring to the vehicle battery.
- Toyota Camry Hybrid: The battery is located inside the trunk.
Warning:
- Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the provided yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Secure the Wiring:
- Use the provided cable ties to secure the harness and prevent damage or rattling.
- Avoid areas where the wire may be pinched, cut, or melted.
-
Reassemble the Vehicle:
- Reinstall all panels, thresholds, storage covers, and floor coverings removed during the installation.
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all installation instructions and vehicle warnings.
Manufacturer Notes:
- Store the 4-flat connector in the side storage compartment when not in use.
- Refer to the vehicle owner’s manual for additional details.
