Trailer Tow Hitch For 07-12 Nissan Sentra Platform Style 2 Bike Rack w/ Hitch Lock and Cover

Trailer Tow Hitch For 07‑12 Nissan Sentra Platform Style 2 Bike Rack w/ Hitch Lock and Cover

Model: 24794 63134 580407 2211

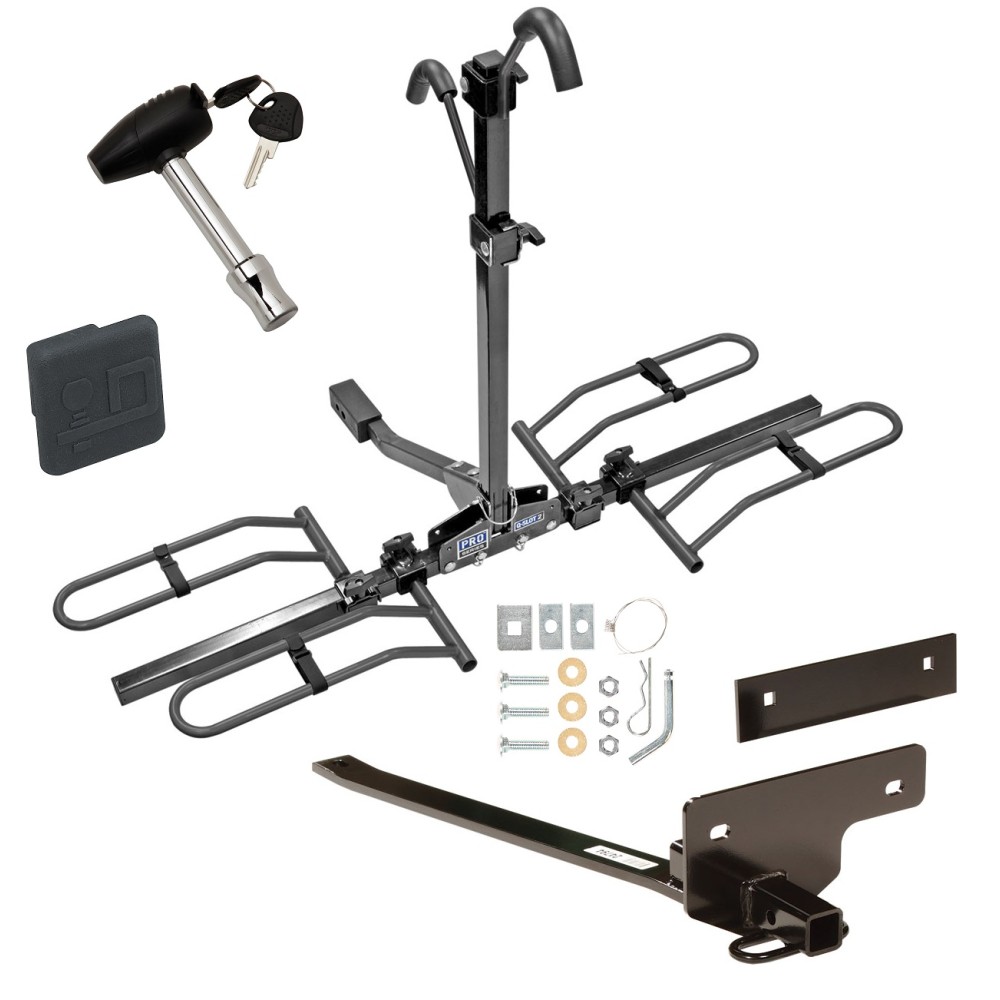

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2007 - 2012 Nissan, Sentra, All Styles

Trailer Hitch Specs:

Part Number	24794
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012

See Full Description

$388 ⁰⁹ $622.90 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$622.90 $388 ⁰⁹

Pay in 4 interest-free installments of $97.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $97.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 24794 63134 580407 2211
Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Year Range	Make	Model	Style
2007 - 2012	Nissan	Sentra	Excluding SE-R
2007 - 2012	Nissan	Sentra	SE-R models

Showing 1 to 2 of 2 entries

Description

Part Number	24794
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	Yes
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 24794 , 63134 , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 07-12 , Nissan , Sentra , Platform , Style , 2 , Bike , Rack , Hitch , Lock , and , Cover , 07 , 08 , 09 , 10 , 11 , 12 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012

Get Expert Help

Trailer Tow Hitch For 07-12 Nissan Sentra Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes

Installation Instructions for Nissan Sentra

Part Numbers:

24794
60871
77166

Wiring Access Location:

PC3, PC4

Tools Required:

Wrenches: 3/4”
Drill Bits: 1/2”
Pull Wire (Provided)
Sealant

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Remove Spare Tire and Jack:
- Take out the spare tire and jack from the trunk.
Remove Plastic Rivets:
- Detach the two plastic rivets securing the fascia tabs to the vehicle. Use a screwdriver to remove the center of each rivet. Save the rivets for reinstallation.
Scrape Undercoating:
- Remove the undercoating from the bottom surface of the trunk reinforcement to ensure proper contact with the hardware.
Fishwire Carriage Bolt and Spacer:
- Attach the pull wire to a 1/2”-13 x 2” carriage bolt and a square hole spacer.
- Insert the assembly through the slot located behind the trunk reinforcement and pull it through to ensure the bolt and spacer are flat against the bottom.
Position Reinforcement Plate:
- Place the reinforcement plate inside the spare tire well, aligning the 1-1/2” length with the bottom of the trunk. Position it between the ribs as shown in the diagram.
Drill Holes:
- Drill two 1/2” holes through the trunk pan, using the reinforcement plate as a guide.
Install Carriage Bolts:
- Insert two carriage bolts through the reinforcement plate and the drilled holes.
- Place round hole spacers over the bolts on the opposite side of the bulkhead.
Attach Hitch:
- Lift the hitch into position, ensuring the spacers are sandwiched between the bulkhead and the hitch.
- Loosely secure the hitch with conical washers and hex nuts.
Attach to Trunk Reinforcement:
- Secure the hitch’s crossbar to the trunk reinforcement using conical washers and hex nuts.
Tighten Fasteners:
- Center the hitch on the vehicle.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Apply Sealant:
- Seal the carriage bolt attachment points inside the spare tire well to prevent water or exhaust fumes from entering the vehicle.
Reattach Components:
- Reinstall the plastic rivets to the fascia tabs.
- Replace the spare tire and jack in the trunk.

Hardware List:

(3) Carriage Bolts: 1/2”-13 x 2” GR5
(1) Spacer: 1/4” x 1-1/2” x 2” (Square Hole)
(2) Spacers: 1/4” x 1” x 2” (Round Hole)
(3) Conical Washers
(3) Hex Nuts: 1/2”-13

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
If the hitch is removed, plug all holes in the trunk pan to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always observe safety precautions and wear eye protection when working under the vehicle.
Do not cut access or attachment holes with a torch.

Drawbar:

Drawbar Kit: 3594
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

Check the hitch frequently to ensure all fasteners remain tight.
