Trailer Tow Hitch w/ 4 Bike Rack For 07-15 Ford Edge Lincoln MKX tilt away adult or child arms fold down carrier

Trailer Tow Hitch w/ 4 Bike Rack For 07‑15 Ford Edge Lincoln MKX tilt away adult or child arms fold down carrier

Model: 75992 1393100G

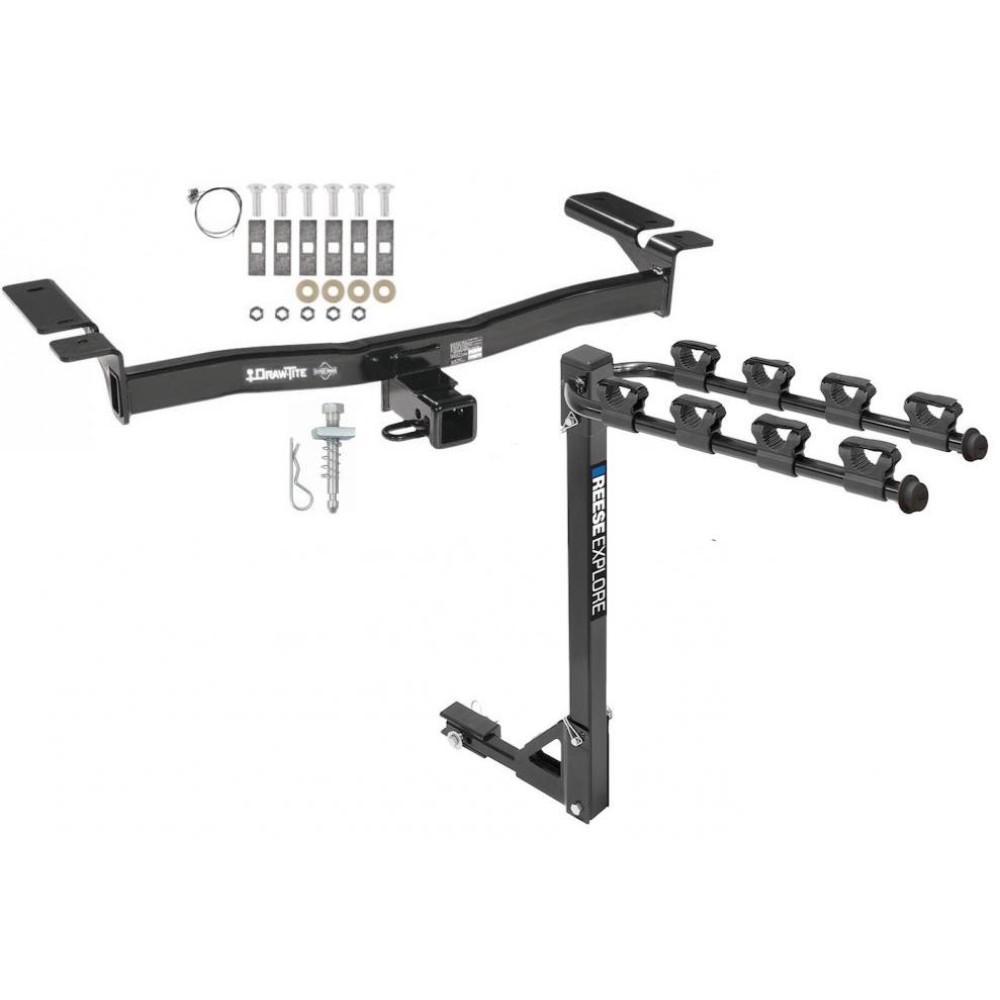

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2007 - 2014 Ford, Edge, Except Sport
2007 - 2015 Lincoln, MKX, All Styles

Trailer Hitch Specs:

Part Number	75992
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,000 lbs
Max GTW w/ weight distribution	4,000 lbs
Max Tongue Weight	400 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 07 08 09 10 11 12 13 14 15 2007 2008 2009 2010 2011 2012 2013 2014 2015

See Full Description

$363 ⁶⁴ $576.99 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$576.99 $363 ⁶⁴

Pay in 4 interest-free installments of $90.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $90.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75992 1393100G
Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	Yes
Gross Towing Weight	4,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	4,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	400 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	400 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	75992
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,000 lbs
Max GTW w/ weight distribution	4,000 lbs
Max Tongue Weight	400 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 75992 , 1393100G , Draw-Tite , Trailer , Tow , Hitch , 4 , Bike , Rack , 07-15 , Edge , Lincoln , MKX , tilt , away , adult , or , child , arms , fold , down , carrier , 07 , 08 , 09 , 10 , 11 , 12 , 13 , 14 , 15 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015

Get Expert Help

Trailer Tow Hitch w/ 4 Bike Rack For 07-15 Ford Edge Lincoln MKX tilt away adult or child arms fold down carrier Install Notes

Installation Instructions for Toyota Highlander and Highlander Hybrid (2020-Present)

Part Numbers:

75992
44763
CQT75992

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 17mm, 19mm

Wiring Access Location:

SUV3, SUV4

Step-by-Step Instructions:

Prepare Frame Rails:
- Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
- Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.
Position the Hitch:
- Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.
Install Fasteners:
- Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
- Ensure the toothed side of the washers faces the hitch.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).
Verify Installation:
- Double-check that all bolts are securely tightened, and the hitch is properly aligned.

Hardware List:

(6) M12 x 1.25 x 40mm CL10.9 Bolts
(6) 1/2" Conical Toothed Washers

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

Installation time is approximately 30 minutes for a professional installer.
If you encounter difficulty installing, consult a professional or contact customer support.
