Trailer Tow Hitch For 07-23 Dodge Freightliner 10-24 Mercedes-Benz Sprinter 2500 3500 without Factory Step Bumper

Trailer Tow Hitch For 07‑23 Dodge Freightliner 10‑24 Mercedes‑Benz Sprinter 2500 3500 without Factory Step Bumper

Model: 75549

This Hitch Fits The Following Vehicles:

2010 - 2024     Mercedes-Benz, Sprinter 2500, 144" & 170" Wheelbase, without Factory Step Bumper
2010 - 2024     Mercedes-Benz, Sprinter 3500, 144" & 170" Wheelbase, without Factory Step Bumper
2007 - 2023 Freightliner, Sprinter 2500, 144" & 170" Wheelbase, without Factory Step Bumper
2007 - 2023     Freightliner, Sprinter 3500, 144" & 170" Wheelbase, without Factory Step Bumper
2007 - 2009    Dodge, Sprinter 2500, 144" & 170" Wheelbase, without Factory Step Bumper
2007 - 2009    Dodge, Sprinter 3500, 144" & 170" Wheelbase, without Factory Step Bumper

Trailer Hitch Specs:

Part Number	75549
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	600 / 750 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024

See Full Description

$293 ⁷⁴ $458.69 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$458.69 $293 ⁷⁴

Pay in 4 interest-free installments of $73.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $73.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75549
UPC: 742512755497
Includes: Class 4 Trailer Tow Hitch

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	7,500 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	750 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	75549
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	600 / 750 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: Trailer Tow Hitch For 07-23 Dodge Freightliner 10-24 Mercedes-Benz Sprinter 2500 3500 without Factory Step Bumper , 75549 , Sprinter Van

Get Expert Help

Trailer Tow Hitch For 07-23 Dodge Freightliner 10-24 Mercedes-Benz Sprinter 2500 3500 without Factory Step Bumper Install Notes

Installation Instructions for Dodge Sprinter, Freightliner Sprinter, and Mercedes Sprinter
(Van and Cab & Chassis Models)

Part Numbers:

75549
87441
44576
75239 UH

Tools Required:

Wrenches: 18mm, 19mm
Drill Bits: None

Wiring Access Location:

SUV1, SUV2

Step-by-Step Instructions:

For Sprinter Van Models:

Remove Tie-Down Hook:
- Detach the tie-down hook from the passenger side frame rail.
- Return the tie-down hook and fasteners to the vehicle owner.
Position the Hitch:
- Raise the hitch into position.
- Install the fasteners as shown:
  - Insert a hex bolt and lock washer through the round hole in the hitch bracket.
  - Insert hex bolts and toothed washers through the oblong slots in the hitch bracket, on both sides.

For Sprinter Cab & Chassis Models:

Remove Wheel Chock Bracket (if present):
- Remove the wheel chock bracket from the driver side frame rail and retain it for reinstallation.
- Discard the bolts.
Position the Hitch:
- Raise the hitch and the wheel chock bracket into position.
- Install the fasteners as shown:
  - Insert a hex bolt and lock washer through the round hole in the hitch bracket.
  - Insert hex bolts and toothed washers through the oblong slots in the hitch bracket, on both sides.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 x 1.75 CL8.8 fasteners to 68 lb-ft (92 N·m).

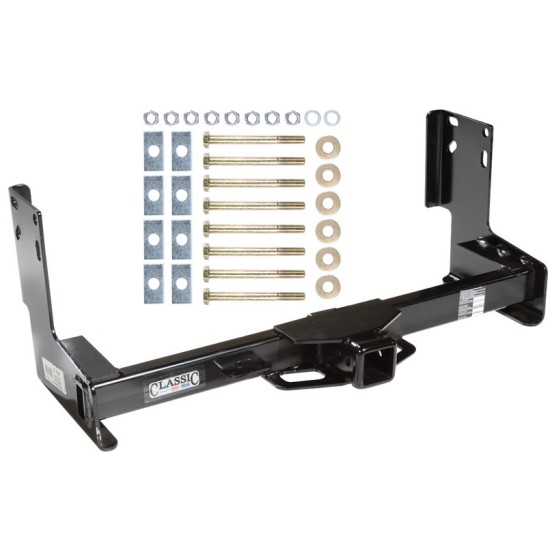

Hardware List:

(8) Hex Bolts M12 x 1.75 x 120mm CL8.8
(8) 1/4” x 1” x 2” Spacer Blocks
(6) 1/2” Toothed Washers
(8) Hex Nuts M12 x 1.75
(2) 1/2” Lock Washers

Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Note:

This hitch is not compatible with vehicles that have a 30-3/8” wide frame measured outside to outside.
