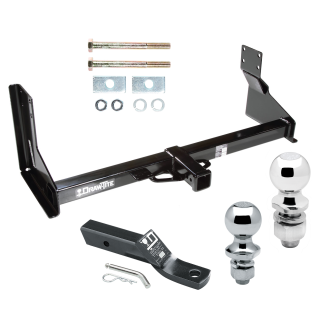

Trailer Tow Hitch For 07‑24 Mercedes‑Benz Freightliner 07‑09 Dodge Sprinter 2500 3500 Receiver w/ 1‑7/8" and 2" Ball
Model: 75601 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2007 - 2009 Dodge, Sprinter 2500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2007 - 2009 Dodge, Sprinter 3500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2007 - 2022 Freightliner, Sprinter 2500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2007 - 2022 Freightliner, Sprinter 3500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2010 - 2024 Mercedes-Benz, Sprinter 2500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2010 - 2024 Mercedes-Benz, Sprinter 3500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
Trailer Hitch Specs:
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$312 17 $485.92 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$485.92 $312 17
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $78.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75601 23 63845 63816
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 7,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 750 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2007 - 2009 Dodge, Sprinter 2500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2007 - 2009 Dodge, Sprinter 3500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2007 - 2022 Freightliner, Sprinter 2500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2007 - 2022 Freightliner, Sprinter 3500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2010 - 2024 Mercedes-Benz, Sprinter 2500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
2010 - 2024 Mercedes-Benz, Sprinter 3500, w/Factory Step Bumper Excluding Models w/30-3/8” Frame Width
Trailer Hitch Specs:
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 07-24 Mercedes-Benz Freightliner 07-09 Dodge Sprinter 2500 3500 Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Dodge Sprinter, Mercedes Sprinter, and Freightliner Sprinter (with Factory Step Bumper)
Part Numbers:
- 44591
- 75601
- 87456
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Prepare Bumper Mounting Bolts:
- Remove all nuts from the existing bumper mounting bolts (3 per side). Do not remove the bolts yet.
- If the bumper mounting bolts are pointing inboard, turn each bolt one at a time so they point outboard, ensuring the bolt heads are flush with the outboard side of the frame rails.
- Note: Turning bolts one at a time prevents the bumper from falling.
-
Position the Hitch:
- Raise the hitch into position.
- Push the bumper mounting bolts the rest of the way through the hitch brackets.
-
Secure Hitch with Fasteners:
- Reinstall the flange nuts removed in Step 1.
- Install the additional bolts as shown in the diagram:
- Insert M12 bolts, lock washers, spacers, and nuts on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (2) M12 x 1.75 x 120mm CL8.8 Hex Bolts
- (2) 1/2" Lock Washers
- (2) 7/16" x 1" x 2" Spacers
- (2) M12 x 1.75 Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Note:
- This hitch will not fit vehicles with a 30-3/8" frame width measured outside-to-outside.
