Product Details
- Brand: Draw-Tite
- Model: 364790 119148 63821

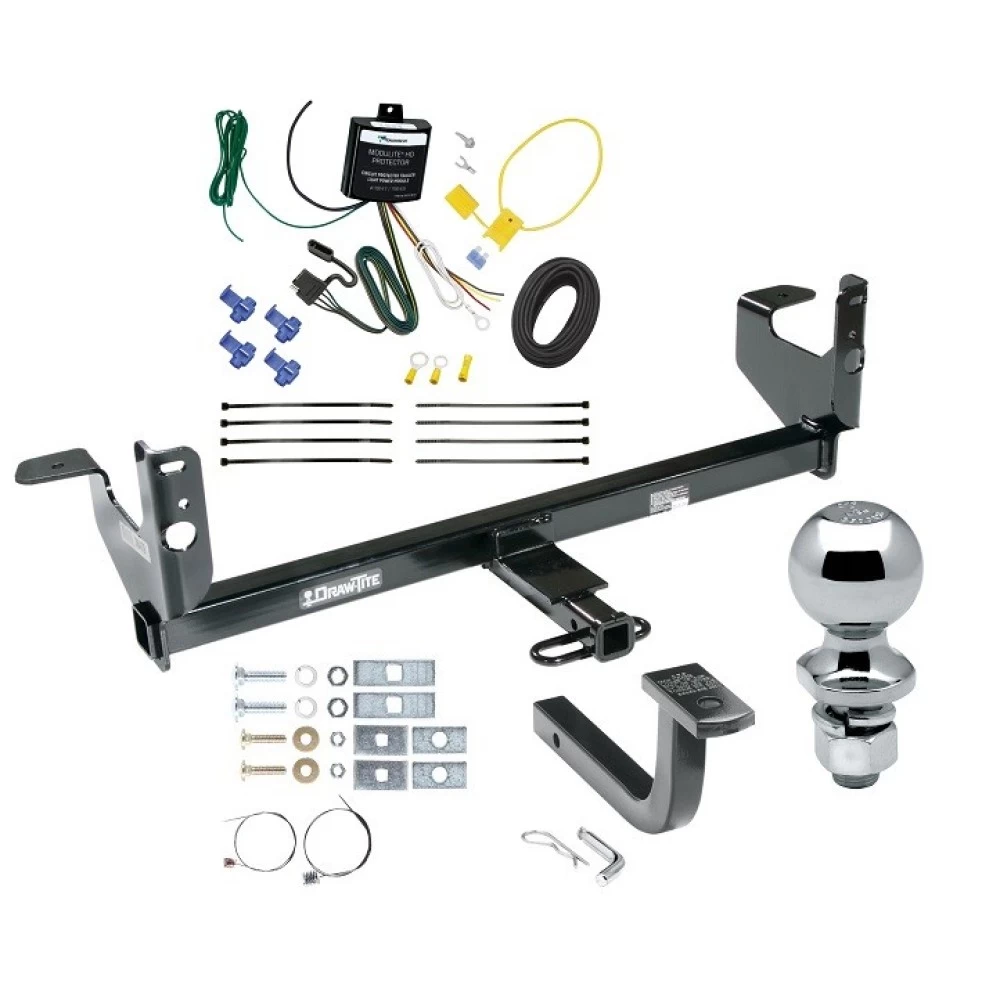

- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, ModuLite HD Protector Trailer Light Power Module & Installation Kit, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|
Get Expert Help
Trailer Tow Hitch For 08-12 Chevy Malibu LTZ Complete Package w/ Wiring Draw Bar Kit and 2" Ball Install Notes
Installation Instructions for Saturn Aura and Chevrolet Malibu
Part Numbers:
- 36479
- 90194
- 06658
- 36327 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 11/16", 3/4"
- Drill Bits: 1/2", 3/8"
- Pull Wires (Provided)
Step-by-Step Instructions:
For Vehicles Without Existing Holes:
-
Position Hitch:
- Raise the hitch into position and align it over the bumper attachment bolt.
- Ensure the bracket sits flat against the frame rail.
-
Drill Holes:
- Mark and center punch the hole locations using the hitch as a template.
- Drill two 3/8" holes through the end panel. Remove burrs.
-
Install Hardware:
- Tape spacers into position behind the end panel.
- Feed pull wires through the spacers and attach carriage bolts.
- Pull reinforcement plates and carriage bolts into position.
-
Secure Hitch:
- Install conical washers and nuts onto the carriage bolts.
- Tighten all fasteners according to torque specifications.
For Vehicles With Existing Holes:
-
Prepare Hardware:
- Tape spacers into position.
- Feed pull wires through the spacers, attach carriage bolts, and pull into place.
-
Install Hitch:
- Raise the hitch into position.
- Secure with conical washers and nuts.
-
Drill Frame Holes:
- Drill two 1/2" holes through the frame rail using the hitch as a guide.
-
Install Frame Hardware:
- Feed pull wires through the hitch bracket and frame rail.
- Attach spacers and carriage bolts to the pull wires and pull into position.
- Secure with lock washers and nuts.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lbs (47 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m).
Hardware List:
- (2) Carriage Bolt 3/8"-16 x 1.50" GR5
- (2) Carriage Bolt 1/2"-13 x 1.75" GR5
- (2) Spacer 1/4" x 1" x 2" (Square Hole)
- (2) Spacer 1/4" x 1" x 3" (Square Hole)
- (2) Conical Washer 3/8"
- (2) Conical Washer 1/2"
- (2) Lock Washer 1/2"
- (2) Nut 3/8"-16
- (2) Nut 1/2"-13
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Installation Instructions for Modulite® HD Protector Vehicle Wiring
Part Number:
- 119148
Tools Required:
- Phillips Head #2 Screwdriver
- Wire Cutters
- Wire Strippers/Wire Crimpers
- Tester or Volt Meter
- Socket & Ratchet Set
- Drill with 3/32” Drill Bit
- Double-Sided Tape
Step-by-Step Instructions:
Tow Vehicle Inputs - Determination:
- Disconnect and isolate the vehicle's negative battery terminal.
- Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
- Splice the tow harness input wires to the vehicle as determined.
- Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.
Harness Installation:
- Determine the mounting location of the module and secure it using the double-sided tape provided.
- Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
- Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
- Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15 amp fuse yet.
- Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.
Completion:
- Secure the harness with cable ties provided to prevent damage or rattling.
- Reconnect the vehicle's negative battery cable.
- Insert the 15 amp fuse into the fuse holder and close the cap.
- Test the installation using a test light or trailer. Check each function independently and in combination.
Hardware List:
- 8 × Cable Ties, 8.5”
- 1 × 15 AMP Fuse
- 2 × Ring Terminals
- 1 × Fuse Holder
- 2 × Yellow Butt Connectors
- 1 × Self-Tapping Screw
- 4 × Blue Taps
- 1 × Spade Terminal
Wiring Outputs:
- White Wire: Ground
- Brown Wire: Tail
- Yellow Wire: Left Turn/Brake
- Green Wire: Right Turn/Brake
- Red Wire: Stop (for 3-wire systems only)
Safety Notes:
- Always read and follow all warnings and instructions included with the product and the vehicle's manual.
- Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
- Wear safety glasses and use all necessary safety precautions during installation.
Troubleshooting Guide:
- 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
- No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.
Specifications:
- Installation Time: Approximately 45 minutes
- Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
