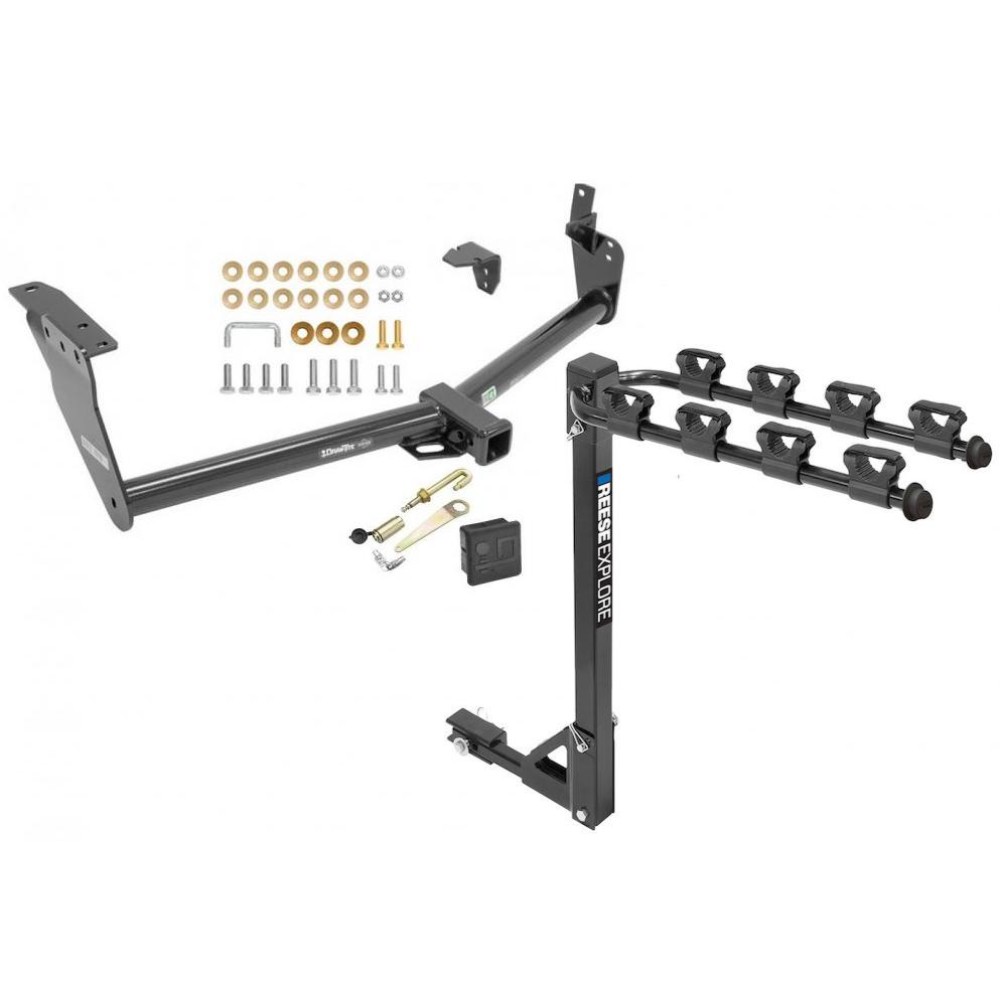

Trailer Tow Hitch w/ 4 Bike Rack For 09‑17 Infiniti FX35 FX50 QX70 FX37 tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 75778 1393100G 63201 7010Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2012 Infiniti, FX35, All Styles
2009 - 2013 Infiniti, FX50, All Styles
2013 Infiniti, FX37, All Styles
2014 - 2017 Infiniti, QX70, All Styles
Trailer Hitch Specs:
| Part Number | 75778 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 14 15 16 17 2009 2010 2011 2012 2013 2014 2015 2016 2017
$412 06 $662.69 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$662.69 $412 06
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $103.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75778 1393100G 63201 7010
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2012 Infiniti, FX35, All Styles
2009 - 2013 Infiniti, FX50, All Styles
2013 Infiniti, FX37, All Styles
2014 - 2017 Infiniti, QX70, All Styles
Trailer Hitch Specs:
| Part Number | 75778 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 14 15 16 17 2009 2010 2011 2012 2013 2014 2015 2016 2017
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 09-17 Infiniti FX35 FX50 QX70 FX37 tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Infiniti FX35, FX37, FX50, and QX70
Part Numbers:
- 44692
- 75778
- 87639
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Round File
- Tape
- Short Phillips Head Screwdriver
- Flat-Blade Screwdriver
- Wrenches: 10mm, 12mm, 13mm, 14mm, 17mm, 19mm, 9/16"
- Drill Bits: 7/16"
Step-by-Step Instructions:
-
Remove Splash Guards:
- Remove splash guards from both driver and passenger side wheel wells by removing three Phillips head screws and one push pin per side (see Figure 2). Retain for reinstallation.
-
Remove Appearance Panels:
- Detach panels from both sides by removing push pins and M6 bolts (see Figure 3) to access the frame rails. Return panels and fasteners to the vehicle owner.
-
Remove Tow Hook:
- Remove the driver-side tow hook by unscrewing four M10 fasteners. Return the tow hook and fasteners to the vehicle owner.
-
Remove Suspension Damper:
- Remove the suspension damper on the driver’s side for wrench clearance to access the forward-most fastener.
-
Detach Passenger Side Bolts:
- Remove two M8 hex bolts from the passenger side frame rail (rearward of the exhaust hanger bracket). Discard these bolts.
-
Raise Hitch into Position:
- Install hitch using the existing weld nuts on the frame, except for the bolt-on bracket.
-
Torque Fasteners:
- Tighten fasteners to the specified torque:
- M8 x 1.25 CL10.9 fasteners: 25 lb-ft (34 N*m)
- M10 x 1.25 CL8.8 fasteners: 42 lb-ft (57 N*m)
- M12 x 1.25 CL8.8 fasteners: 76 lb-ft (103 N*m)
- Tighten fasteners to the specified torque:
-
Modify Frame Hole:
- Elongate the rear-most hole in the passenger side frame rail by approximately 1/8” using a drill or file. Paint exposed metal to prevent corrosion.
-
Install U-Bolt:
- Insert the U-bolt (see Figure 4) and slide conical washers over it to act as spacers. Secure washers with tape until installation is complete (see Figure 5).
-
Attach Bolt-on Bracket:
- Install the bolt-on bracket using the remaining fasteners (see Figure 6).
-
Torque U-Bolt and Bracket Fasteners:
- Tighten U-bolt lock nuts to 35 lb-ft (47 Nm) and 3/8-16 GR8 fasteners to 45 lb-ft (61 Nm).
-
Reinstall Suspension Damper:
- Reattach the suspension damper removed in Step 4.
-
Reinstall Splash Guards:
- Reinstall the splash guards removed in Step 1.
Hardware List:
- Qty (2): Hex Bolt M8 x 1.25 x 30mm CL10.9
- Qty (4): Hex Bolt M10 x 1.25 x 30mm CL8.8
- Qty (3): Hex Bolt M12 x 1.25 x 35mm CL8.8
- Qty (12): Conical Toothed Washer – 3/8"
- Qty (3): Conical Toothed Washer – 1/2"
- Qty (1): U-Bolt 3/8"-16 GR5
- Qty (2): Flanged Lock Nuts – 3/8"-16
- Qty (2): Hex Bolt 3/8"-16 x 1-1/4" GR8
- Qty (2): Hex Nuts 3/8"-16 GR5
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
