Trailer Tow Hitch For 09-20 Ford Flex Lincoln MKT Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 09‑20 Ford Flex Lincoln MKT Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75679 63134 63100

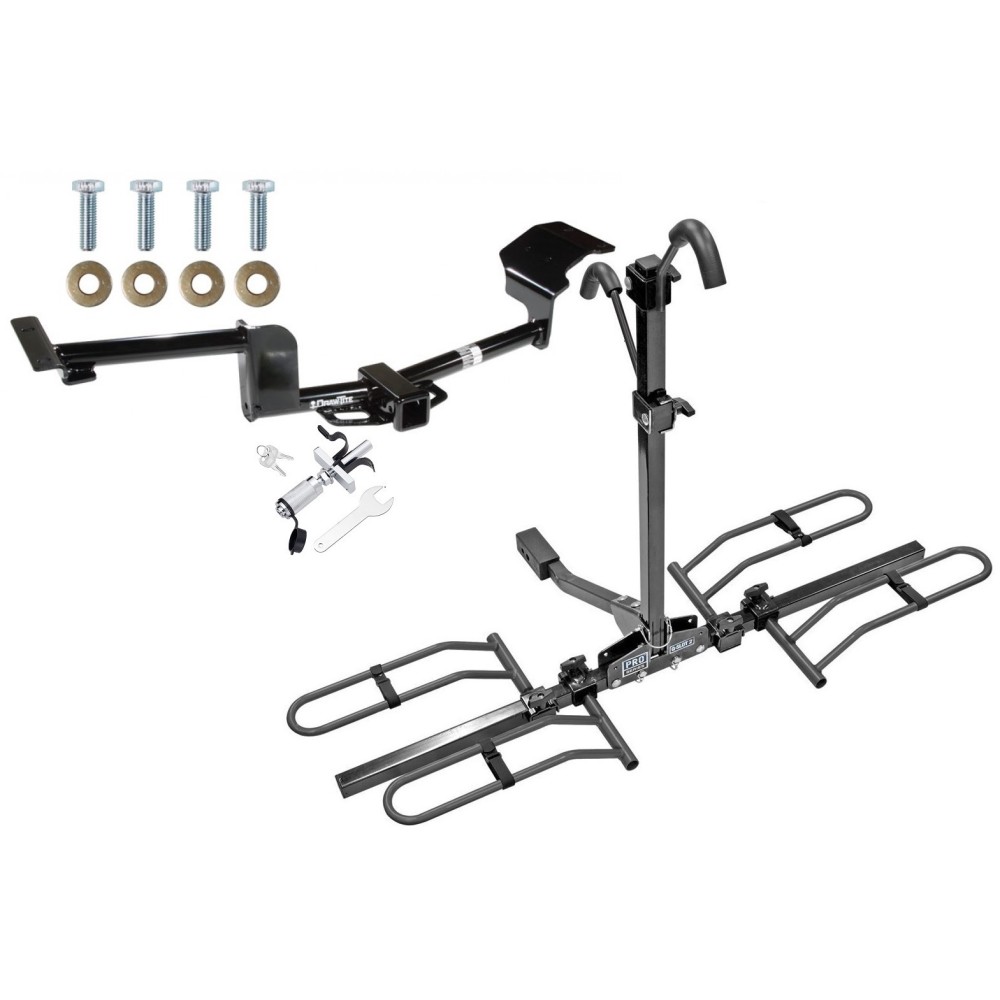

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2009 - 2020 Ford, Flex, All Styles
2010 - 2020 Lincoln, MKT, All Styles

Trailer Hitch Specs:

Part Number	75679
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,000 lbs
Max GTW w/ weight distribution	4,000 lbs
Max Tongue Weight	400 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 09 10 11 12 13 14 15 16 17 18 19 20 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020

See Full Description

$492 ⁰⁶ $787.57 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$787.57 $492 ⁰⁶

Pay in 4 interest-free installments of $123.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $123.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75679 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	4,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	4,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	400 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	400 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75679
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,000 lbs
Max GTW w/ weight distribution	4,000 lbs
Max Tongue Weight	400 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Tags: 75679 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 09-20 , Flex , Lincoln , MKT , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 09 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020

Get Expert Help

Trailer Tow Hitch For 09-20 Ford Flex Lincoln MKT Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Ford Flex, Ford Flex EcoBoost, and Lincoln MKT

Part Numbers:

75679
87571
44636
78189 (U-Haul)

Tools Required:

Wrenches: 18mm, 19mm
6" Ratchet Extension (Ford Flex)
Spray Lubricant or Soapy Water

Wiring Access Location:

SUV1, SUV2

Step-by-Step Instructions:

Lower the Exhaust:
- For single exhaust: Remove two (2) bolts attaching the exhaust hanger bracket to the driver’s side frame rail. Retain the bolts.
- For dual exhaust (EcoBoost and Lincoln MKT models): Repeat the same process on the passenger side.
- Use lubricant to ease removal of the rubber exhaust hangers and detach them using a screwdriver or pry bar.
- Support the exhaust system to prevent it from falling under its own weight.
Position the Hitch:
- Rotate the hitch into position over the exhaust.
- Align the hitch slots with the existing weldnuts on the vehicle frame.
- For models with dual exhaust: Reattach the exhaust hanger brackets beneath the hitch brackets on both sides.
Install Fasteners:
- Secure the hitch using four (4) M12 x 1.75 x 40mm bolts and four (4) conical toothed washers.
- Ensure the fasteners are hand-tightened and correctly aligned.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.
- Use lubricant or soapy water to ease the reinstallation process.

Hardware List:

(4) M12 x 1.75 x 40mm CL8.8 Hex Bolts
(4) 1/2" Conical Toothed Washers

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
