Trailer Tow Hitch For 09-24 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Trailer Tow Hitch For 09-24 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Trailer Tow Hitch For 09-24 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-23 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
Trailer Tow Hitch For 09-24 Audi A4 Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball
$299.35
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 249500 119191 63810

Verify Product Fitment

Applies to this product only

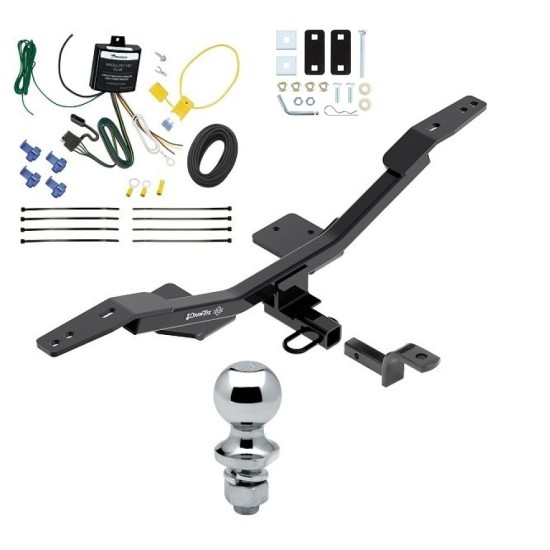

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Draw-Bar w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions




Fits The Following Vehicles:

​2009 - 2024    Audi, A4, 4 Dr. Sedan

Trailer Hitch Specs:

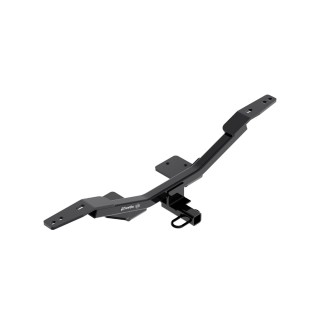

Part Number 249500
Brand Draw-Tite
Finish Black Powdercoat
Class 1
Receiver size opening 1-1/4"
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions



Wiring Kit Specs:

Part Number 119191
Brand Tekonsha
Warranty 1 Year
Installation Instructions



Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube

Write a review

Note: HTML is not translated!
Rating
Bad Good

Be the first to ask a question.

Tags: 249500 , 119191 , 63810 , Draw-Tite , Trailer , Tow , Hitch , 09-24 , Audi , A4 , Sedan , Complete , Package , Wiring , Draw , Bar , and , 1-7/8" , Ball , 09 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024
Compatibility Chart:

Get Expert Help

Install Notes

Installation Instructions for Audi A4 (2009-Current)

Part Numbers:

  • 24950
  • 77950
  • CQT24950

Wiring Access Location:

  • PC3, PC4

Tools Required:

  • Ratchet
  • Torque Wrench
  • Safety Glasses
  • Sockets: 10mm, 3/4"
  • T25 Torx Bit
  • Socket Extension
  • Phillips Screwdriver
  • Utility Knife
  • Silicone Sealant
  • Tape Measure
  • Marker

Specifications:

  • Max Gross Trailer Weight: 2,000 lb. (908 kg)
  • Max Tongue Weight: 200 lb. (90.8 kg)
  • Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

  • Approx. 25 minutes (Professional Installer)

Step-by-Step Instructions:

  1. Remove Bumper Fascia Screws:

    • 2009–2016 models: Remove three (3) T25 Torx screws securing the bumper fascia to the trunk pan.
    • 2017–Current models: Remove two (2) 10mm hex nuts securing the bumper fascia to the trunk pan.
  2. Remove Underbody Panel (If Equipped):

    • For single exhaust models, remove three (3) 10mm hex nuts and one push-type rivet, then temporarily remove the underbody panel.
  3. Remove Spare Tire and Jack Tool Kit:

    • Remove the spare tire and jack tool kit using a 10mm socket.
  4. Remove Drain Plugs:

    • Use a utility knife to carefully cut the caulking around the two rearmost drain plugs in the trunk pan. Remove the plugs and return them to the vehicle owner.
  5. Move Hands-Free Trunk Release Cable:

    • If equipped, temporarily relocate the cable away from the trimming area of the fascia.
  6. Trim Fascia:

    • Use a tape measure, marker, and utility knife to cut a notch approximately 3-1/4" wide x 3" deep, centered on the vehicle.
  7. Install Top Plates and Fasteners:

    • Pull the fascia down gently and install top plates with 4-1/2" carriage bolts on top of the bumper beam extensions. The bolt location may vary by model year.
  8. Install Hitch:

    • Raise the hitch into position, aligning the slots with the carriage bolts, and loosely install four (4) hex flanged locknuts.
  9. Seal Drain Holes:

    • Apply silicone caulk around the drain holes from inside the trunk pan to prevent water and exhaust intrusion.
  10. Install Rear Fasteners:

    • Install two (2) 1-3/4" carriage bolts and spacer blocks from inside the trunk pan through the hitch holes. Loosely install the conical toothed washers and hex nuts.
  11. Tighten Fasteners:

    • Torque all 4-1/2" GR5 carriage bolts to 50 Lb.-Ft. (68 N*M).
    • Torque all 1-3/4" GR5 carriage bolts to 75 Lb.-Ft. (102 N*M).
  12. Reinstall Components:

    • Reinstall the hands-free trunk release cable, underbody panel, and bumper fascia. Secure all screws or hex nuts removed earlier.
    • Reinstall the spare tire and jack tool kit.

Hardware List:

  • (4) Carriage Bolts: 1/2"-13 x 4-1/2" GR5
  • (2) Top Plates
  • (4) Hex Flanged Locknuts: 1/2"-13 Grade G
  • (2) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
  • (2) Spacer Blocks: 1/4" x 1.5" x 3"
  • (2) Conical Toothed Washers: 1/2"
  • (2) Hex Nuts: 1/2"-13 GR5

Safety Notes:

  • Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
  • Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
  • Replace any damaged hitch or ball immediately.
  • Always observe safety precautions and wear eye protection while working beneath the vehicle.
  • Do not cut access or attachment holes with a torch.

Drawbar:

  • Drawbar Kit: 3593
  • Important: The drawbar must be used in the rise position only.

Compliance:

  • This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

  • Frequently check the hitch to ensure all fasteners remain tight.

Installation Instructions for T-Connector Adapter

Part Numbers:

  • 119191

Wiring Access Location:

  • Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.

Tools Required:

  • Drill with a 3/32" drill bit.
  • Phillips head #2 screwdriver.
  • Wire cutters, wire strippers/crimpers.
  • Tester or volt meter.
  • Socket and ratchet set.
  • Double-sided tape (provided).

Step-by-Step Instructions:

Installation of the Module:

  1. Determine the mounting location for the module.

    • Use the provided double-sided tape to secure the module.
    • Ensure the epoxy side of the module faces downward to prevent water buildup.
  2. Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.

  3. Locate a suitable grounding point near the module:

    • Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
    • Clean the grounding area of dirt and rustproofing.

    Caution: Verify what is behind the surface before drilling to avoid damage or injury.

Routing Power to the Battery:

  1. Route the power wire to the vehicle’s positive battery terminal:

    • Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
    • Do not insert the 15-amp fuse yet.

    Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.

Finalizing Installation:

  1. Secure the wiring harness with the provided cable ties to prevent damage or rattling.

    • Avoid areas where wires may be pinched, cut, or melted.
  2. Reconnect the vehicle’s negative (-) battery cable.

  3. Insert the 15-amp fuse into the fuse holder and close the cap.

  4. Test the installation with a test light or trailer to verify functionality.

    • Test each function independently and in combination.

    Specifications:

    • Max. stop/turn light: 2 per side (4.2 amps).
    • Max. tail lights: (7.5 amps).

Hardware List:

  • T-Connector adapter.
  • 15-amp fuse.
  • Fuse holder.
  • Eyelet and self-tapping screw.
  • Double-sided tape.
  • Cable ties.

Safety Notes:

  • Handle all components with care to avoid damage.
  • Ensure all connections are clean and securely fastened.
  • Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

  • Read and follow all vehicle warnings and installation instructions.
  • Use a test light or trailer to confirm proper installation.
  • Consult the vehicle owner’s manual for additional details.
