Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball

Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Reese Trailer Tow Hitch For 10-12 Hyundai Santa Fe Complete Package w/ Wiring Draw Bar Kit and 2" Ball
$293.84
  • Stock: In Stock
  • Brand: Reese
  • Model: 06133 36051 118415 63820

Applies to this product only

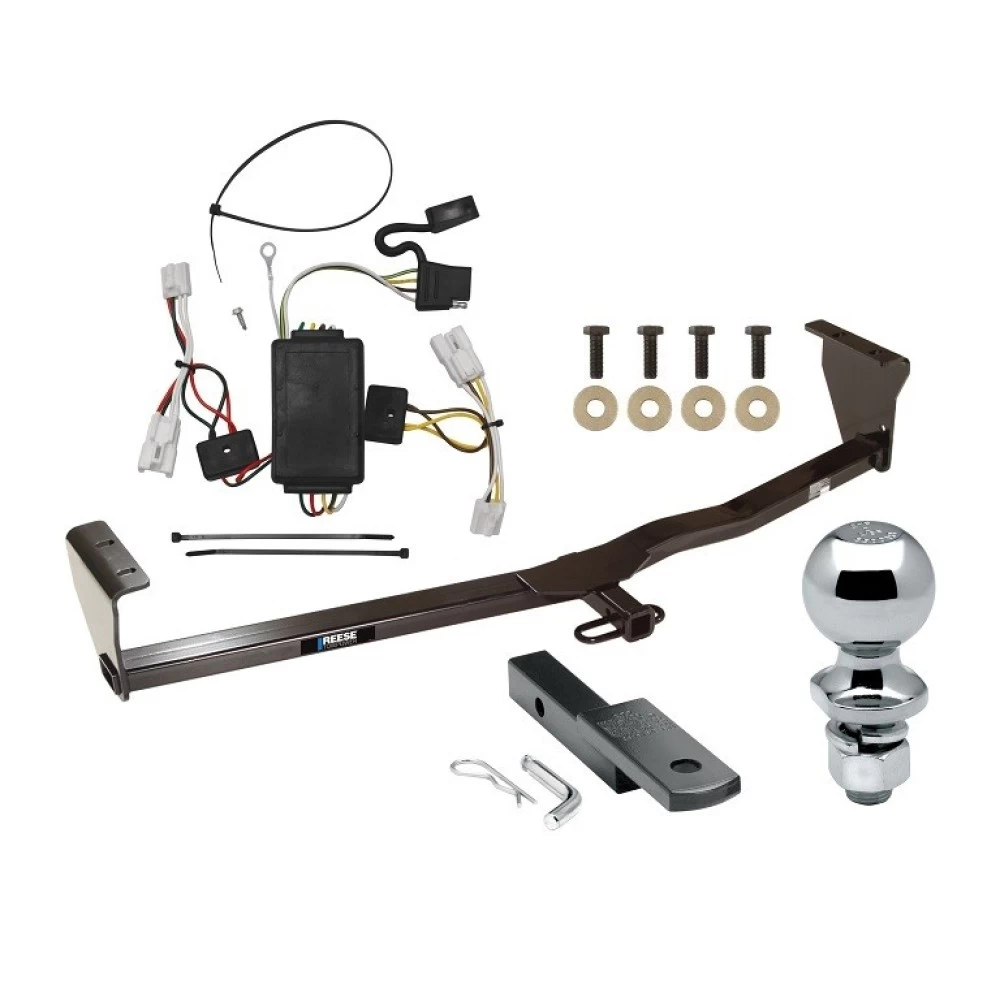

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball

Installation Hardware
Installation Instructions


Fits The Following Vehicles

 2010 - 2012 Hyundai, Santa Fe, All Styles

Trailer Hitch Specs:
Part Number 06133
Brand Reese
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 300 lbs
Warranty Lifetime


Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)


Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 7" From Center of Pin Hole to Center of Ball Hole
Rise 5/8" From inside top of hitch opening
Towing Capacity in Rise Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Drop 1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position 3,500 lb Gross Towing Weight
350 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime


Wiring Kit Specs:
Part Number 118415
Brand Tekonsha
Warranty 1 Year


Hitch Ball Specs:

Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty

Lifetime


Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.


Partial list of fitment years: 10 11 12 2010 2011 2012

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 300 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
