Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover

Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
Trailer Tow Hitch w/ 4 Bike Rack For 10-13 Ford Trasit Connect tilt away adult or child arms fold down carrier w/ Lock and Cover
$404.46
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75678 1393100G 63201 7010

Applies to this product only

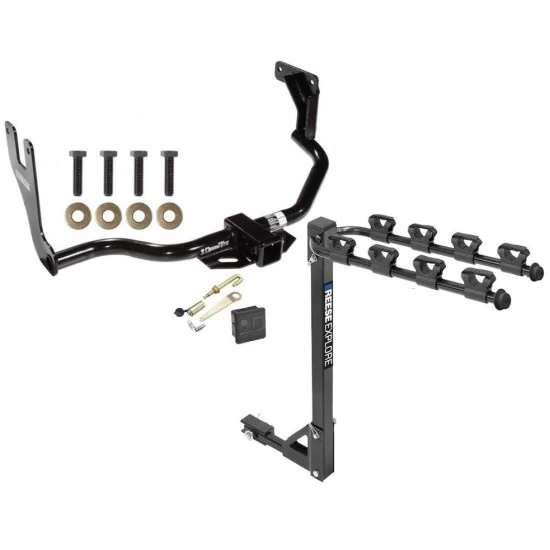

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover

Installation Hardware
Installation Instructions


Fits The Following Vehicles

2010 - 2013    Ford, Transit Connect, All Styles

Trailer Hitch Specs:
Part Number 75678
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution 4000  lbs
Max Tongue Weight 350/400lbs
Warranty Lifetime
Installation Instructions

Bike Rack Specs:
Part Number 1393100G
Brand Reese
Finish Black Powdercoat
Number of Bikes 4
Capacity 120 lbs
Application Fits 1-1/4" and 2" receivers
Weight 28 lbs.
Warranty 90 Day
Installation Instructions

Rubber Hitch Plug
Specs:
Part Number 7010
Fits 2" Receiver
Brand Draw-Tite
Attaches to any 2" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening
Prevents any buildup of dirt and debris
Raised "D" Logo to distinguish the Draw-Tite brand
Warranty 1 Year

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft    STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head    STEP 3:
Secure ball mount or hitch-mounted accessory with locking head


Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 10 11 12 13 2010 2011 2012 2013
Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 3,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit 4,000 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 350 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 400 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
