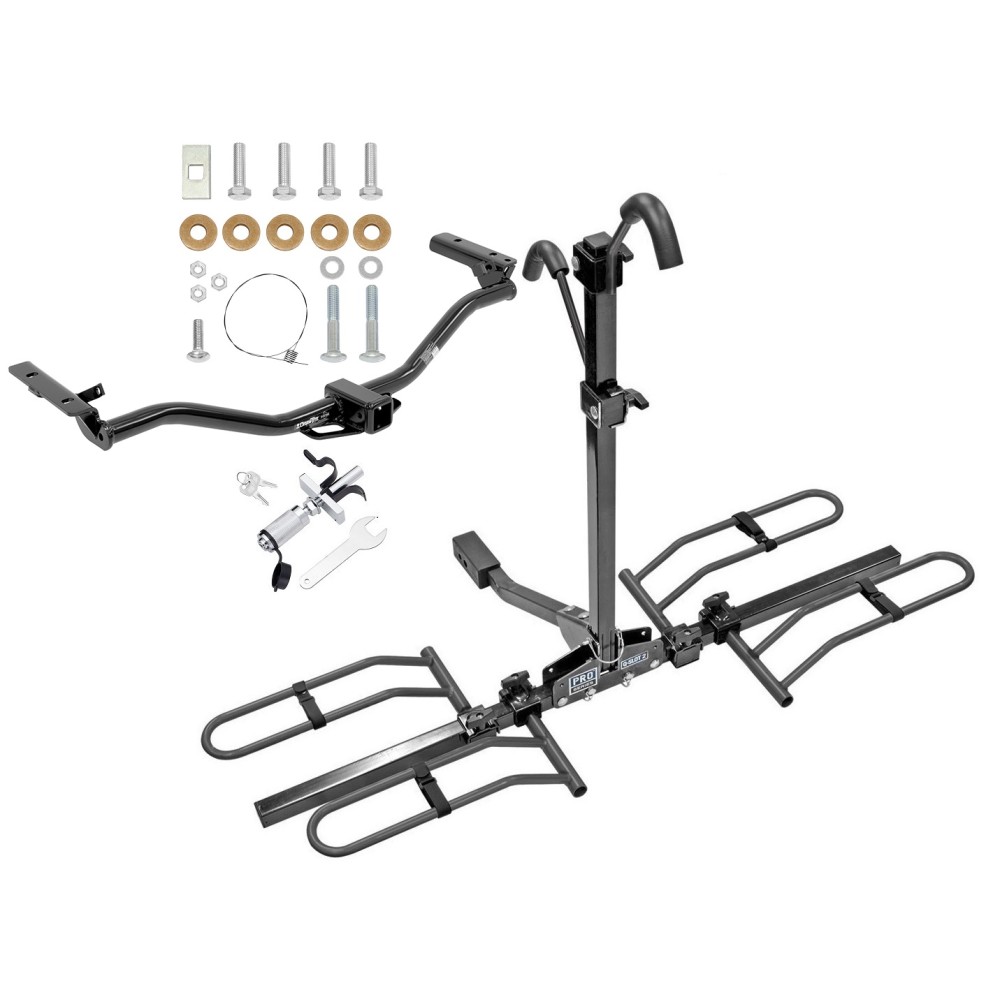

Trailer Tow Hitch For 11‑19 Ford Explorer Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Model: 76034 63134 63100Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2019 Ford, Explorer, All Styles
Trailer Hitch Specs:
| Part Number | 76034 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
$395 16 $636.26 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$636.26 $395 16
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $98.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76034 63134 63100
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2019 Ford, Explorer, All Styles
Trailer Hitch Specs:
| Part Number | 76034 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 11-19 Ford Explorer Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for Trailer Hitch Models #76034 and #84034
Part Numbers:
- 76034
- 84034
Applications:
- Years: 2011-Current
- Make and Models: Ford Explorer
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18 mm, 19 mm, 3/4", 11/16"
- 6" Socket Extension
- Pliers
- Lubricant or Soapy Water (for exhaust removal)
Step-by-Step Instructions:
1. Remove the Tow Hook (If Equipped):
- Tow hook must be permanently removed for hitch installation.
2. Lower Exhaust System:
- At the rubber isolator (3 locations), spray lubricant or soapy water on the metal hanger rod and the rubber isolator for easier removal.
- Remove rubber isolators from mufflers (2) only, to be reinstalled in Step 8. Be careful not to allow the muffler to fall under its own weight.
3. Install Carriage Bolts on Exhaust Hangers:
- Install carriage bolts (7/16-14 × 2.500) into exhaust hangers on the hitch.
- Reinstall rubber isolators removed in Step 2 onto these carriage bolts.
- Secure with flat washers and hex lock nuts. Tighten until the lock washer begins to flatten.
4. Install Carriage Bolt and Spacer into Passenger Frame Rail:
- Using the reverse pull-wire procedure, feed the 1/2"-13 carriage bolt and spacer into the passenger-side frame rail.
- Leave the pull wire attached.
5. Position the Hitch:
- Feed the pull wire through the hole in the passenger-side hitch bracket.
- Raise the hitch into position over the exhaust and align it with the existing weldnuts in the frame rail and the 1/2"-13 carriage bolt installed in Step 4.
- Secure with M12 hex bolts and conical washers (teeth side against the hitch).
6. Install Hardware on Carriage Bolt:
- Remove the pull wire and install a conical washer and hex nut on the carriage bolt.
7. Torque Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
8. Reinstall the Exhaust System:
- Raise the exhaust back into position (3 locations).
- Use lubricant or soapy water as needed for reinstallation.
Hardware List:
- 4 × Hex Bolt (M12 × 1.75 × 40 mm, CL8.8)
- 5 × Conical Washer (1/2")
- 1 × Carriage Bolt (1/2"-13 × 1.50, GR5)
- 1 × Spacer (1/4" × 1.00" × 2.00")
- 1 × Hex Nut (1/2"-13)
- 2 × Carriage Bolt (7/16"-14 × 2.500, GR5)
- 2 × Flat Washer (7/16")
- 2 × Hex Lock Nut (7/16"-14)
- 1 × Pull Wire (1/2"-13)
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Do not use a torch to cut access or attachment holes.
- Periodically inspect all fasteners to ensure tightness.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Max Gross Trailer Weight (Weight Distributing): 5,000 lbs (2,270 kg)
- Max Tongue Weight (Weight Distributing): 500 lbs (227 kg)
- Installation Time: Approximately 45 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This hitch comes with a limited warranty covering defects in material and workmanship for the duration specified. For complete warranty instructions, please download the full installation PDF.
