Trailer Tow Hitch For 11-19 Ford Fiesta 5 Dr. Hatchback Platform Style 2 Bike Rack w/ Hitch Lock and Cover

Trailer Tow Hitch For 11‑19 Ford Fiesta 5 Dr. Hatchback Platform Style 2 Bike Rack w/ Hitch Lock and Cover

Model: 24961 63134 580407 2211

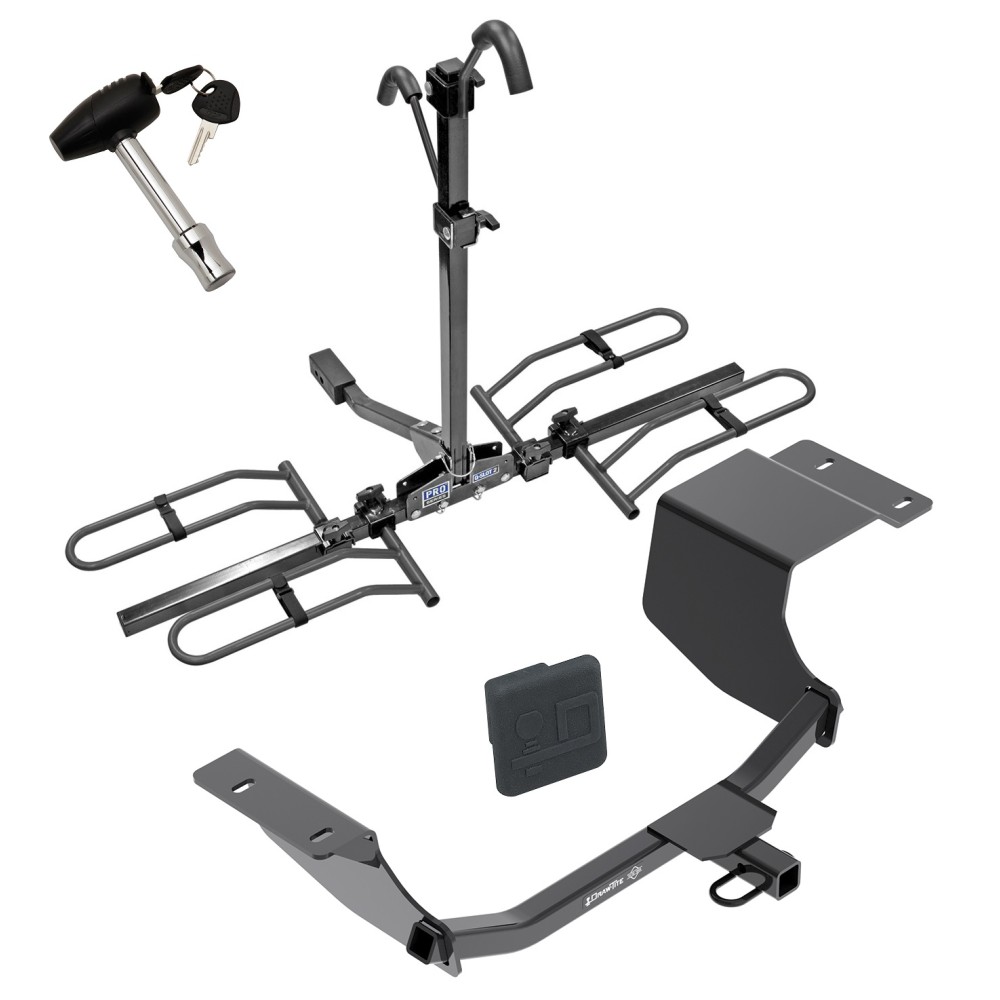

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2011 - 2019 Ford, Fiesta, 5 Dr. Hatchback

Trailer Hitch Specs:

Part Number	24961
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019

See Full Description

$374 ¹⁸ $601.20 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$601.20 $374 ¹⁸

Pay in 4 interest-free installments of $93.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $93.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 24961 63134 580407 2211
Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	24961
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 24961 , 63134 , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 11-19 , Fiesta , 5 , Dr. , Hatchback , Platform , Style , 2 , Bike , Rack , Hitch , Lock , and , Cover , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019

Get Expert Help

Trailer Tow Hitch For 11-19 Ford Fiesta 5 Dr. Hatchback Platform Style 2 Bike Rack w/ Hitch Lock and Cover Install Notes

Installation Instructions for Ford Fiesta Hatchback (2011-Current)

Part Numbers:

24961
77961
CQT24961

Tools Required:

Exhaust Removal Pliers
Tin Snips
6” Socket Extension
Sockets: 10mm, 11/16”, 3/4”
Torque Wrench
Ratchet
Safety Glasses
Soapy Water or Lubricant

Step-by-Step Instructions:

Lower exhaust and trim heat shield:
- Remove 2 rubber isolator hangers from the hanger rods supporting the muffler.
- Use lubricant or soapy water to ease removal of the rubber isolators.
- If necessary, remove nuts from the muffler heat shield using a 10mm socket.
- Measure 1” rearward from the middle attachment hole on the heat shield, mark a perpendicular line, and cut off the rear portion.
- Reinstall the trimmed heat shield using the two remaining attachment holes.
Insert fasteners:
- Use the reverse fishwire method to insert 7/16” carriage bolts and special washers into the vehicle frame.
- Repeat for both sides of the vehicle.
Raise hitch into position:
- Carefully position the hitch over the muffler and align it with the bolts installed in Step 2.
- Ensure bolts remain in place by leaving fishwires attached.
- Secure the hitch with 7/16” conical washers and 7/16” nuts without fully tightening.
Install handle nuts:
- Bend handle nuts as required to insert them through access holes in the frame and align them with the slots in the hitch.
- Attach 1/2” conical washers and 1/2” bolts.
- Tighten all fasteners to the specified torque and raise the muffler back into place.
Tighten fasteners:
- Use a torque wrench to tighten:
  - 1/2”-13 Gr.5 bolts/nuts to 50 lb-ft (68 N*m).
  - 7/16”-14 Gr.5 bolts/nuts to 50 lb-ft (68 N*m).

Hardware List:

(2) Carriage Bolt, 7/16”-14 x 1.25” GR5
(2) Special Washer, 3/16” x 1” x 2” (Part No. 1204)
(2) Conical Washer, 7/16” (Part No. 01292007)
(2) Hex Nut, 7/16”-14 GR2
(2) Hex Bolt, 1/2”-13 x 1.25” GR5
(2) Conical Washer, 1/2” (Part No. 01292008)
(2) Handle Nut, 1/2”-13 GR5 (Part No. 1332)
(2) Fish Wire, 7/16” (Part No. 5481)

Safety Notes:

Always wear safety glasses during installation.
Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
Do not cut attachment holes using a torch.
If the hitch or ball is damaged, remove and replace it immediately.
Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
Do not exceed the vehicle manufacturer’s towing ratings:
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (91 kg)

Specifications:

Installation Time: 30 minutes
Complies with SAE J684 and VESC Regulation V-5 standards.
