Name: Reese Trailer Tow Hitch For 11-20 Toyota Sienna Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Brand: Reese
Price: 312.65 USD
Availability: InStock

Reese Trailer Tow Hitch For 11-20 Toyota Sienna Class 2 Complete Package w/ Wiring Draw Bar Kit and 2" Ball

0 reviews - Write a review

$312.65

Stock: In Stock
Brand: Reese
Model: 06137 36051 118498 63820

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

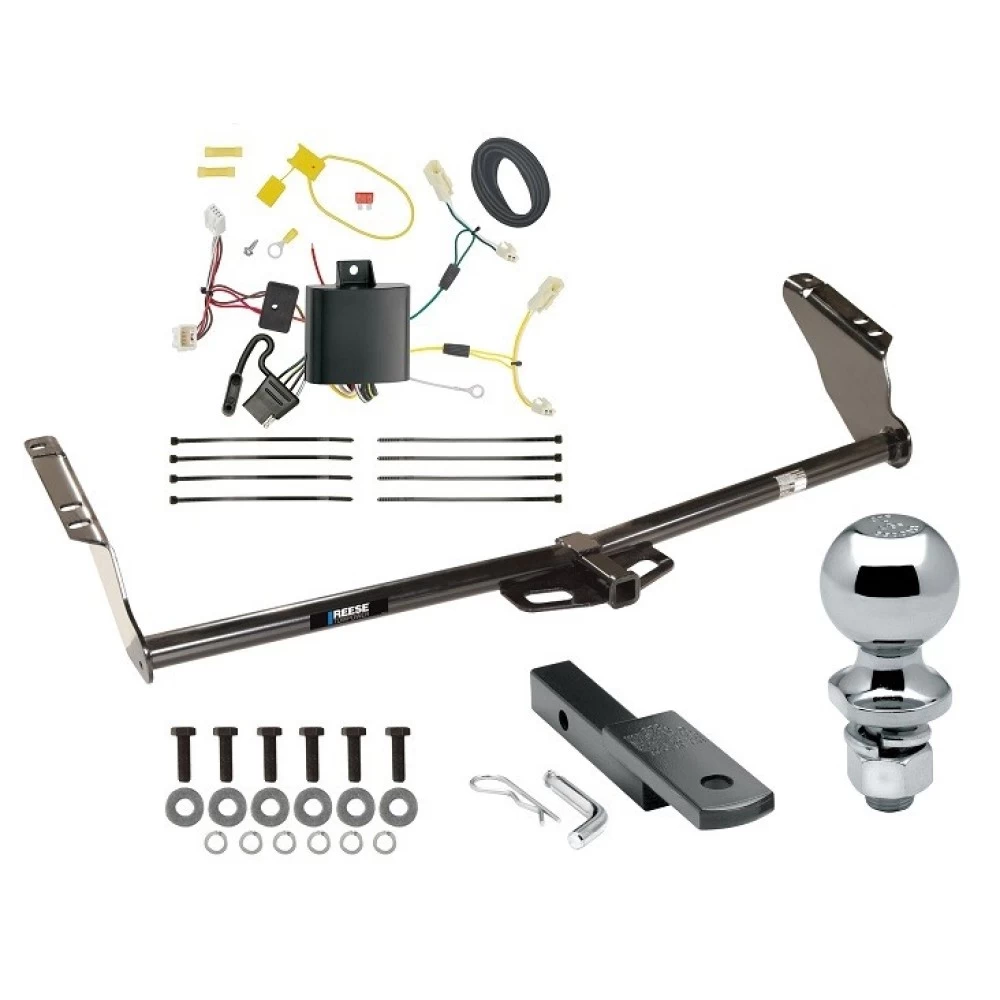

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2011 - 2014 Toyota, Sienna, All Styles
2015 - 2020 Toyota, Sienna, SE ONLY

Trailer Hitch Specs:

Part Number	06137
Brand	Reese
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	7" From Center of Pin Hole to Center of Ball Hole
Rise	5/8" From inside top of hitch opening
Towing Capacity in Rise Position	3,500 lb Gross Towing Weight 350 lb Tongue Weight
Drop	1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position	3,500 lb Gross Towing Weight 350 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	118498
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Round Tube

Be the first to ask a question.
