Trailer Tow Hitch For 12-16 Honda CR-V Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover

Trailer Tow Hitch For 12‑16 Honda CR‑V Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover

Model: 36520 63134 580407 2211

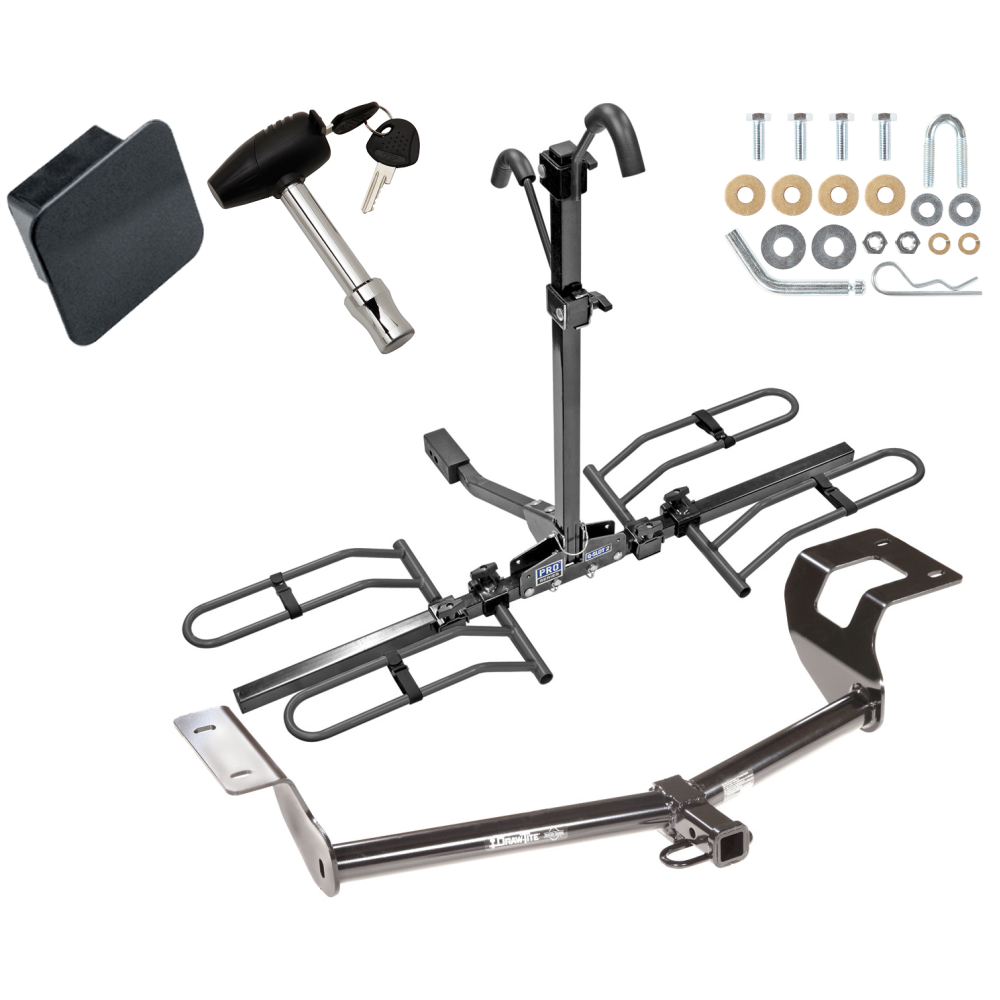

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2012 - 2016 Honda, CR-V, All Styles

Trailer Hitch Specs:

Part Number	36520
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 12 13 14 15 16 2012 2013 2014 2015 2016

See Full Description

$374 ¹⁹ $601.20 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$601.20 $374 ¹⁹

Pay in 4 interest-free installments of $93.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $93.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 36520 63134 580407 2211
Includes: Class 2 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	36520
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Rubber Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	35 lbs.
Warranty	1 Year Warranty
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 36520 , 63134 , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 12-16 , Honda , CR-V , Class , 2 , Platform , Style , 2 , Bike , Rack , Hitch , Lock , and , Cover , 12 , 13 , 14 , 15 , 16 , 2012 , 2013 , 2014 , 2015 , 2016

Get Expert Help

Trailer Tow Hitch For 12-16 Honda CR-V Class 2 Platform Style 2 Bike Rack Hitch Lock and Cover Install Notes

Installation Instructions for Honda CR-V

Part Numbers:

36520
90089
06144

Wiring Access Location:

SUV3

Tools Required:

Wrenches: 10mm, 17mm, 11/16"
Small Phillips Head Screwdriver
Tape, Utility Knife, Tape Measure, Marking Pencil
Lubricant or Soapy Water

Step-by-Step Instructions:

Remove Appearance Panel:
- Remove the driver-side appearance panel by removing:
  - (5) Plastic rivets
  - (3) Hex nuts
  - (2) Phillips head screws located in the wheel well behind the driver’s side rear tire.
- Trim the panel and reinstall it after hitch installation.
Clear Threads in Weld Nuts:
- Run the M10 hex bolts into the existing weld nuts to clear any debris or obstructions.
Lower Exhaust:
- Remove the rubber isolators from the muffler hangers:
  - Remove the outside isolator first, then the inside isolator.
  - Apply lubricant or soapy water to ease removal.
Prepare Weld Nut Locations:
- Tape the flat washers to the rearward weld nut location on both frame rails.
Raise Hitch into Position:
- Lift the hitch into position, ensuring alignment with the frame rails.
Install Fasteners:
- Install the M10 hex bolts and conical washers into the weld nuts as shown.
- Install the 3/8" U-bolt through the vehicle tie-down hook and the tie-down hook attachment on the hitch receiver.
- Secure with flat washers, lock washers, and hex nuts.
Tighten Fasteners:
- Tighten all fasteners to the specified torque:
  - M10 CL8.8 bolts: 38 ft-lb (52 N*m)
  - 3/8"-16 GR5 U-bolt nuts: 30 ft-lb (41 N*m)
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.
Reinstall Appearance Panel:
- Reinstall the trimmed driver-side appearance panel.

Torque Specifications:

Tighten all 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).
Tighten all M10 CL8.8 fasteners to 38 ft-lb (52 N*m).

Hardware List:

(4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
(4) 7/16" Conical Washers
(1) 3/8"-16 U-Bolt
(2) 3/8" Lock Washers
(2) 3/8" Flat Washers
(2) 1/2" Flat Washers
(2) 3/8" Hex Nuts

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath a vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.
