Trailer Tow Hitch For 13-19 Ford Escape Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 13‑19 Ford Escape Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 75758 63134 63100

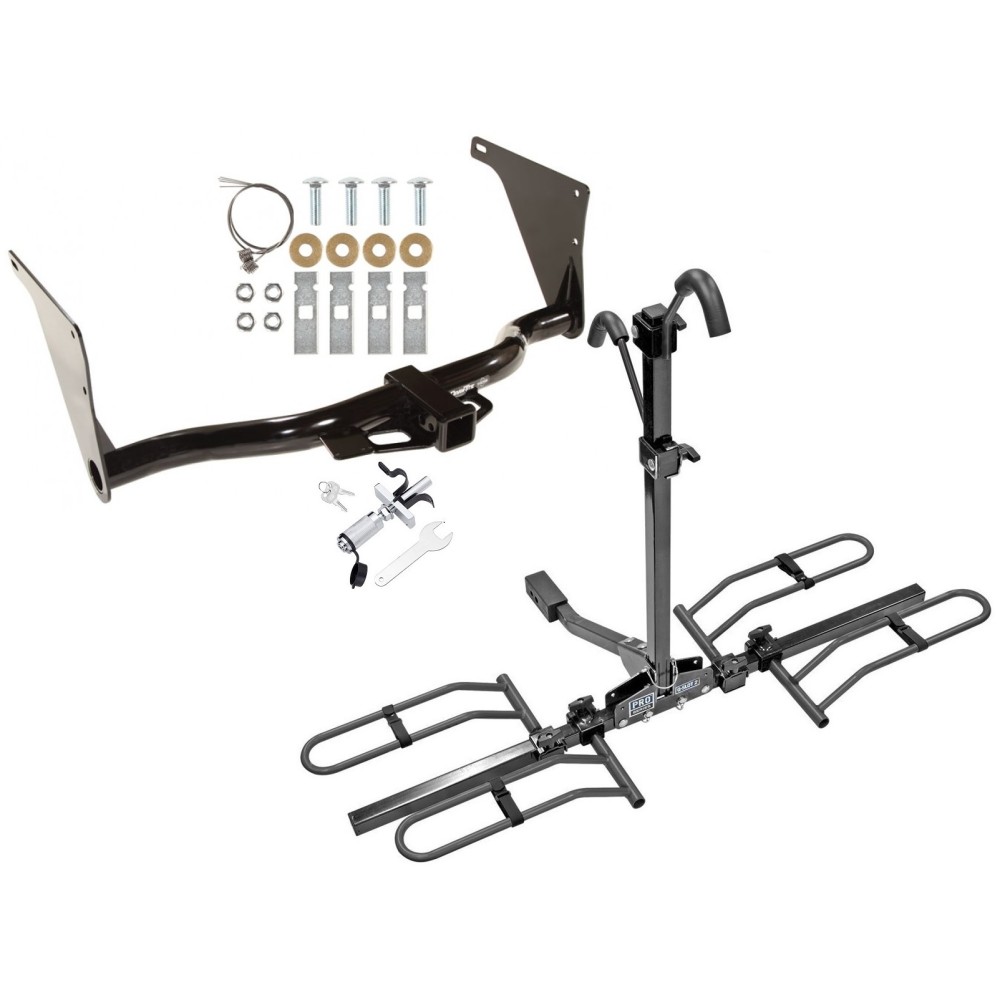

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2013 - 2019 Ford, Escape, All Styles

Trailer Hitch Specs:

Part Number	75758
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	5,000 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019

See Full Description

$455 ⁰⁴ $729.79 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$729.79 $455 ⁰⁴

Pay in 4 interest-free installments of $113.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $113.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75758 63134 63100
Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	4,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit	5,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	675 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	675 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75758
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4,500 lbs
Max GTW w/ weight distribution	5,000 lbs
Max Tongue Weight	675/675 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 75758 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 13-19 , Escape , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019

Get Expert Help

Trailer Tow Hitch For 13-19 Ford Escape Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Ford Escape

Part Numbers:

75758
87627
44681

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrenches: 11/16"
Other Tools: Pull Wires (provided)

Step-by-Step Instructions:

Prepare fasteners:
- Feed spacers and carriage bolts into position using the provided pull wires on both frame rails. Leave the pull wires attached.
- Note: It is easier to insert the bolts and spacers separately into the frame rail (see Figure 3).
Position fasteners:
- Push the fasteners back into the frame rail, leaving the pull wires and extra wire protruding.
Raise hitch into position:
- Position the hitch between the frame rails. Feed the pull wires through adjacent holes in the hitch.
- On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail (not shown in diagram).
Secure fasteners:
- Pull the fasteners back through the access holes and the hitch.
- Remove the pull wires and attach conical washers and nuts. Be careful not to push the fasteners back into the frame rail.
Tighten fasteners:
- Torque all fasteners to the specified value using a wrench.

Hardware List:

Qty (4): Carriage Bolt – 7/16-14 x 1.50 GR5
Qty (4): Spacer – 1/4 x 7/8 x 3.00
Qty (4): Conical Washer – 7/16"
Qty (4): Hex Nut – 7/16-14 GR2
Qty (4): Pull Wire – 7/16

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 675 lbs (306 kg)
Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)

Manufacturer Notes:

Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

For vehicles equipped with the “Hands-Free Lift Gate” option, the sensor will only work in a limited area (see Figure 2).
If the spacer and bolt head do not fit through the access hole, modify the hole using a file or by prying it open as illustrated.
