Trailer Tow Hitch w/ 4 Bike Rack For 14-19 Nissan Versa Note tilt away adult or child arms fold down carrier w/ Lock and Cover

Trailer Tow Hitch w/ 4 Bike Rack For 14‑19 Nissan Versa Note tilt away adult or child arms fold down carrier w/ Lock and Cover

Model: 24909 1393100G 580407 2211

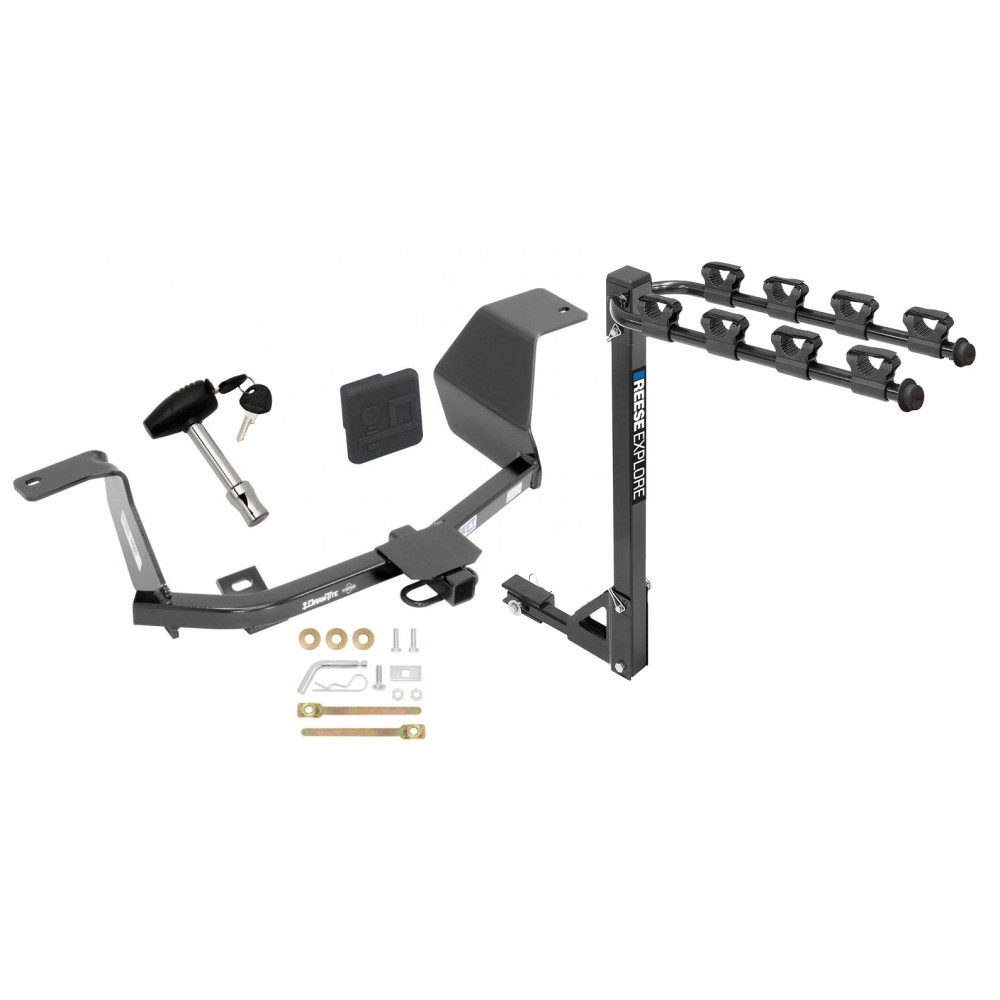

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2014 - 2019 Nissan, Versa Note, All Styles

Trailer Hitch Specs:

Part Number	24909
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-1-4" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019

See Full Description

$307 ⁴⁸ $470.69 35% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$470.69 $307 ⁴⁸

Pay in 4 interest-free installments of $76.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $76.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 24909 1393100G 580407 2211
Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	Yes
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	24909
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	1393100G
Brand	Reese
Finish	Black Powdercoat
Number of Bikes	4
Capacity	120 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	28 lbs.
Warranty	90 Day
Installation Instructions

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-1-4" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 24909 , 1393100G , 580407 , 2211 , Draw-Tite , Trailer , Tow , Hitch , 4 , Bike , Rack , 14-19 , Nissan , Versa , Note , tilt , away , adult , or , child , arms , fold , down , carrier , Lock , and , Cover , 14 , 15 , 16 , 17 , 18 , 19 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019

Get Expert Help

Trailer Tow Hitch w/ 4 Bike Rack For 14-19 Nissan Versa Note tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes

Installation Instructions for Nissan Versa Note

Part Numbers:

24909
60340
77296

Wiring Access Location:

SUV3, SUV4

Tools Required:

Galvanic Isolators (provided)
Lubricant or Soapy Water
Tin Snips
Wrenches: M10, 11/16”, 3/4”
Drill Bits: 1” Hole Saw (driver’s side only)

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Exhaust:
- Detach the exhaust from the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to assist removal.
Trim Heat Shield:
- Remove the rearward M6 bolt securing the heat shield and return it to the vehicle owner.
- Trim the heat shield to allow access to the passenger-side frame rail hole. Refer to Figure 3.
Remove Charcoal Canister:
- Remove the M8 bolt securing the black box (charcoal canister) to the frame. Slide the box forward to remove.
Drill Access Holes:
- Using a 1” hole saw, drill access holes into the driver and passenger-side frame rails aligned with the existing holes. This will allow insertion of the handle nuts. Refer to Figure 2.
Install Handle Nuts:
- Insert the 1/2” handle nuts into the frame through the drilled holes.
Install Tie-Down Hook Hardware:
- Attach the 1/2” carriage bolt and spacer to the tie-down hook as shown in Figure 1.
Apply Galvanic Isolators:
- Attach the clear galvanic isolators to the passenger-side bracket. Refer to Figure 1.
Position Hitch:
- Raise the hitch into position. Install a conical washer and hex nut on the tie-down attachment but do not fully tighten at this stage.
Attach Remaining Fasteners:
- Feed the 1/2” fasteners through the slots on both sides of the hitch and install as shown in Figure 1.
- Note: On the passenger side, sandwich the heat shield between the frame rail and the hitch.
Center Hitch:
- Align and center the hitch on the vehicle.
Tighten Fasteners:
- Torque all 1/2”-13 GR5 fasteners with handle nuts to 50 Lb.-Ft. (68 N*M).
- Torque all other 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Reinstall Charcoal Canister:
- Reattach the charcoal canister removed in Step 3.
Reinstall Exhaust:
- Reattach the exhaust to the rubber isolator.

Hardware List:

(1) Carriage Bolt: 1/2”-13 x 2.00” GR5
(2) Handle Nuts: 1/2”-13
(1) Spacer: 1/4” x 1.50” x 3.00”
(3) Conical Washers: 1/2”
(1) Hex Nut: 1/2”-13
(2) Galvanic Isolators

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always observe safety precautions and wear eye protection when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Drawbar:

Drawbar Kit: 3592
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

Check the hitch frequently to ensure all fasteners remain tight.
