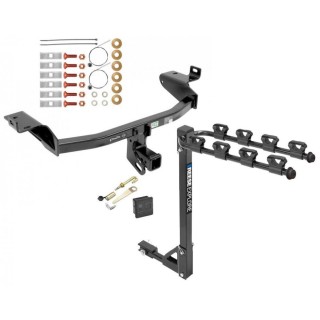

Trailer Tow Hitch w/ 4 Bike Rack For 14‑23 Jeep Cherokee tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 75998 1393100G 63201 7010Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2023 Jeep, Cherokee, All Styles
Trailer Hitch Specs:
Bike Rack Specs:
Part Number | 1393100G |
Brand | Reese |
Finish | Black Powdercoat |
Number of Bikes | 4 |
Capacity | 120 lbs |
Application | Fits 1-1/4" and 2" receivers |
Weight | 28 lbs. |
Warranty | 90 Day |
Installation Instructions | ![]() |
Rubber Hitch Plug Specs:
Part Number | 7010 |
Fits | 2" Receiver |
Brand | Draw-Tite |
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
$379 80 $612.30 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$612.30 $379 80
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $94.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75998 1393100G 63201 7010
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 5,000 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 500 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2023 Jeep, Cherokee, All Styles
Trailer Hitch Specs:
Bike Rack Specs:
Part Number | 1393100G |
Brand | Reese |
Finish | Black Powdercoat |
Number of Bikes | 4 |
Capacity | 120 lbs |
Application | Fits 1-1/4" and 2" receivers |
Weight | 28 lbs. |
Warranty | 90 Day |
Installation Instructions | ![]() |
Rubber Hitch Plug Specs:
Part Number | 7010 |
Fits | 2" Receiver |
Brand | Draw-Tite |
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 14-23 Jeep Cherokee tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Hyundai Palisade (2020-Present)
Part Numbers:
- 75998
- 44764
- CQT75998
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 17mm, 19mm
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
- Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.
-
Position the Hitch:
- Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.
-
Install Fasteners:
- Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
- Ensure the toothed side of the washers faces the hitch.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).
-
Verify Installation:
- Double-check that all bolts are securely tightened, and the hitch is properly aligned.
Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2" Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 30 minutes for a professional installer.
- If you encounter difficulty installing, consult a professional or contact customer support.
