Trailer Tow Hitch For 14-19 Toyota Highlander Complete Package w/ Wiring and 2" Ball
$351.23
- Stock: In Stock
- Brand: Draw-Tite
- Model: 76336 118449 23 63845

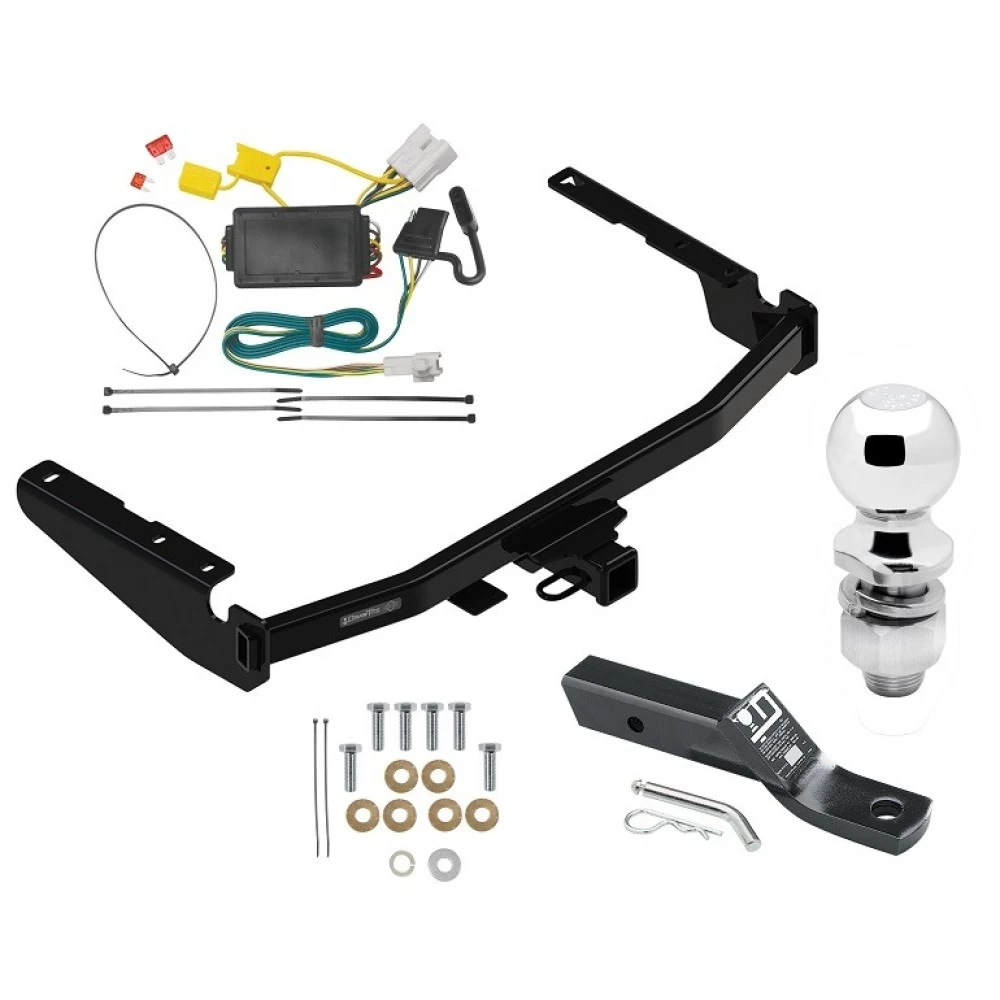

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball

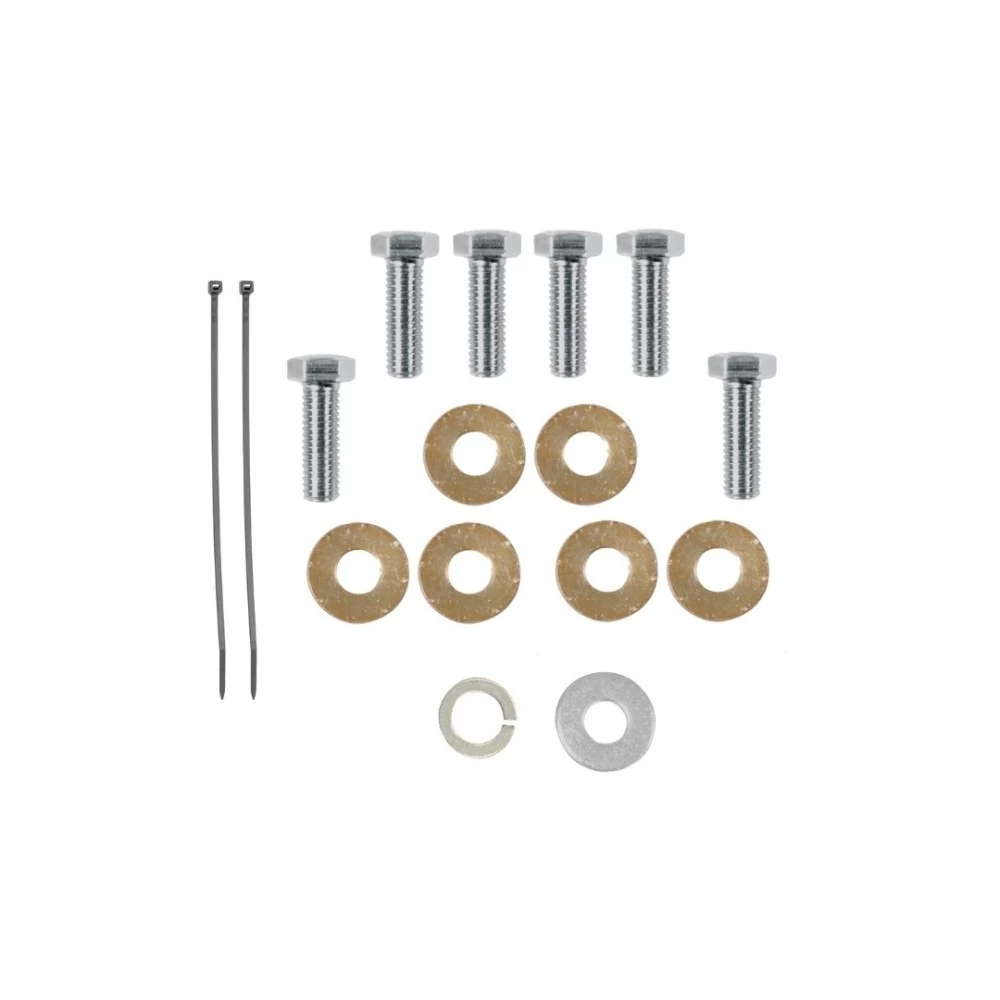

Installation Hardware
Installation Instructions
Fits The Following Vehicles
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2019 Toyota, Highlander, Except with Twin-Tip Exhaust
2019 - 2019 Toyota, Highlander, excluding XSE
2019 - 2019 Toyota, Highlander, excluding XSE
Trailer Hitch Specs:
| Part Number | 76336 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118449 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
